Wire Routing and Connector Locations
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

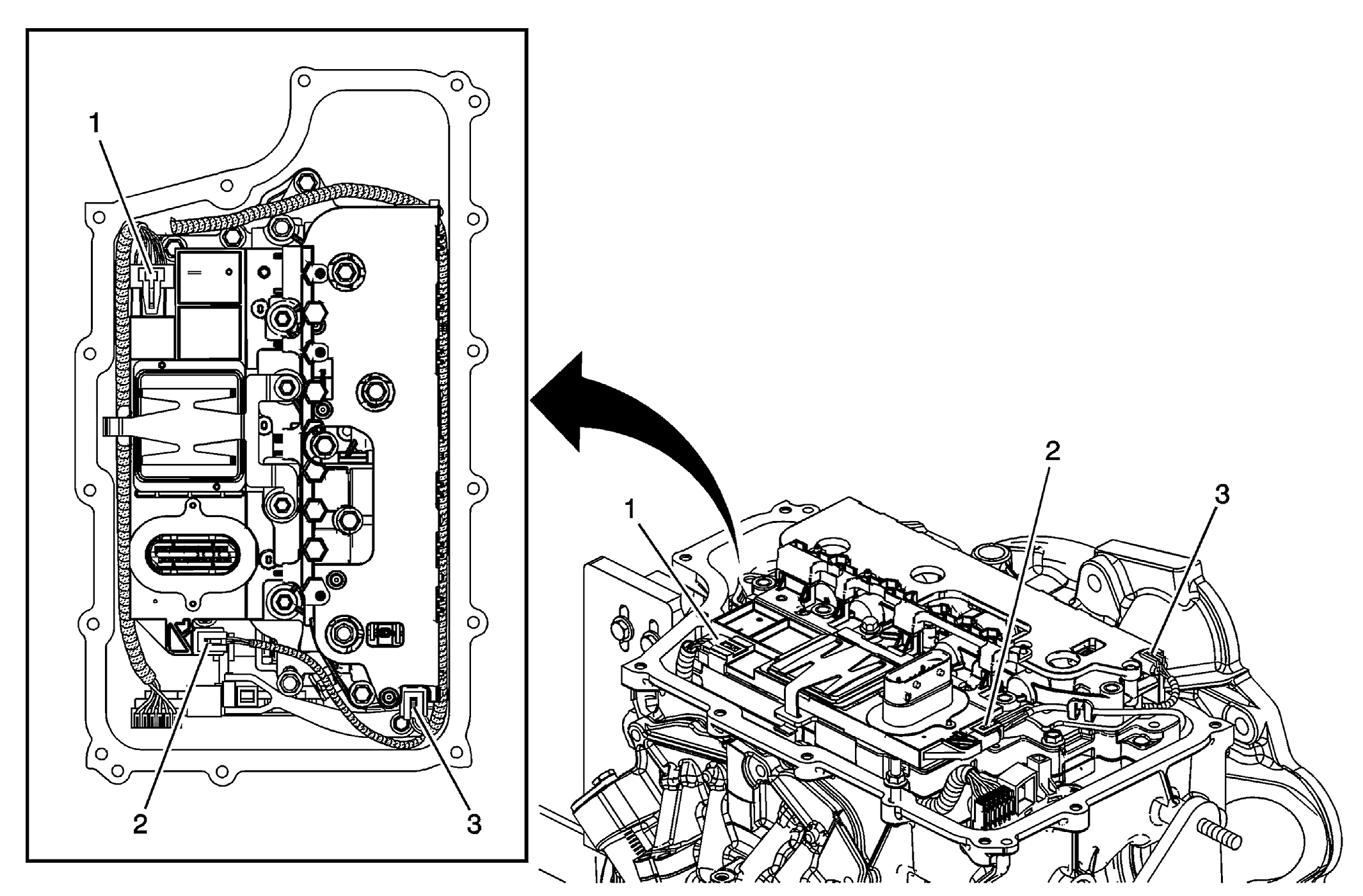

Courtesy of GENERAL MOTORS CORP. Wire Routing and Connector Locations
| Callout |
Component Name |
Preliminary Procedure:
Route all wires as shown. |
| 1 |
Shift Position Switch Connector |
| 2 |
Output Speed Sensor Connector |
| 3 |
Input Speed Sensor Connector |
