Control Valve Body Bolts Installation
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

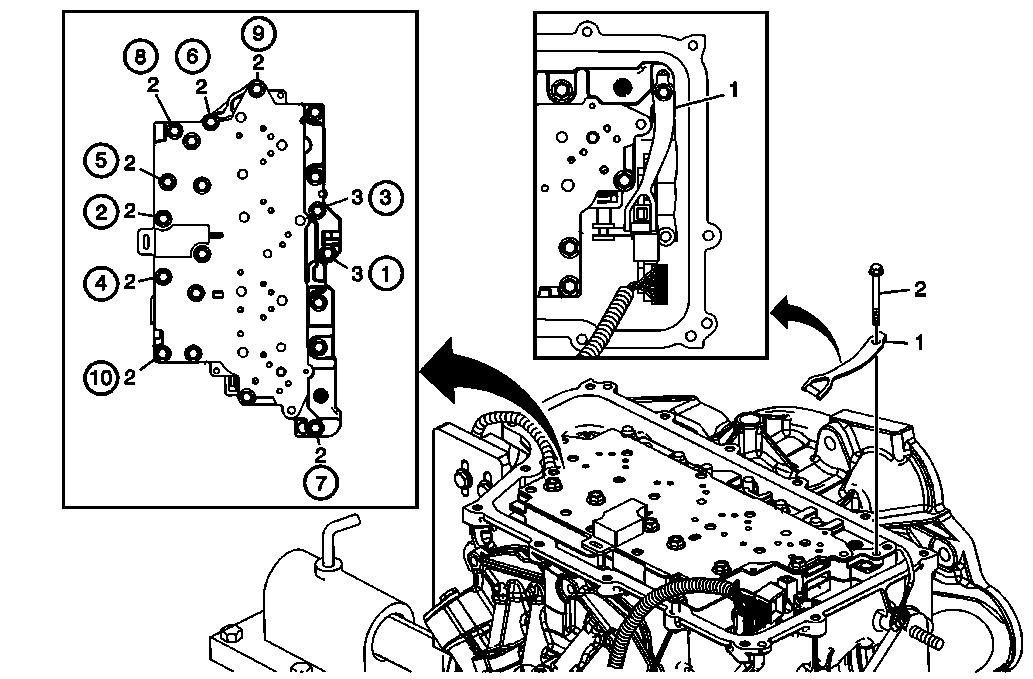

Control Valve Body Bolts Installation
| Callout | Component Name |
|---|---|
| 1 | Manual Shaft Detent Assembly Tip: Ensure proper alignment of the detent assembly to the detent lever assembly with position switch while tightening the bolt. The detent assembly can move and hit the valve body assembly that could cause improper engagement with the detent lever assembly. |
| 2 | Control Valve Body Bolt M6 x 65 (Qty: 8)
CAUTION:
Refer to Fastener Caution
. Procedure: Tighten in sequence. Tighten: 12 N.m (9 lb ft). |
| 3 | Control Valve Body Bolt M6 x 55 (Qty: 2) Procedure: Tighten in sequence. Tighten: 12 N.m (9 lb ft). |
