Control Solenoid (w/Body and TCM) Valve Assembly Installation

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

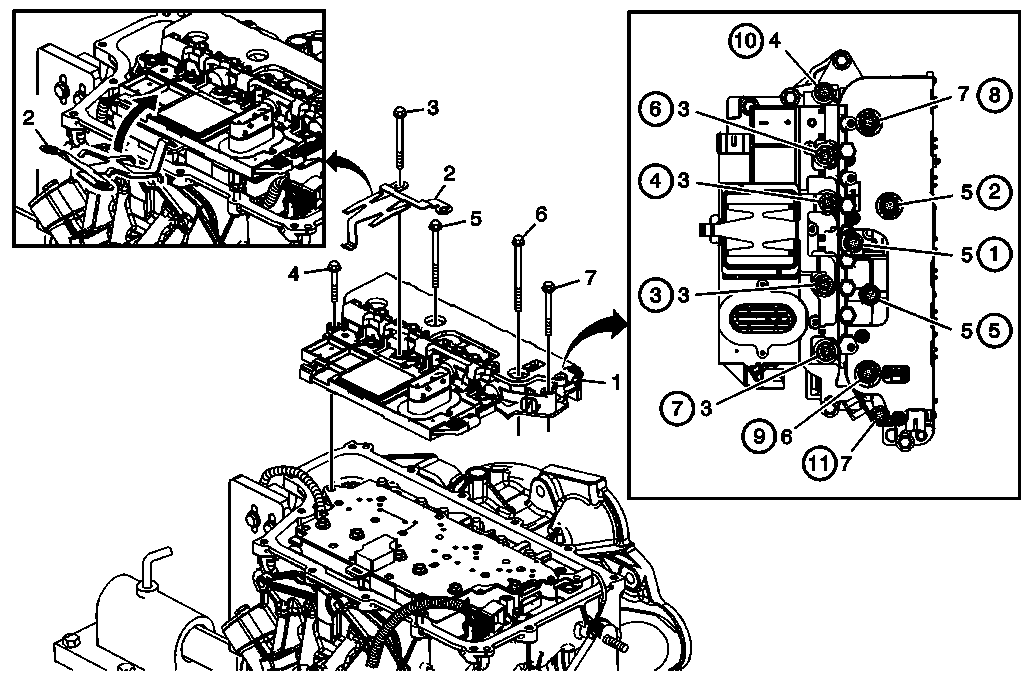

Fig 1: Identifying Control Solenoid (w/Body & TCM) Valve Assembly

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
CAUTION: Refer to Fastener Caution . Preliminary Procedure: Install all bolts before tightening, then tighten in sequence to 12 N.m (9 lb ft).
1	Control Solenoid (w/Body and TCM) Valve Assembly CAUTION: Do not drop the control solenoid with body and transmission control module (TCM) valve assembly. Internal damage can occur if the control solenoid with body and TCM valve assembly is dropped. DO NOT reuse the control solenoid with body and TCM valve assembly if it is dropped.
2	Control Solenoid Valve Spring Tip: If the control solenoid spring is missing or improperly installed, the TCM may overheat causing the TCM to shut down. The transmission will default to 3rd or 5th gear. Insert tab of spring into slot on spacer plate, then rotate into position.
3	Control Valve Body Bolt M6 x 80 (Qty: 4)
4	Control Valve Body Bolt M6 x 55 (Qty: 1)
5	Control Valve Body Bolt M6 x 95 (Qty: 3)
6	Control Valve Body Bolt M6 x 42 (Qty: 1)
7	Control Valve Body Bolt M6 x 65 (Qty: 2)
