Case Cover Assembly Installation

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

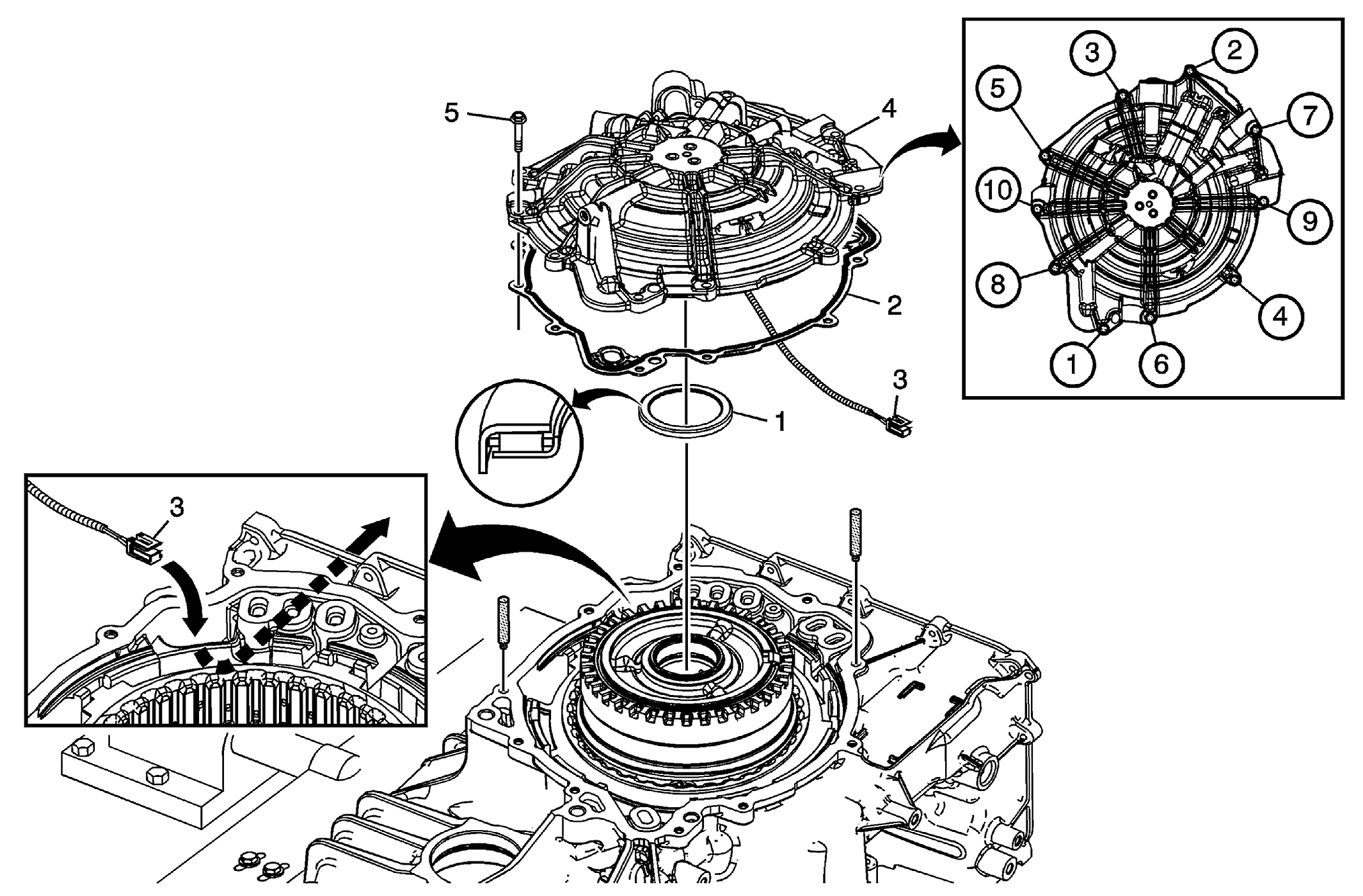

Fig 1: Identifying Case Cover Assembly Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Input Shaft Thrust Bearing Tip: Note location of the orientation lip on bearing. All thrust bearings can only be assembled one way.
2	A/Trans Case Cover Gasket
3	Input Speed Sensor Wire Harness Tip: Route the input speed sensor wire harness through the case passage.
4	A/Trans Case Cover Assembly Procedure Use guide pins to install the case cover assembly to prevent damage to the input shaft thrust bearing. Pull the input speed sensor wire harness through the case passage while lowering the cover assembly onto the case. Special Tools: 39068: Guide Pins For equivalent regional tools, refer to Special Tools .
5	A/Trans Case Cover Assembly Bolt M6 x 30 (Qty: 10) CAUTION: Refer to Fastener Caution . Procedure: Tighten in sequence shown. Tighten: 12 N.m (106 lb in)
