1-2-3-4 Clutch Plates and Low Reverse Clutch Installation

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

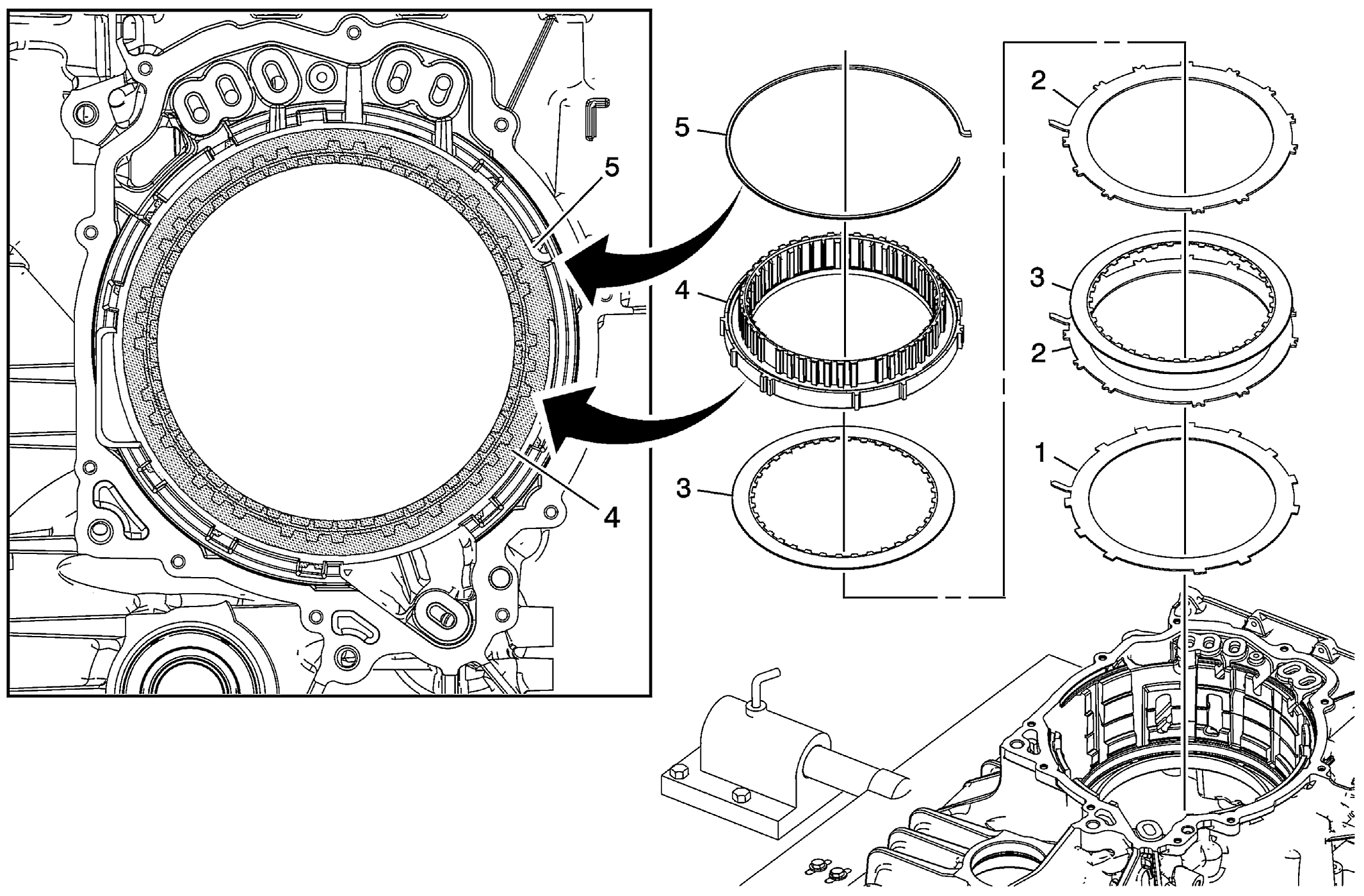

Fig 1: Identifying 1-2-3-4 Clutch Plates & Low Reverse Clutch Installation Order

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	1-2-3-4 Clutch (Waved) Plate Tip: The tab on the clutch plate faces the bottom of the case.
2	1-2-3-4 Clutch Plate (Qty: 2) Tip: The tab on the clutch plate faces the bottom of the case.
3	1-2-3-4 Clutch (w/Friction Material) Plate Assembly (Qty: 2)
4	Low and Reverse Clutch Assembly
5	Low and Reverse Clutch Retaining Ring Tip: The retaining ring opening should face the control side of the case (9 o'clock). Do not align the retainer opening with other retaining ring openings.
