Transmission Brace Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

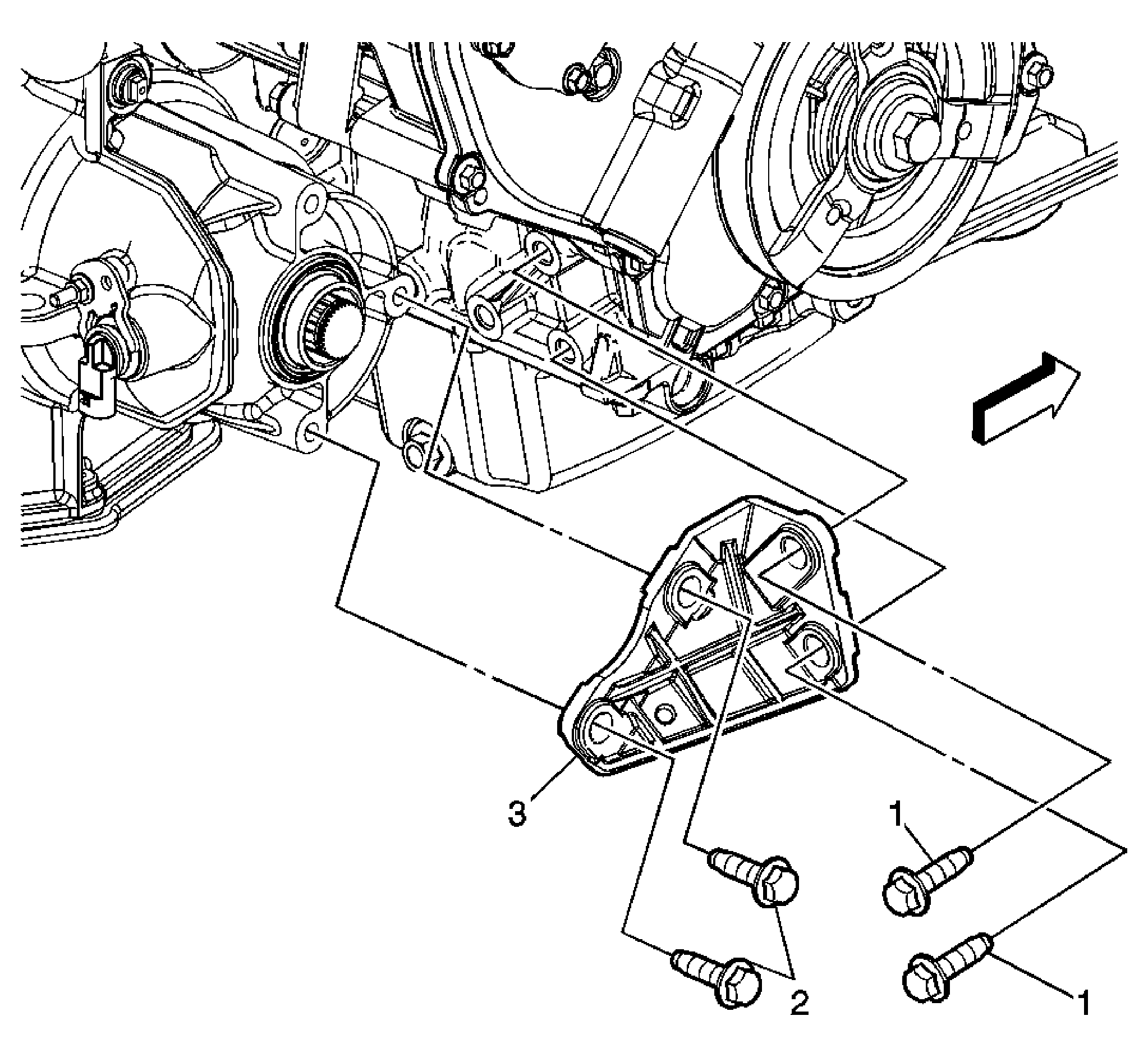

Fig 1: Transmission Brace

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Raise the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the right engine splash shield. Refer to Engine Splash Shield Replacement .
1	Transmission Brace Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 53 N.m (39 lb ft)
2	Transmission Brace Bolt (Qty: 2) Tighten: 53 N.m (39 lb ft)
3	Transmission Brace
