Auxiliary Fluid Pump Inlet Pipe Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

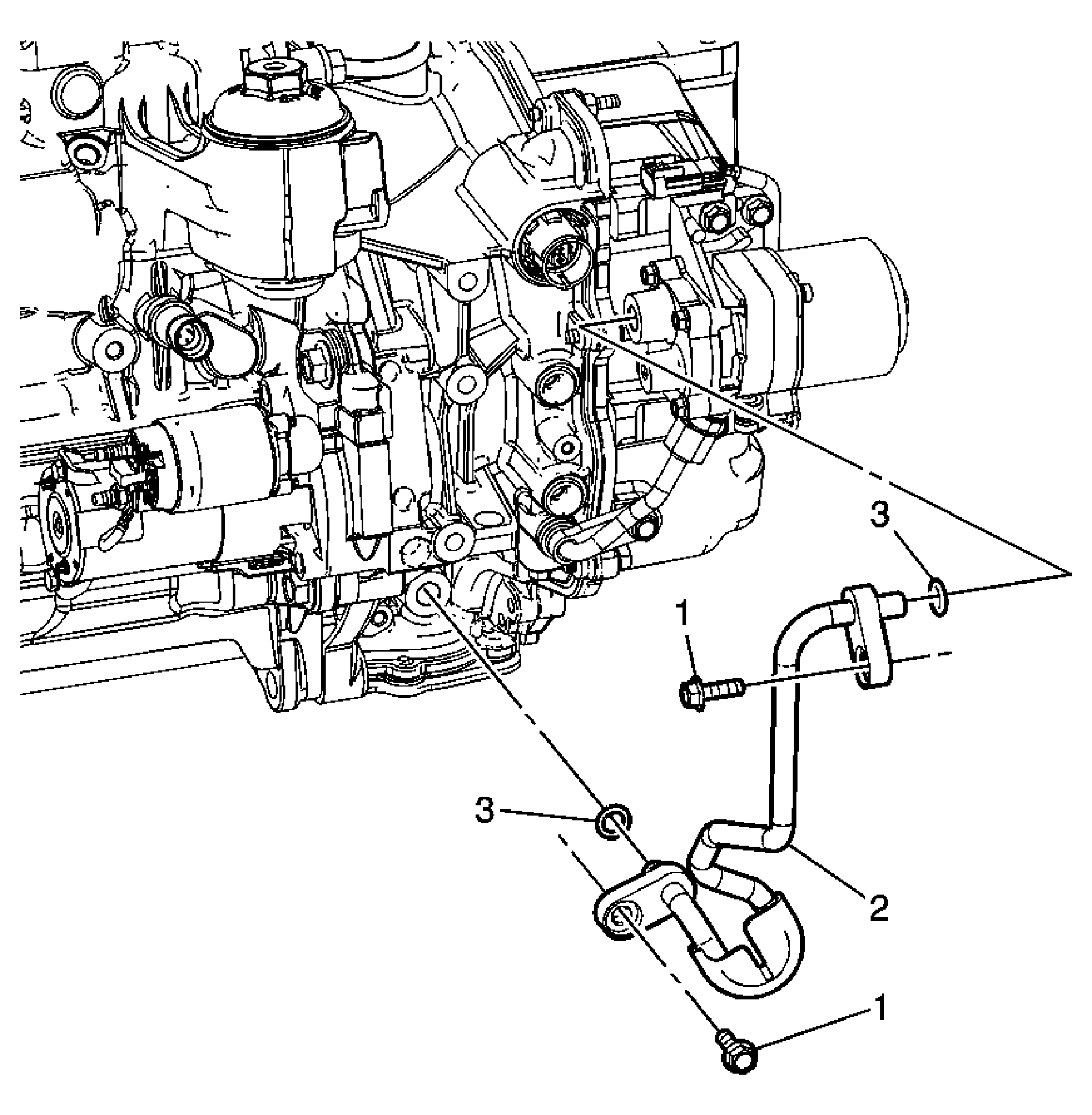

Fig 1: Auxiliary Fluid Pump Inlet Pipe

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Raise the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the front transaxle mount. Refer to Transmission Front Mount Replacement . Remove the auxiliary fluid pump. Refer to Auxiliary Fluid Pump Replacement .
1	Transaxle Auxiliary Fluid Pump Inlet Pipe Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 25 N.m (18 lb ft)
2	Transaxle Auxiliary Fluid Pump Inlet Pipe CAUTION: Transmission Auxiliary Pump Priming must be performed after any service procedure is performed on the transmission that involves the draining of and refill of transmission fluid. Failure to perform the Transmission Auxiliary Pump Priming will result in damage to the auxiliary pump and possible damage to the transmission. Procedure: Prime the auxiliary fluid pump. Refer to Auxiliary Fluid Pump Priming
3	Transaxle Auxiliary Fluid Pump Inlet Pipe O-ring (Qty: 2)
