Section 1912 (Battery, Charging System And Starting System)
>>
Schematic and Routing Diagrams
>>
Starting and Charging Schematics
Starting and Charging Schematics
WARNING:
This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

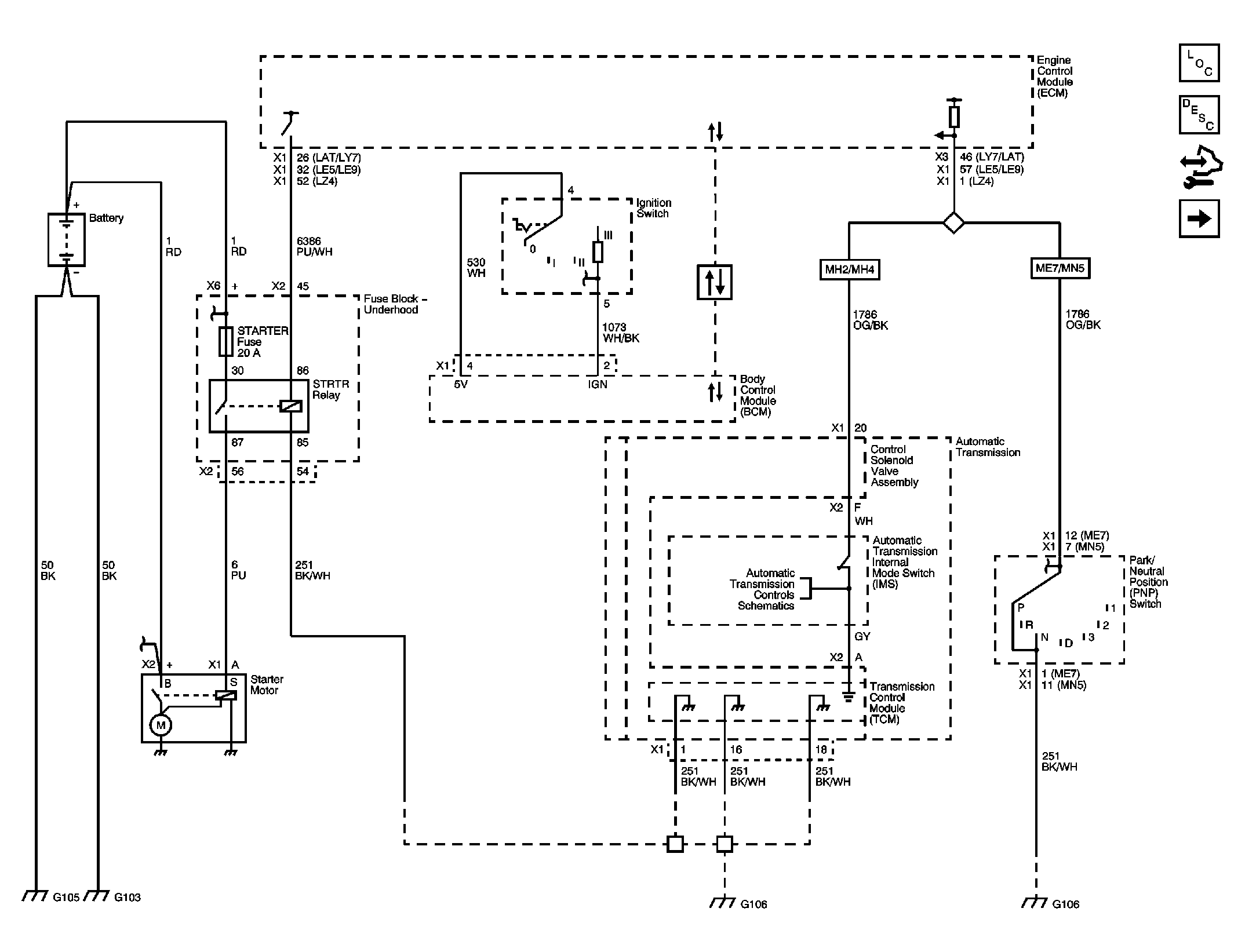

Fig 1: Starting (LE5/LY7/LZ4)
Courtesy of GENERAL MOTORS CORP.

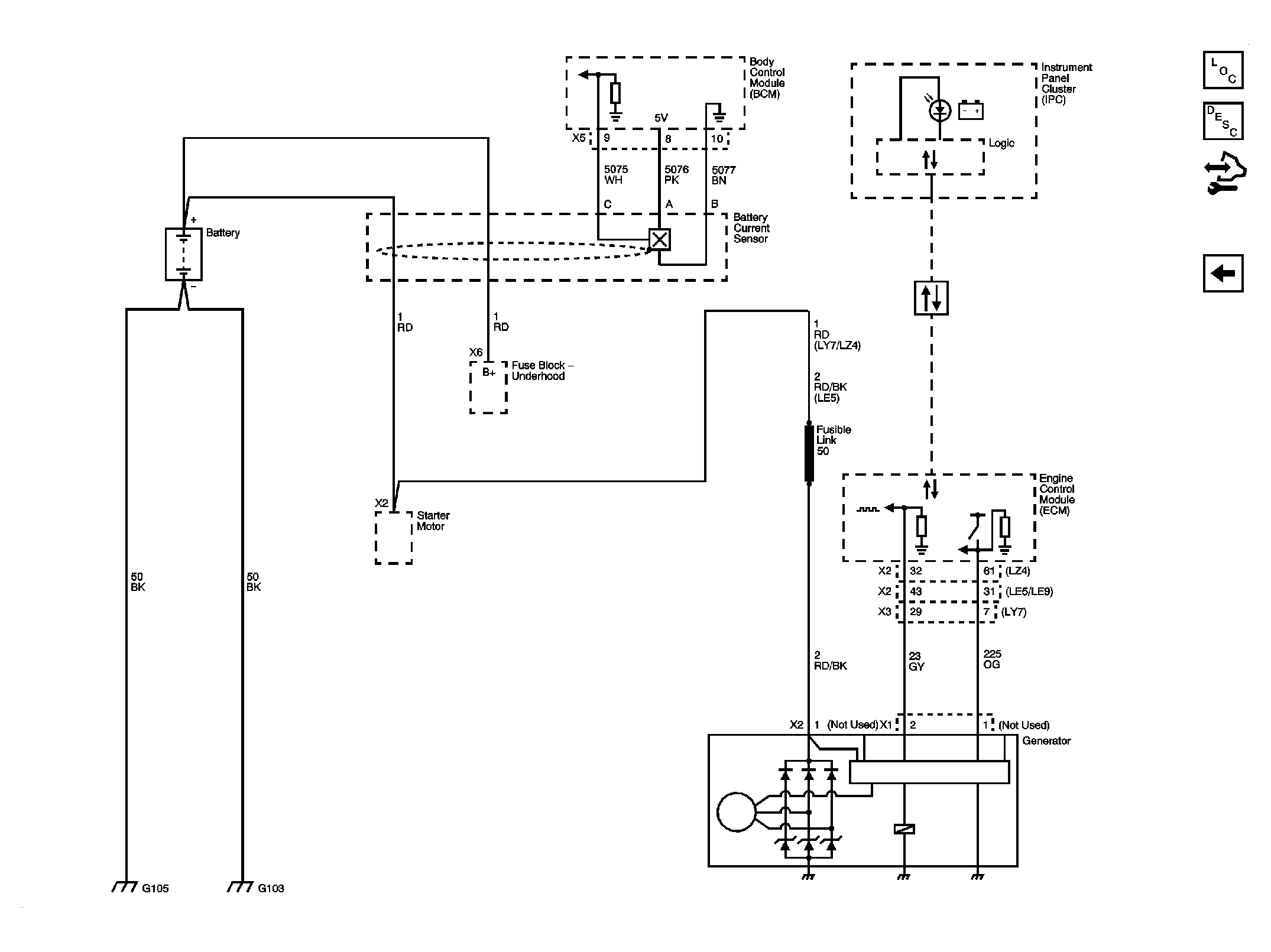

Fig 2: Charging (LE5/LY7/LZ4)
Courtesy of GENERAL MOTORS CORP.
