Removal Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .

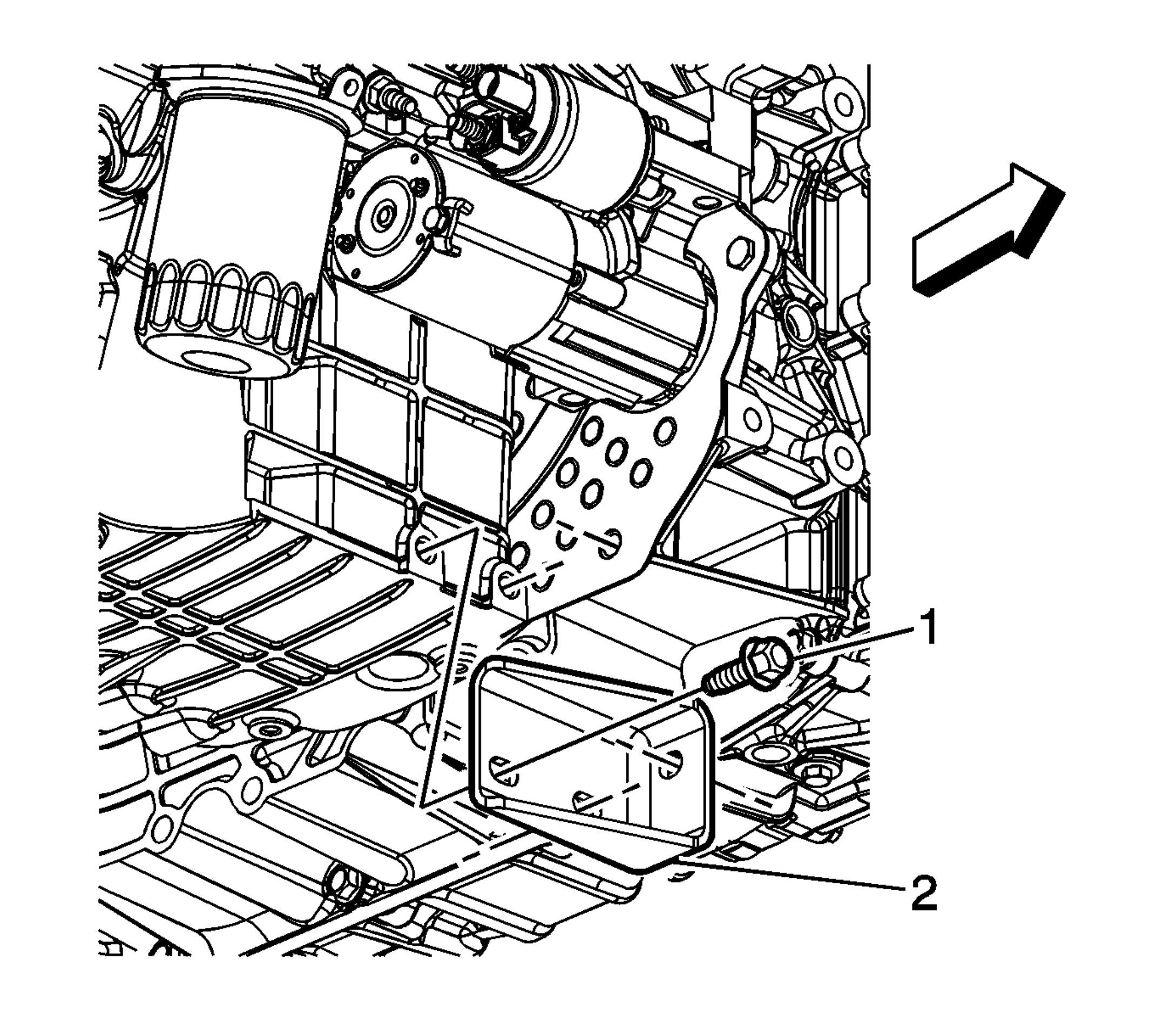

    2. Fig 1: Transmission Bracket
    GM1877496Courtesy of GENERAL MOTORS CORP.
  2. Remove the 3 transmission bracket bolts (1).
  3. Remove the transmission bracket (2) from the vehicle.

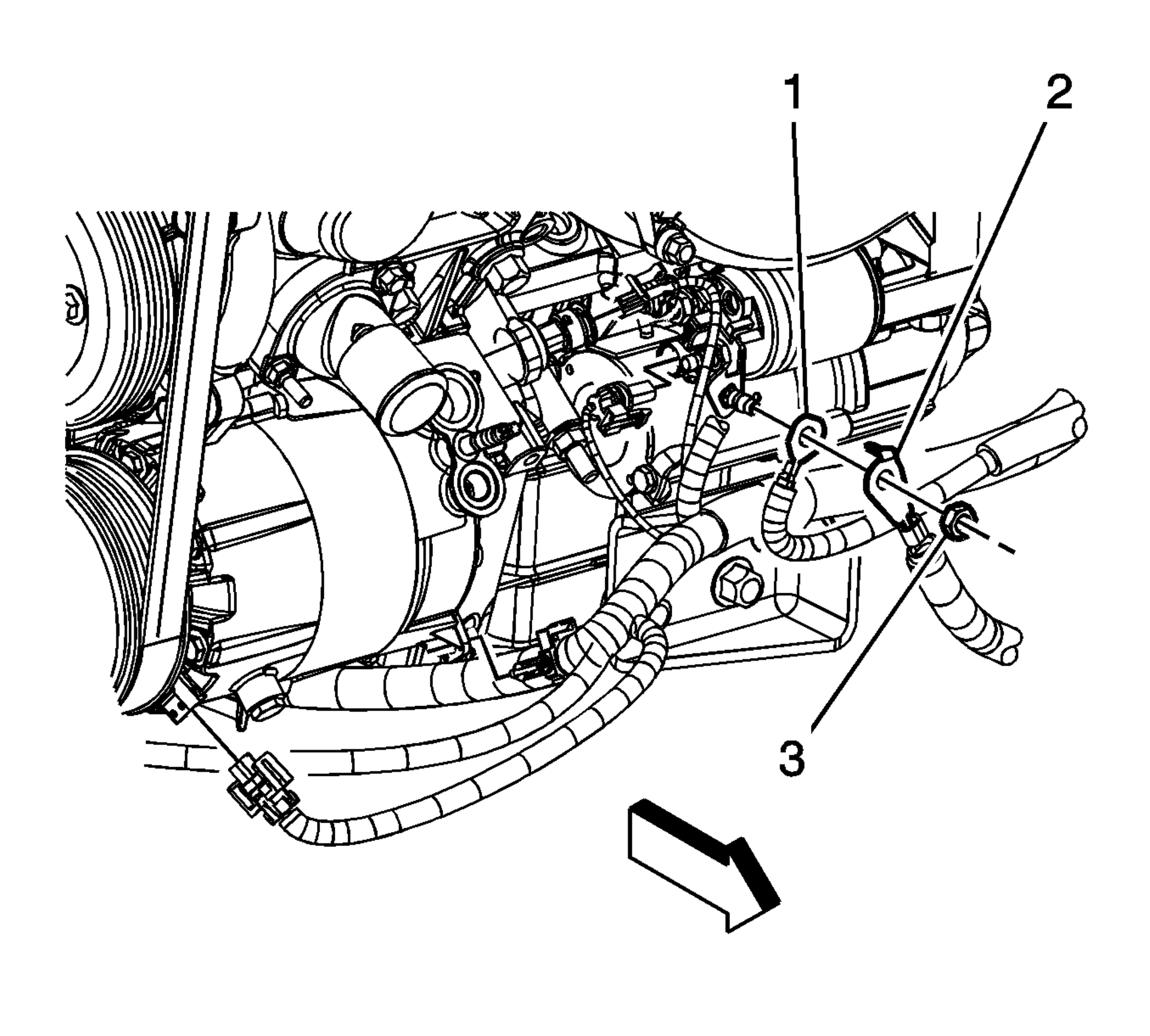

    4. Fig 2: Battery Positive Cable Terminal
    GM1877497Courtesy of GENERAL MOTORS CORP.
  4. Remove the starter solenoid BAT terminal nut (3).
  5. Remove the battery positive cable terminal (2) and engine harness terminal (1) from the starter motor.

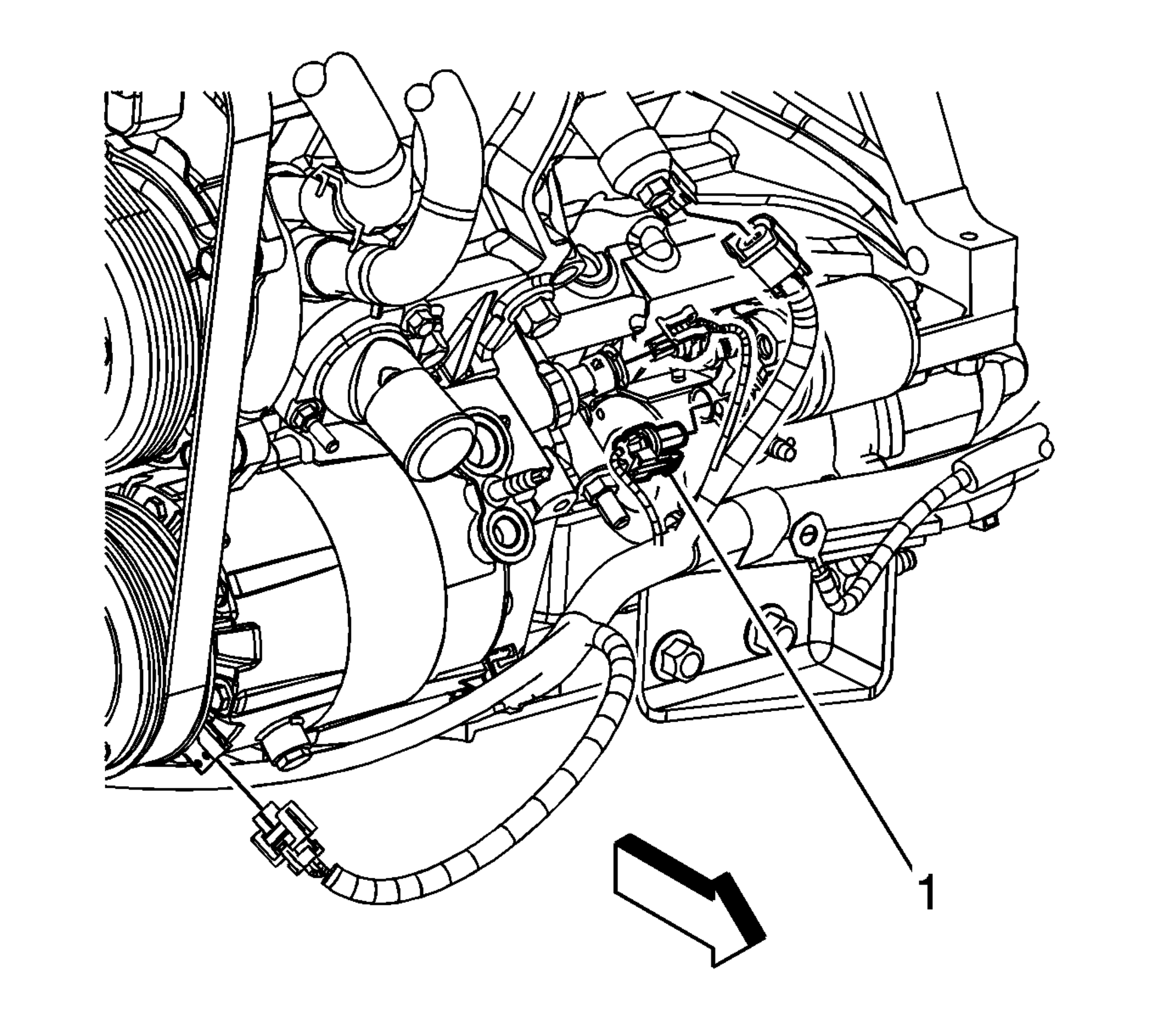

    6. Fig 3: Starter Motor Electrical Connector
    GM1877498Courtesy of GENERAL MOTORS CORP.
  6. Disconnect the starter motor electrical connector (1).
    7. Fig 4: View Of Starter Bolts
    GM1617015Courtesy of GENERAL MOTORS CORP.
  7. Remove the starter motor bolts.
  8. Remove the starter motor from the vehicle.
