Removal Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
  2. Hoist and raise the vehicle. Refer to Lifting and Jacking the Vehicle .

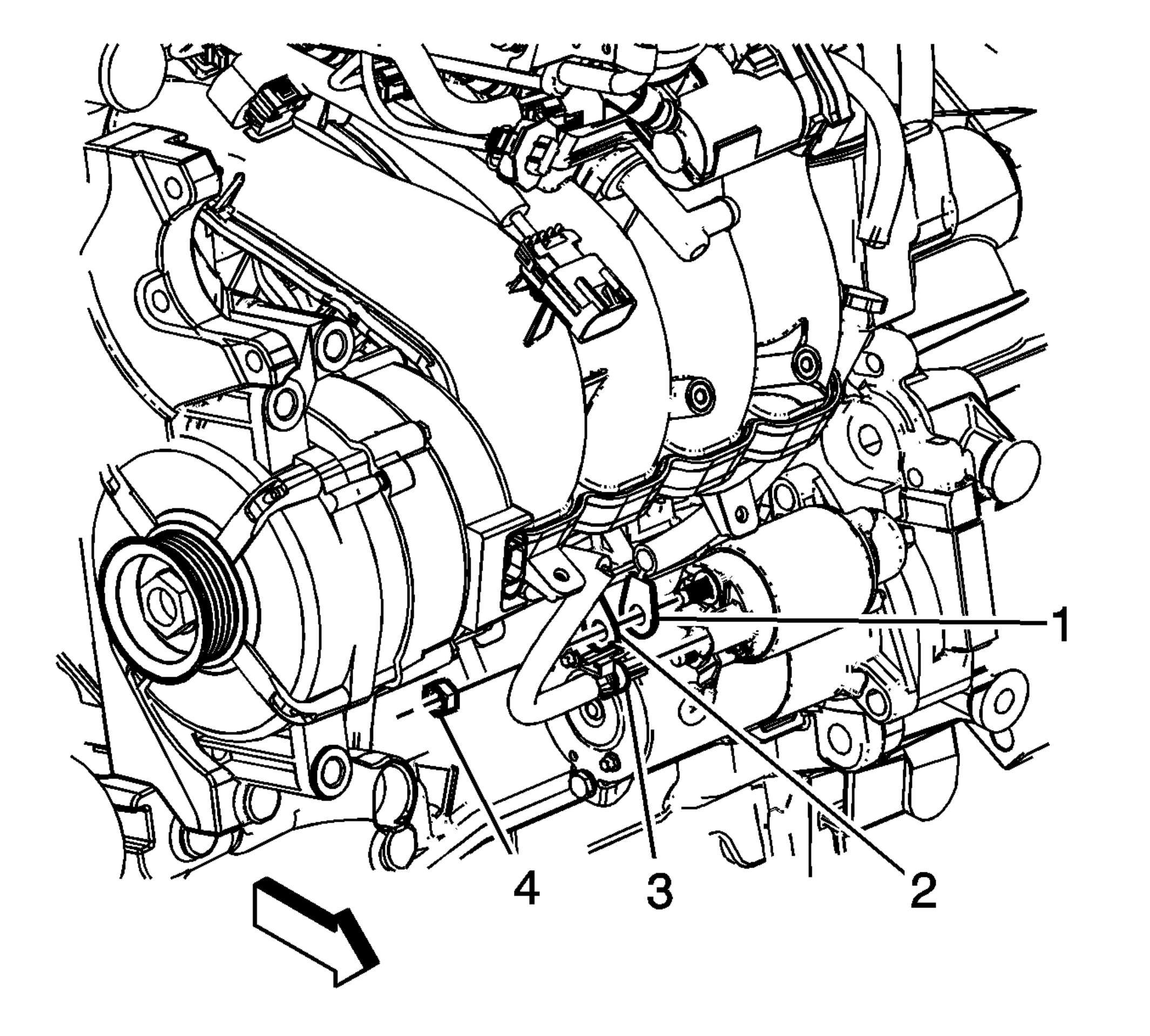

    3. Fig 1: Starter Motor Electrical Connector
    GM1878823Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the starter motor electrical connector (3).
  4. Remove the starter solenoid BAT terminal nut (4).
  5. Remove the battery positive cable terminal (1) and engine harness terminal (2) from the starter motor.

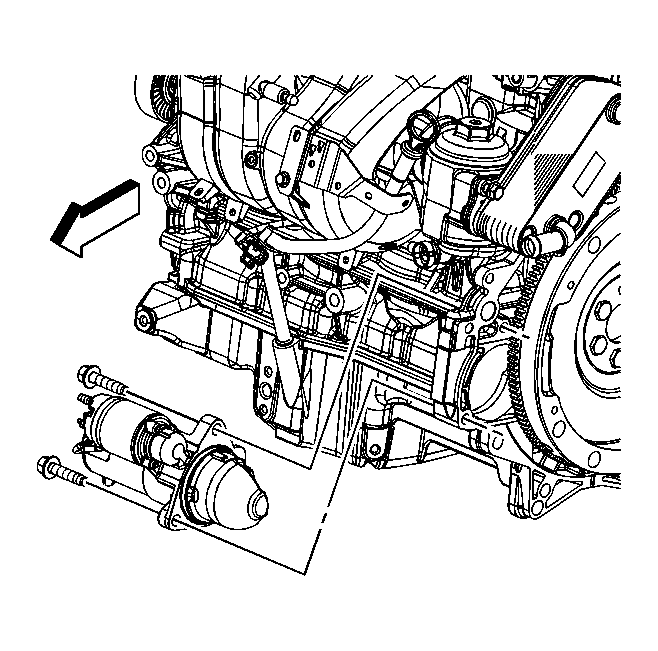

    6. Fig 2: Identifying Starter Bolts & Starter
    GM1648192Courtesy of GENERAL MOTORS CORP.
  6. Remove the starter motor bolts.
  7. Remove the starter motor from the vehicle.
