Removal Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Refer to Battery Disconnect Warning .

Release the electronic control module (ECM) bracket from the battery cover and set it aside with the ECM still connected. Refer to Engine Control Module Replacement .

Fig 1: Battery Cover Retaining Tabs

Courtesy of GENERAL MOTORS CORP.

Release the battery cover retaining tabs (2) and remove the battery cover (1).

Fig 2: Battery Positive And Negative Cable Nuts

Courtesy of GENERAL MOTORS CORP.

Loosen the battery positive cable nut (3) and remove the battery positive cable from the battery.
Remove the battery negative cable ground nut (1) and remove the battery negative cable ground from the body ground stud.

Fig 3: Battery Positive Cable Junction Block Nut

Courtesy of GENERAL MOTORS CORP.

Remove the battery positive cable junction block nut (1) and remove the battery positive cable from the junction block.

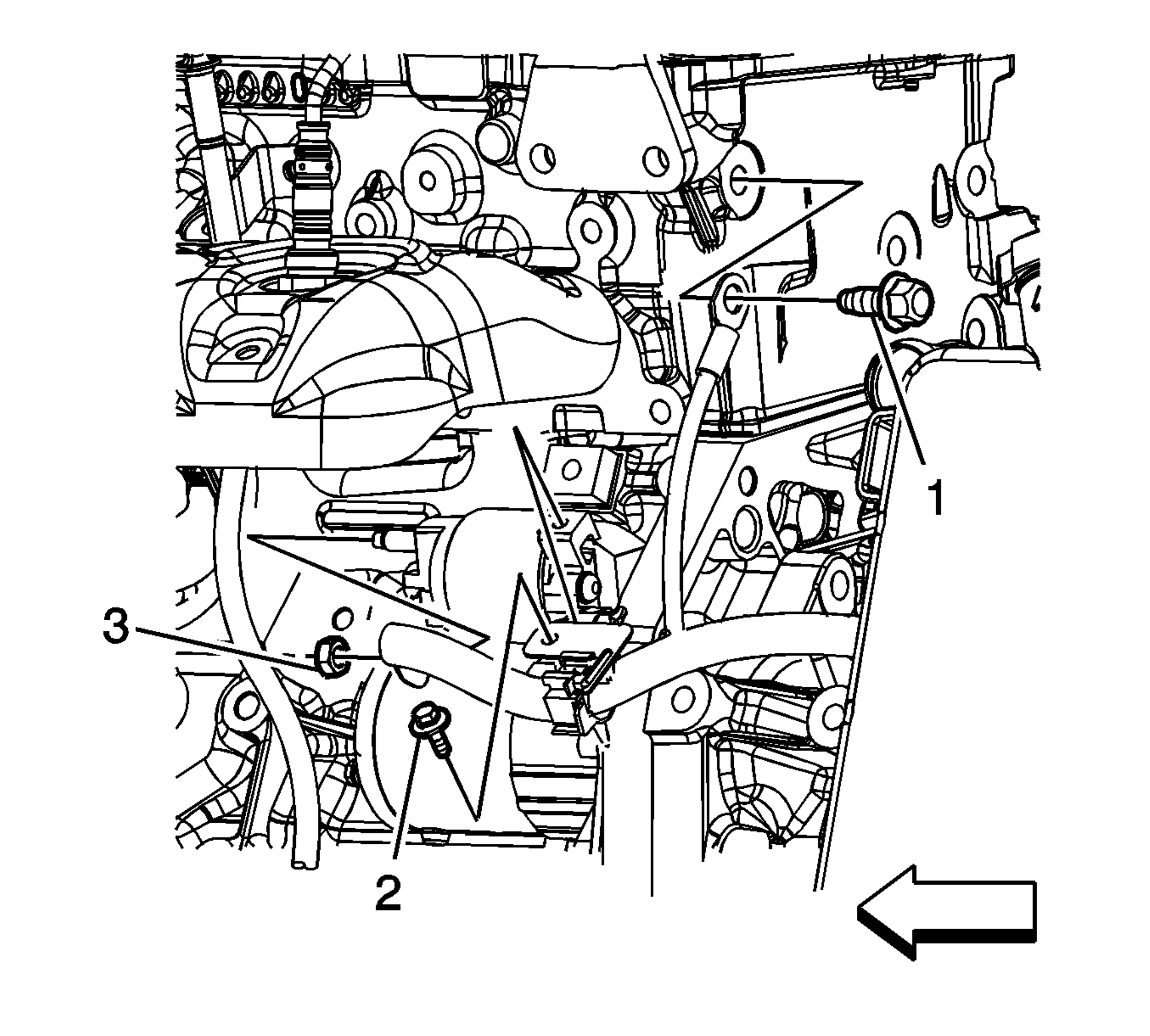

Fig 4: Engine Wiring Harness Ground Bolt

Courtesy of GENERAL MOTORS CORP.

Remove the engine wiring harness ground bolt (1) and the battery negative cable ground at the rear of the left side cylinder head.
Remove the battery positive and negative cable bracket bolt (2).
Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
Remove the starter solenoid BAT terminal nut (3) and remove the battery positive cable from the starter solenoid BAT stud.
Remove the battery positive and negative cable from the vehicle.
Transfer the battery current sensor if replacing the battery positive and negative cable. Refer to Battery Current Sensor Replacement .
