Section 1912 (Battery, Charging System And Starting System)
>>
Diagnostic Information and Procedures
>>
Battery Electrical Drain/Parasitic Load Test
>>
Typical Undesired Parasitic Loads
Typical Undesired Parasitic Loads
WARNING:
This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
Cigar lighter ON
Headlamps ON
Parking lamps ON
Reading lamps ON
Radio ON

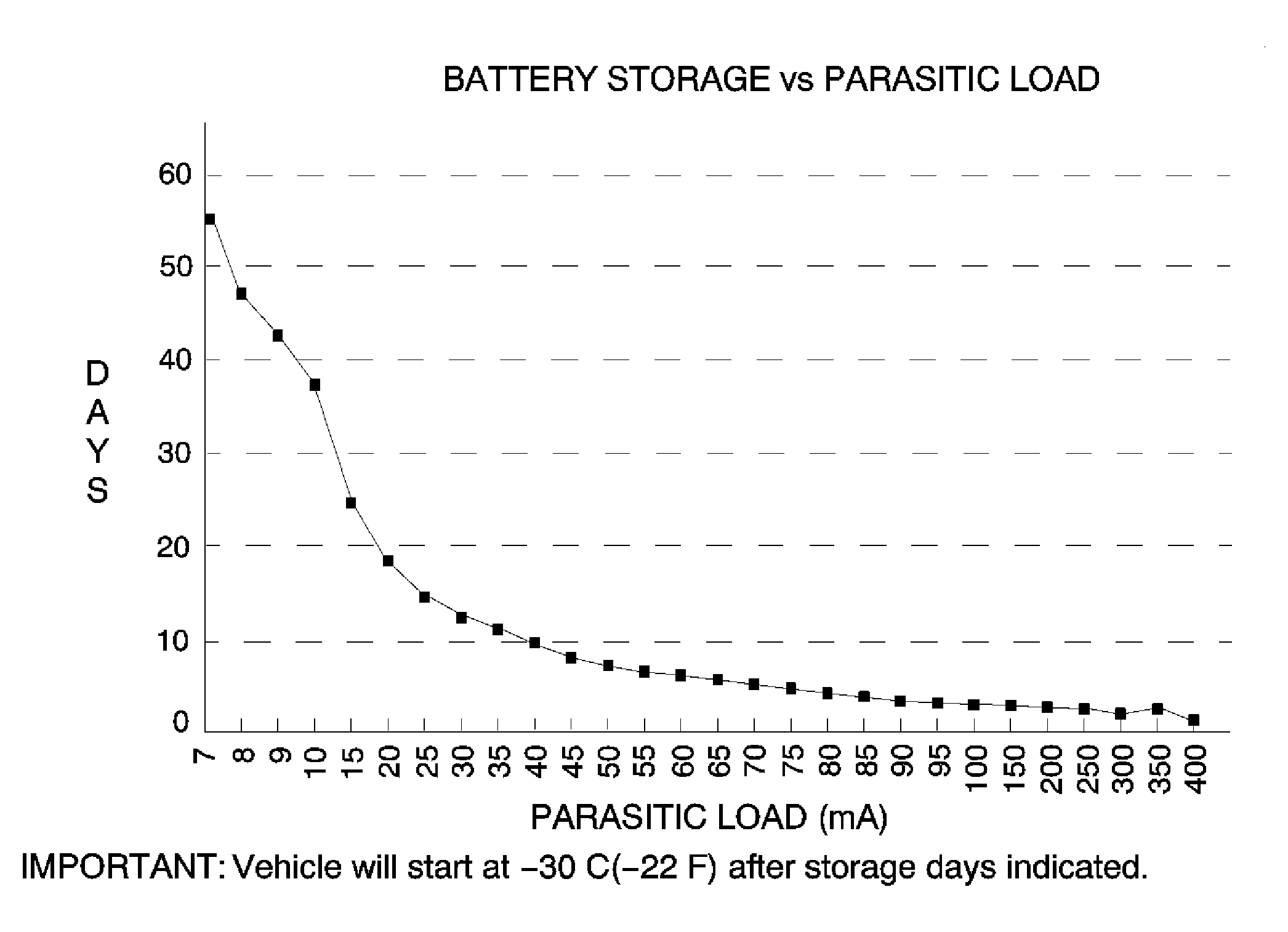

Fig 1: Battery Storage Versus Parasitic Load Graph
Courtesy of GENERAL MOTORS CORP.
