Instrument Panel Outer Air Outlet Replacement - Left Side

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

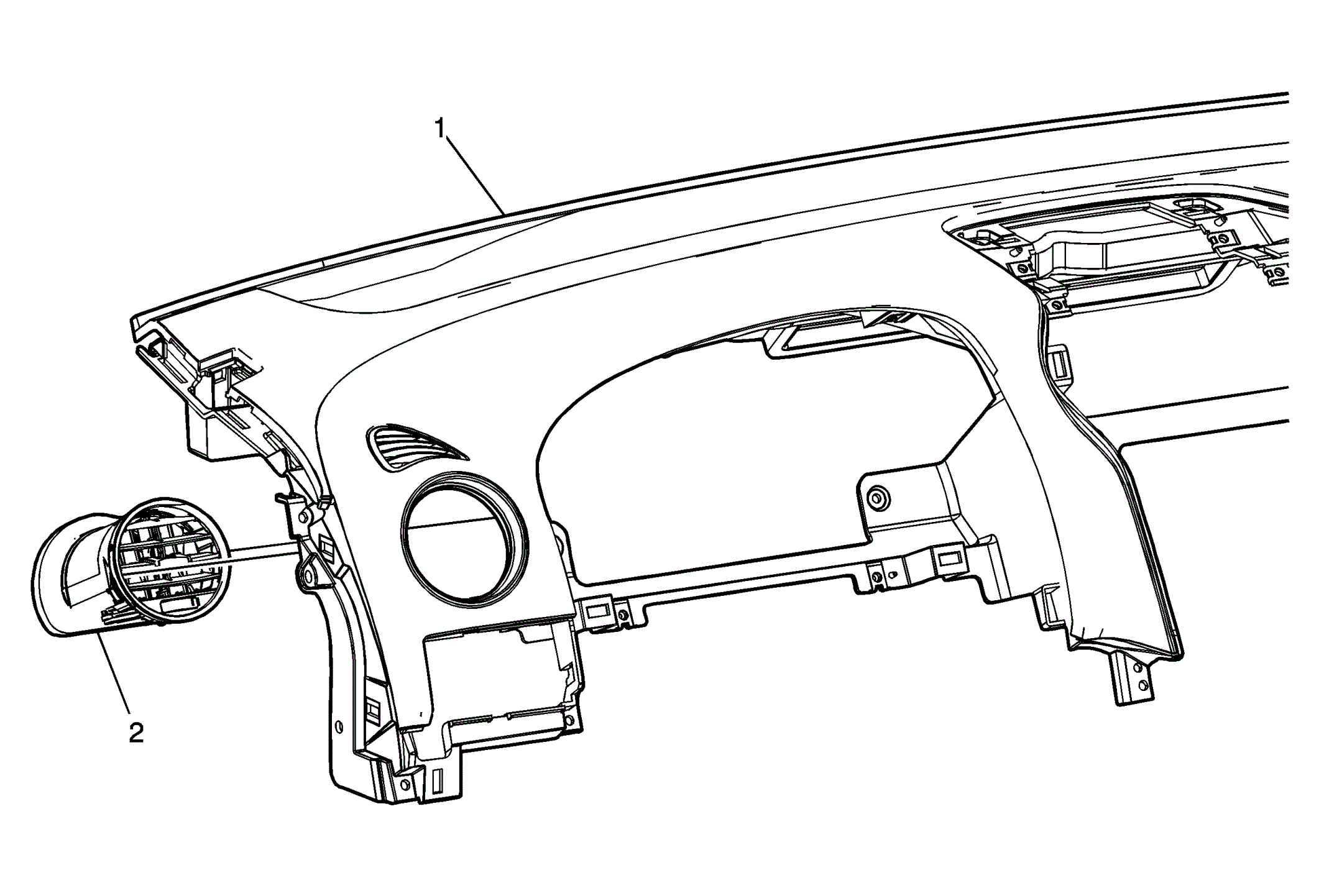

Fig 1: Left Side Instrument Panel Outer Air Outlet
GM1870269Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Instrument Panel Trim Panel.
Refer to Instrument Panel Trim Panel Replacement .
2 Instrument Panel Left Air Outlet.
Procedure:
Unsnap the outlet from the instrument panel trim panel.
