Heater Inlet Hose Replacement (LE5)

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

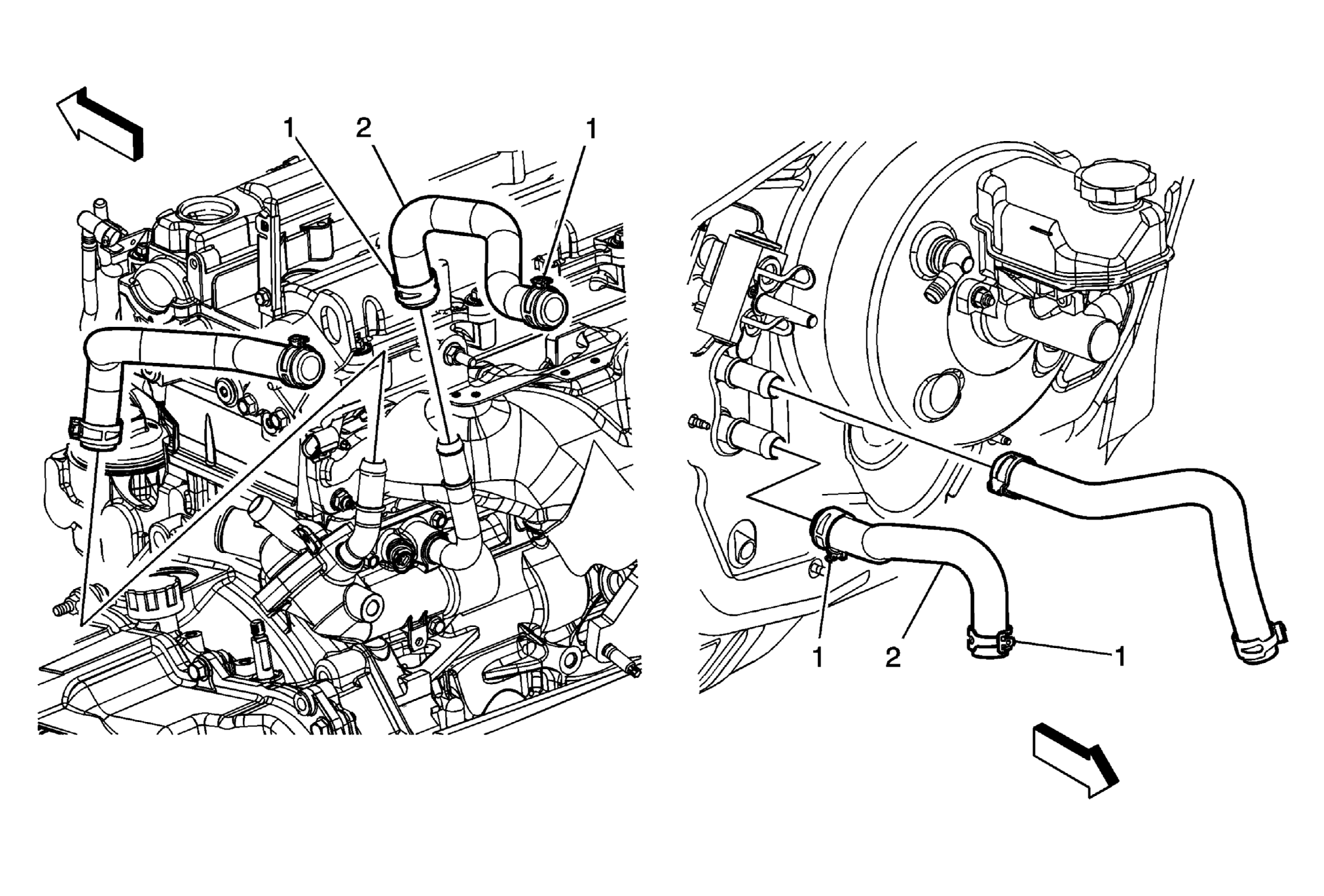

Fig 1: Heater Inlet Hose
GM1872695Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedures:
Partially drain the cooling system. Refer to Cooling System Draining and Filling (Static Fill With HP5) or Cooling System Draining and Filling (Static Fill Without HP5) or Cooling System Draining and Filling (GE 47716 Fill With HP5) or Cooling System Draining and Filling (GE 47716 Fill Without HP5) .
1 Heater inlet hose clamps (Qty 2).
2 Heater inlet hose.
