Installation Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the heater inlet hose to the vehicle.

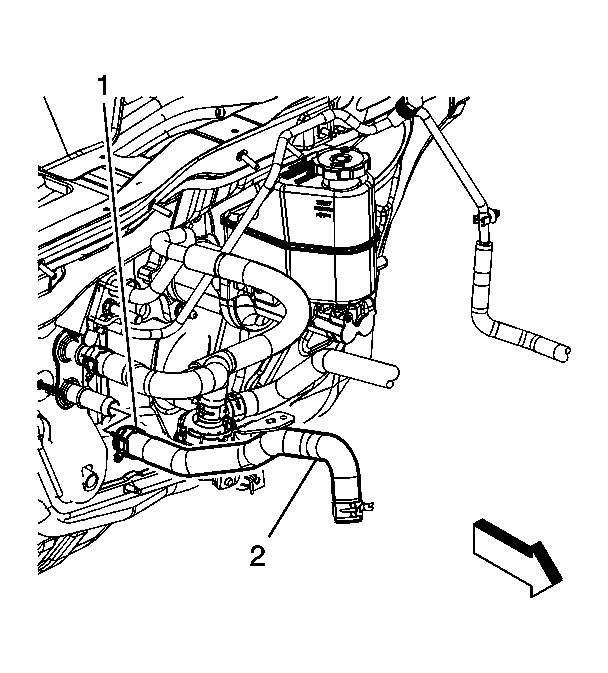

    2. Fig 1: Heater Inlet Hose At Heater Core
    GM2159915Courtesy of GENERAL MOTORS CORP.
  2. Using J 38185:  Hose Clamp Pliers disengage the tension on the hose clamp (1) and install the heater inlet hose (2) to the heater core.
    3. Fig 2: Heater Inlet Hose At Thermostat
    GM2159924Courtesy of GENERAL MOTORS CORP.
  3. Using J 38185:  Hose Clamp Pliers disengage the tension on the hose clamp (1) and install the heater inlet hose (2) to the thermostat housing.
  4. Install the drive motor generator control module assembly. Refer to Drive Motor Generator Control Module Assembly Replacement
  5. Fill the coolant. Refer to Cooling System Draining and Filling (Static Fill With HP5) or Cooling System Draining and Filling (Static Fill Without HP5) or Cooling System Draining and Filling (GE 47716 Fill With HP5) or Cooling System Draining and Filling (GE 47716 Fill Without HP5)
