Compressor Pressure Relief Valve Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

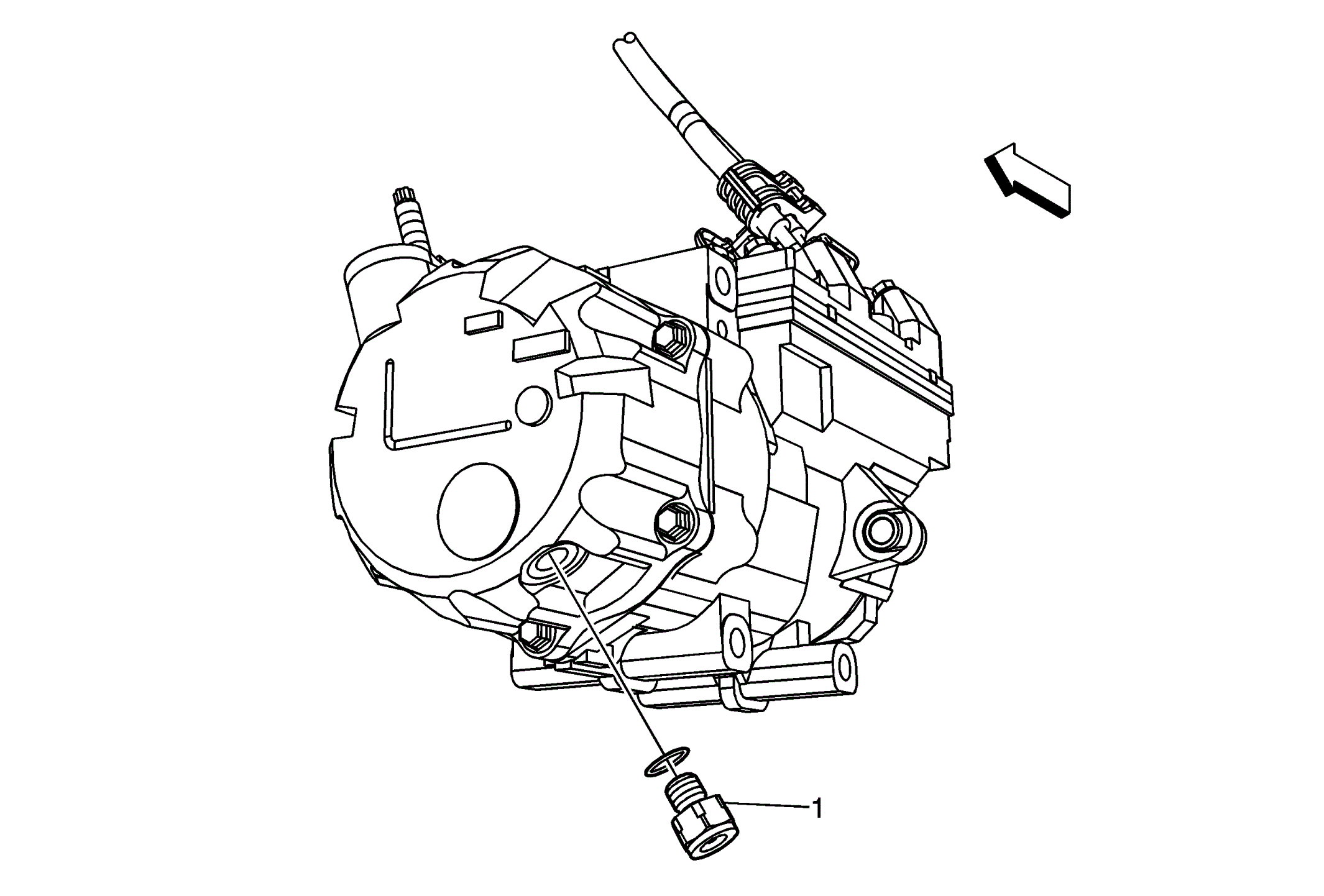

Fig 1: Typical Compressor PRV (1) Location

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Recover the refrigerant. Refer to Refrigerant Recovery and Recharging (With HP5) or Refrigerant Recovery and Recharging (Without HP5) . Raise and support vehicle. Refer to Lifting and Jacking the Vehicle .
1	Compressor Pressure Relief Valve CAUTION: Refer to Fastener Caution . Tip: Leak test the fittings of the components using J 39400-A . See Special Tools . Tighten: 8 N.m (70 lb in) Special Tools: J 39400-A: Halogen Leak Detector

Callout

Component Name

Preliminary Procedures

Recover the refrigerant. Refer to Refrigerant Recovery and Recharging (With HP5) or Refrigerant Recovery and Recharging (Without HP5) .
Raise and support vehicle. Refer to Lifting and Jacking the Vehicle .

Compressor Pressure Relief Valve

CAUTION: Refer to Fastener Caution .

Tip: Leak test the fittings of the components using J 39400-A . See Special Tools .

Tighten: 8 N.m (70 lb in)

Special Tools:
J 39400-A: Halogen Leak Detector
