Installation Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

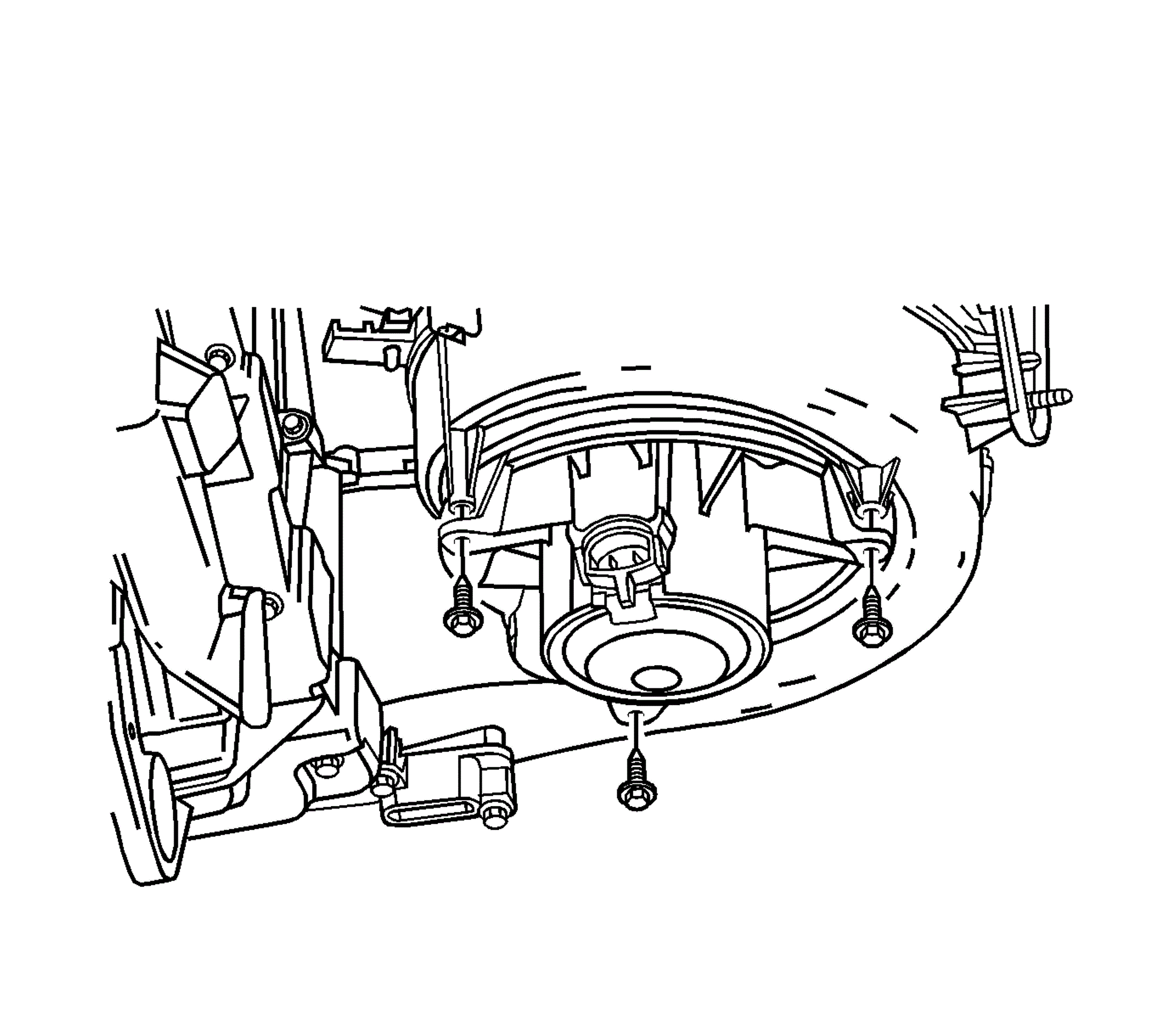

    Fig 1: View Of Blower Motor & Screws
    GM1284965Courtesy of GENERAL MOTORS CORP.
  1. Install the blower motor to the HVAC module.
    2. CAUTION: Refer to Fastener Caution .
  2. Install the blower motor screws to the HVAC module and tighten the screws to 1.5 N.m (13 lb in).
  3. Connect the electrical connector to the blower motor.
