Installation Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

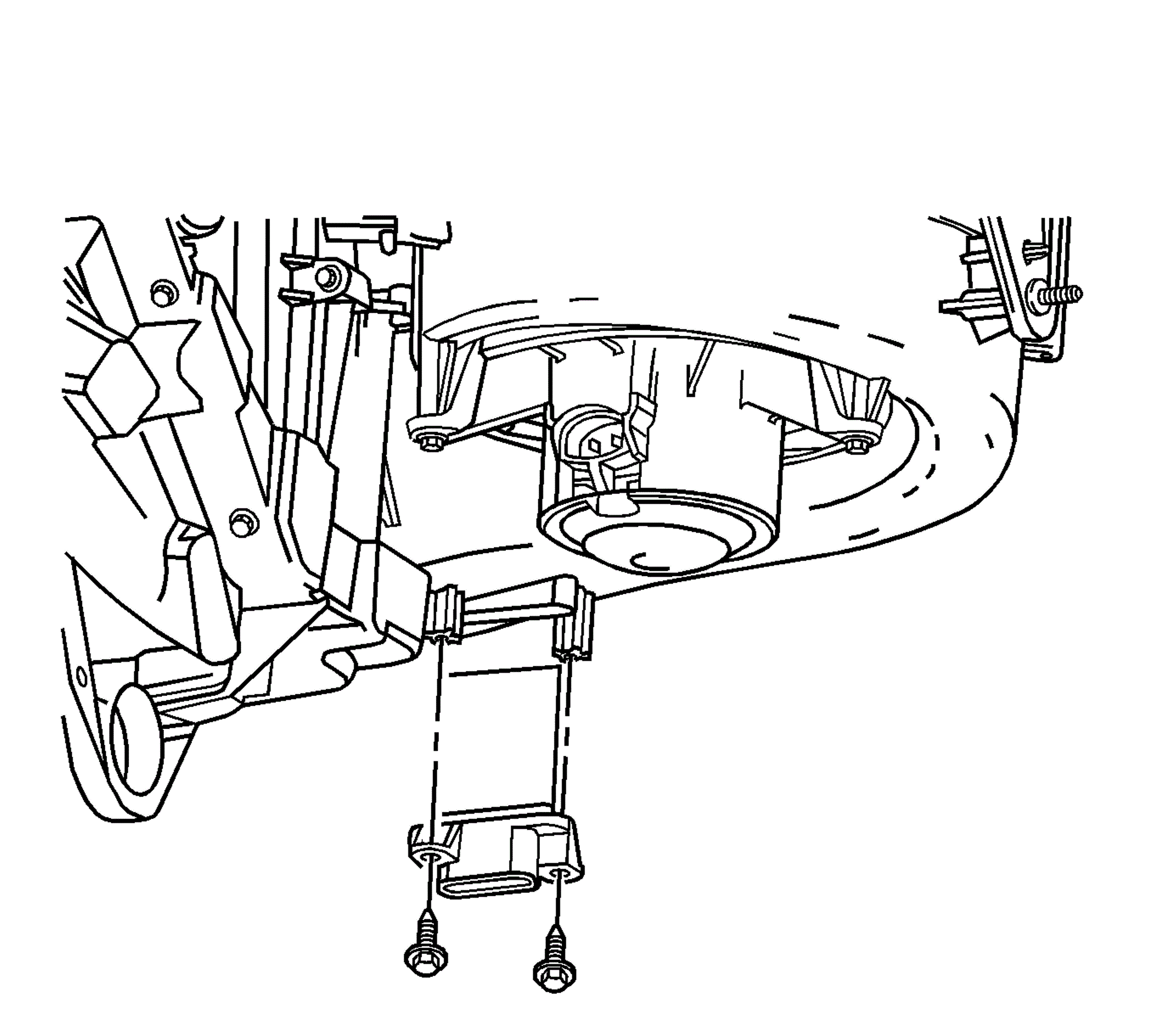

    Fig 1: View Of Blower Motor Resistor
    GM1284964Courtesy of GENERAL MOTORS CORP.
  1. Install the blower motor control module to the HVAC module.
    2. CAUTION: Refer to Fastener Caution .
  2. Install the blower motor control module screws to the HVAC module and tighten the screws to 1.5 N.m (13 lb in).
  3. Connect the electrical connector to the blower motor control module.
