Air Conditioning (A/C) Refrigerant Pressure Sensor Replacement (without HP5)

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

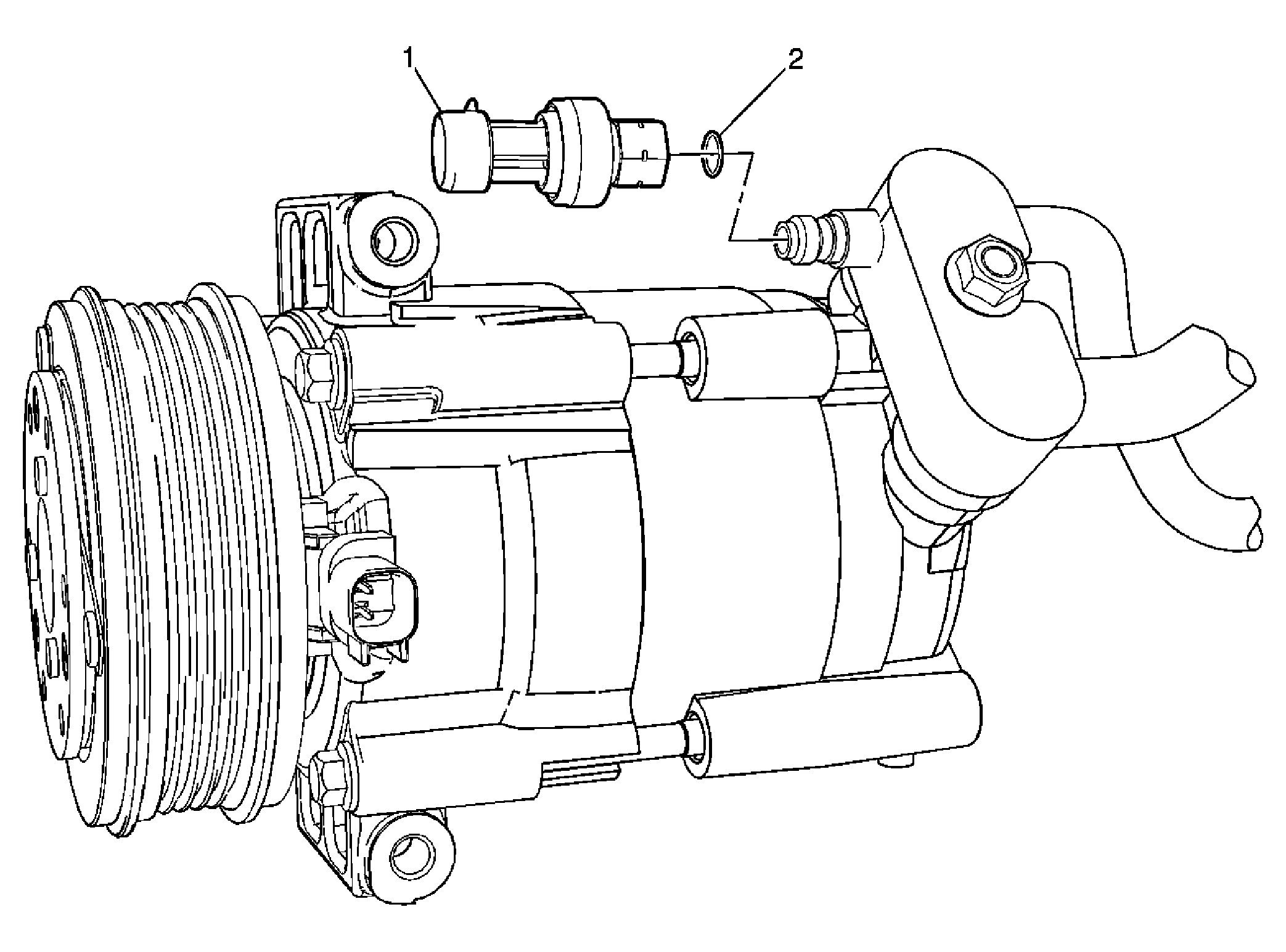

Fig 1: Air Conditioning (A/C) Refrigerant Pressure Sensor
GM1886456Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Refrigerant Pressure Sensor
CAUTION: Refer to Fastener Caution .

Procedure:
Hand start the refrigerant pressure sensor to the compressor hose, taking care not to pinch the O-ring and tighten.

Tighten:  4 N.m (35 lb in)
2 O-ring
Tip:  Lubricate the refrigerant pressure sensor O-ring with mineral oil.
