Air Conditioning (A/C) Refrigerant Pressure Sensor Replacement (with HP5)

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

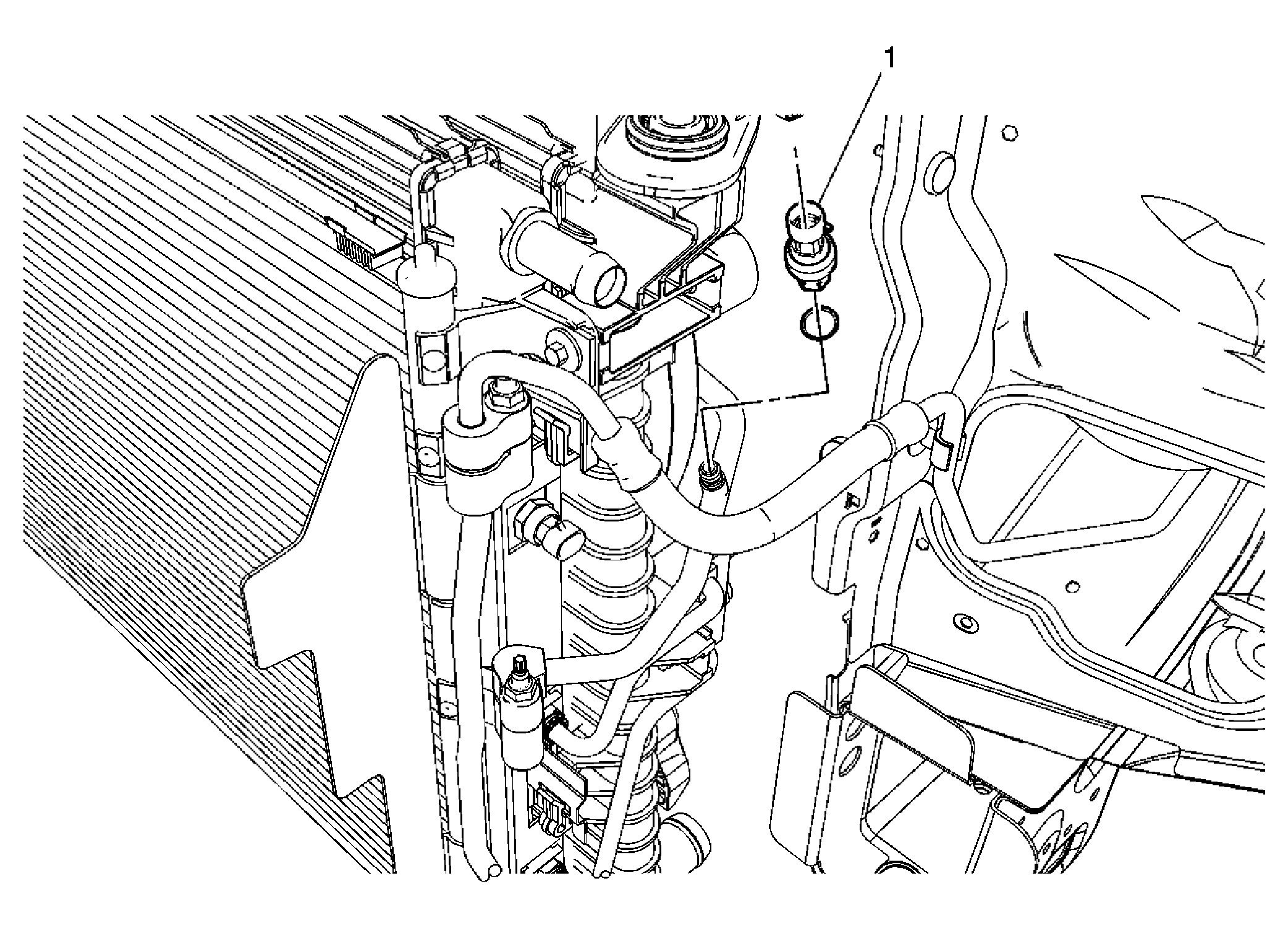

Fig 1: Air Conditioning (A/C) Refrigerant Pressure Sensor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the left headlamp assembly. Refer to Headlamp Replacement . Reposition any coolant hoses to access A/C pressure sensor.
1	Refrigerant Pressure Sensor CAUTION: Refer to Fastener Caution . Procedure Disconnect the electrical connector from the sensor. Lubricate the refrigerant pressure sensor O-ring with mineral oil. Tighten: 4 N.m (35 lb in)

Callout

Component Name

Preliminary Procedures

Remove the left headlamp assembly. Refer to Headlamp Replacement .
Reposition any coolant hoses to access A/C pressure sensor.

Refrigerant Pressure Sensor

CAUTION: Refer to Fastener Caution .

Procedure

Disconnect the electrical connector from the sensor.
Lubricate the refrigerant pressure sensor O-ring with mineral oil.
Tighten: 4 N.m (35 lb in)
