Roof Rear Console Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

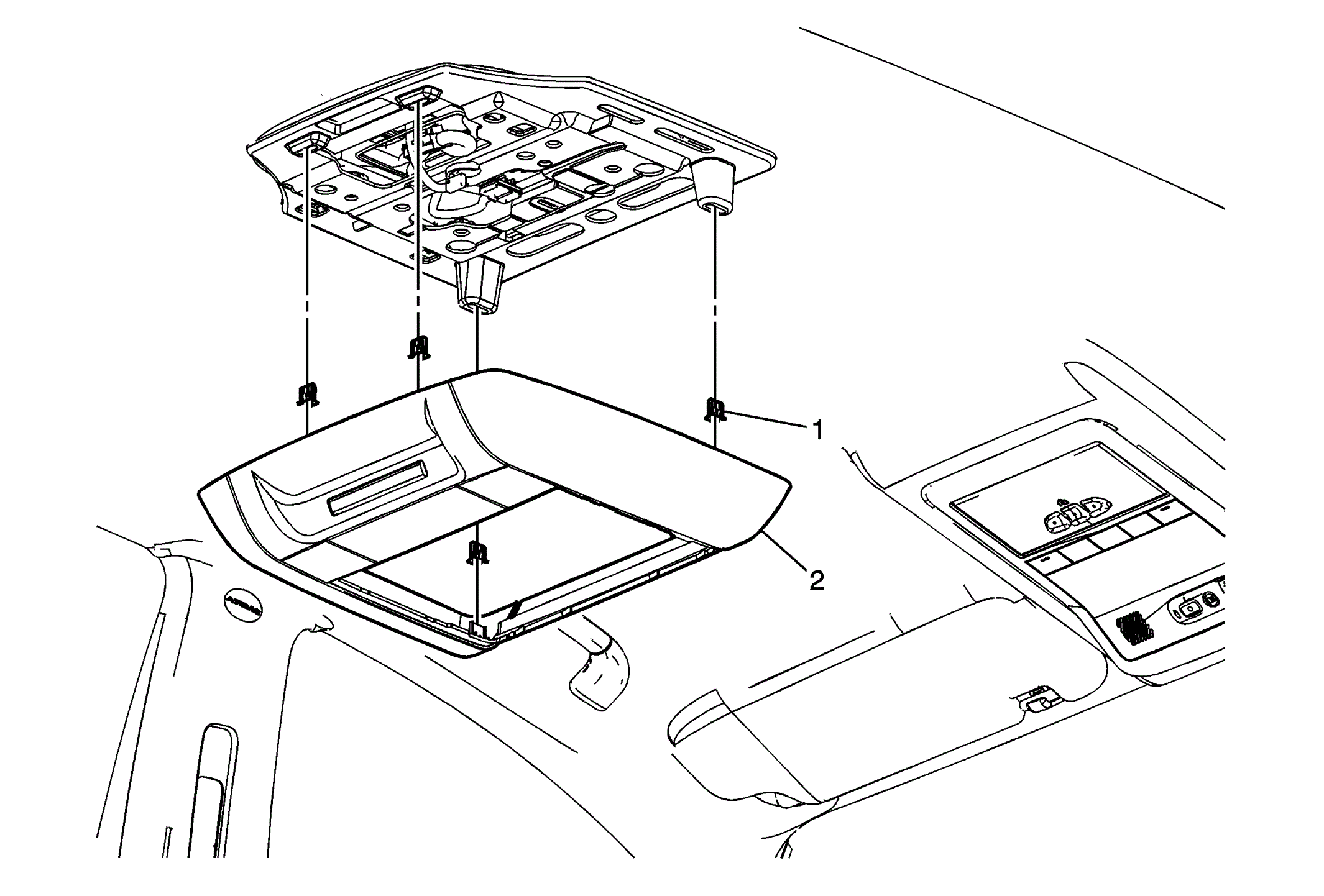

Fig 1: Roof Rear Console

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the video display assembly. Refer to Video Display Replacement .
1	Roof Console Retainer (Qty: 4)
2	Roof Console Assembly Procedure Pull down to disengage the retainer clips. Disconnect the electrical connectors. If replacing the rear roof console, transfer all necessary components.

Callout

Component Name

Preliminary Procedure:
Remove the video display assembly. Refer to Video Display Replacement .

Roof Console Retainer (Qty: 4)

Roof Console Assembly

Procedure

Pull down to disengage the retainer clips.
Disconnect the electrical connectors.
If replacing the rear roof console, transfer all necessary components.
