Instrument Panel Molding Replacement
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

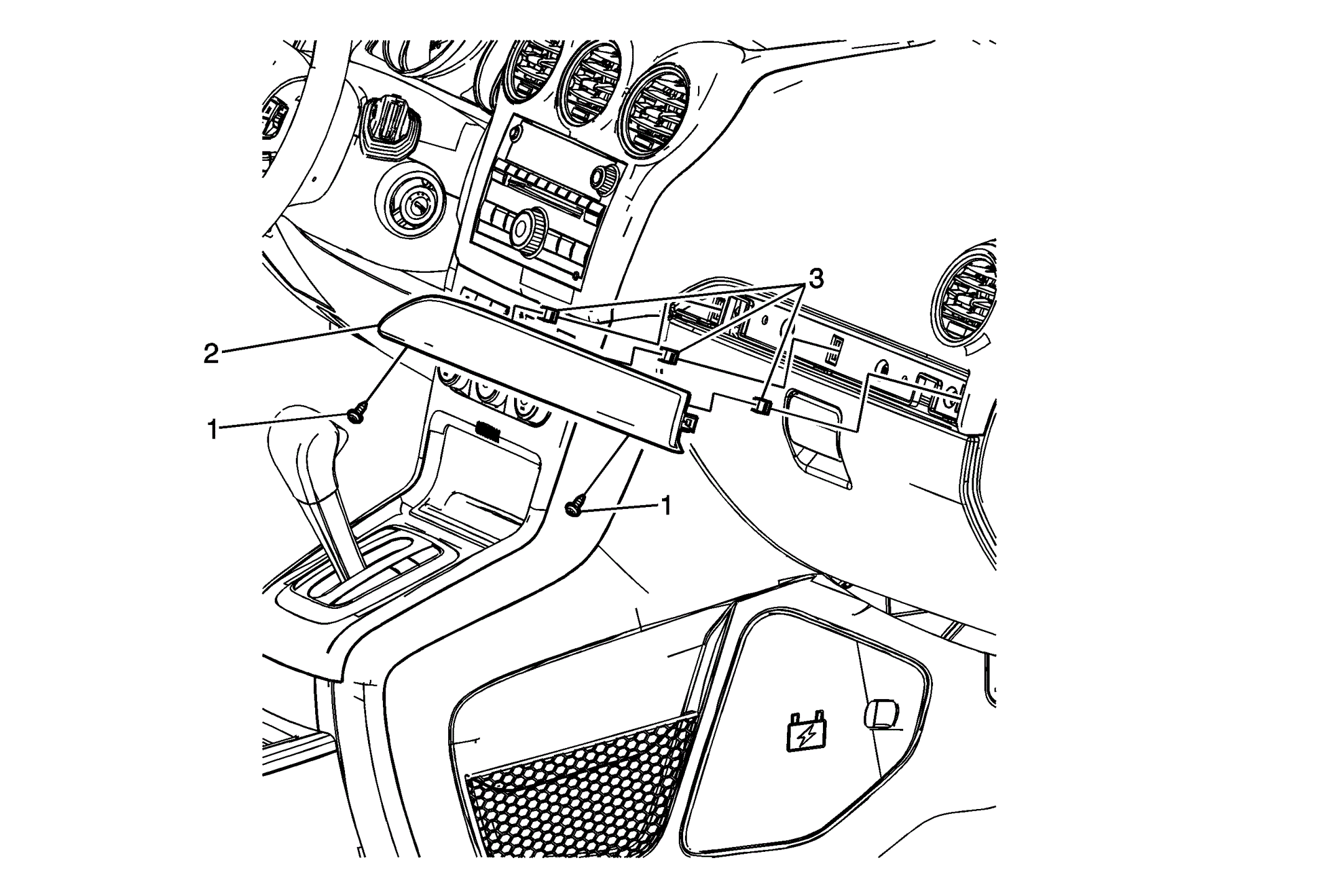

| Callout | Component Name |
|---|---|
| 1 | Instrument Panel Screw (Qty: 2)
CAUTION:
Refer to Fastener Caution
. Procedure: Open the instrument panel compartment door to access the screws. Tighten: 3 N.m (27 lb in) |
| 2 | Instrument Panel Molding Assembly Procedure: Use a flat-bladed plastic trim tool in order to release the molding from the instrument panel. |
| 3 | Retainer Clip (Qty: 3) |
