Front Floor Console Rear Cover Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

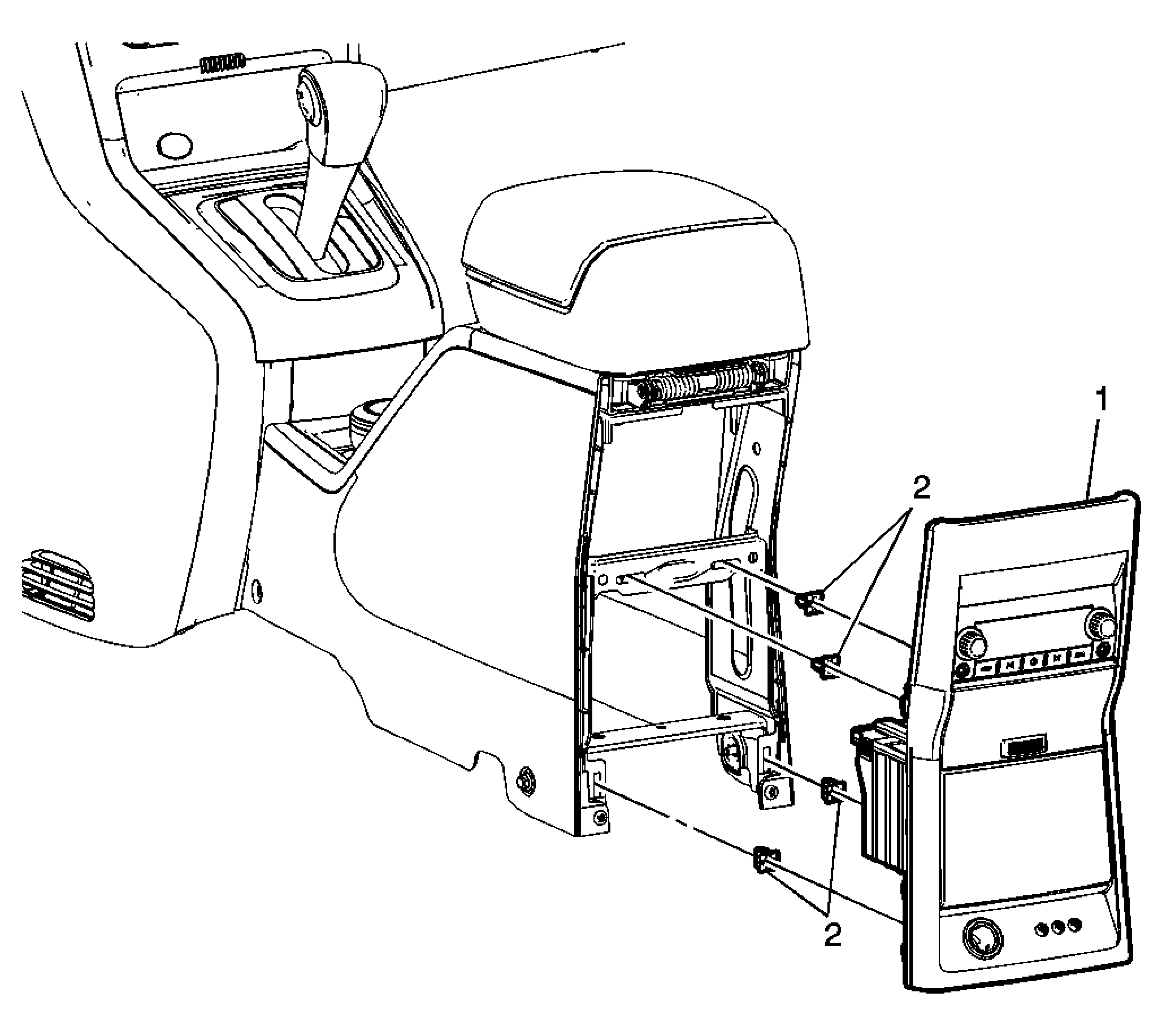

Fig 1: Front Floor Console Rear Cover

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the console bin. Refer to Front Floor Console Compartment Replacement .
1	Front Floor Rear Console Rear Cover Assembly Procedure Disconnect the electrical connections. When replacing the rear cover assembly, transfer all necessary components.
2	Retainer Clips (Qty: 4)

Callout

Component Name

Preliminary Procedure:
Remove the console bin. Refer to Front Floor Console Compartment Replacement .

Front Floor Rear Console Rear Cover Assembly

Procedure

Disconnect the electrical connections.
When replacing the rear cover assembly, transfer all necessary components.

Retainer Clips (Qty: 4)
