Installation Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

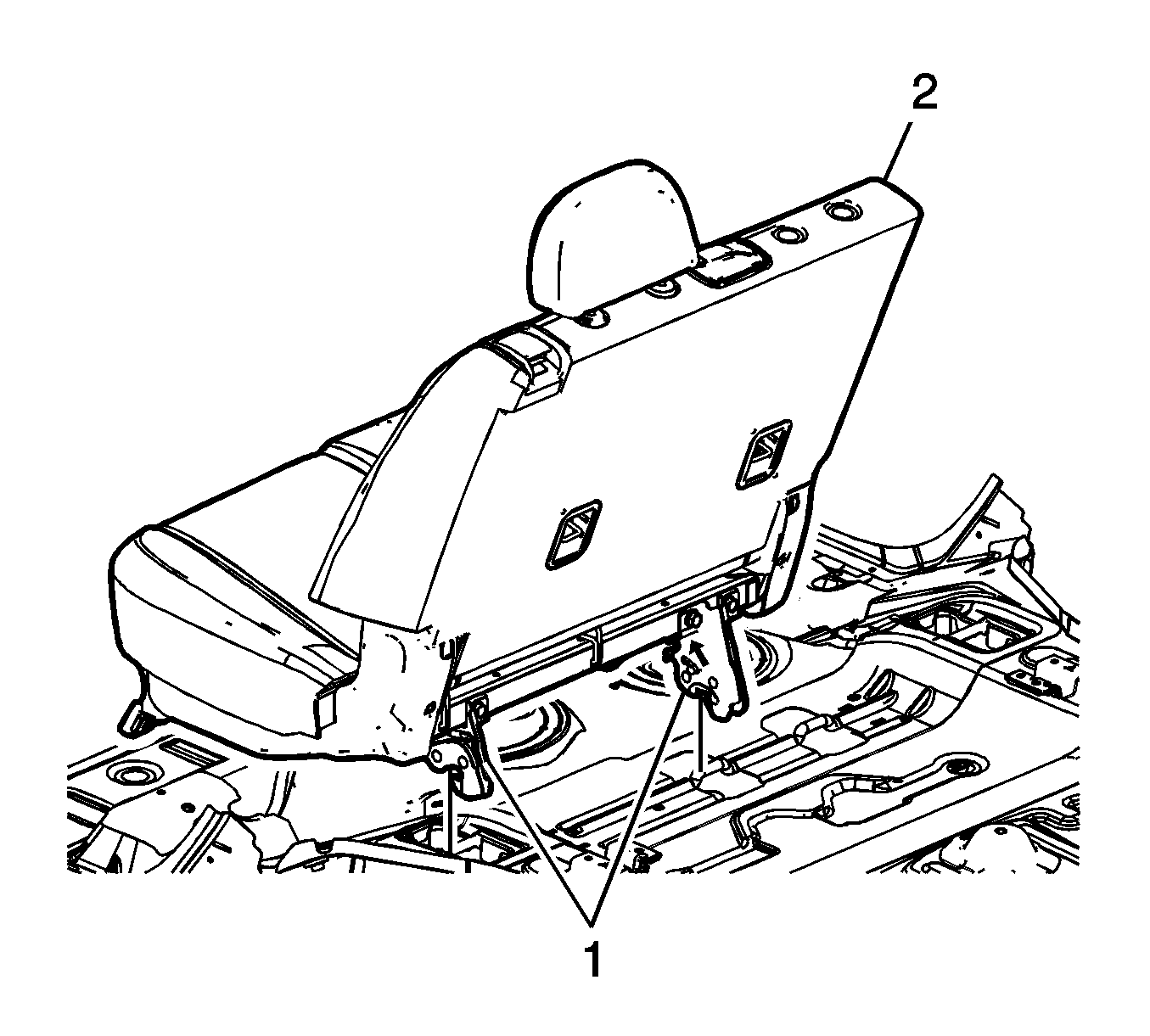

    Fig 1: Rear Seat
    GM1869287Courtesy of GENERAL MOTORS CORP.
  1. Install the rear seat (2) to the vehicle, locating the front seat riser pins into the floor.
  2. Secure the rear of the seat by pushing down on the back of the seat ensuring that the seat latch (1) is securely latched.
  3. Install the foam insulator over the spare tire and close the rear compartment floor stowage compartment cover.

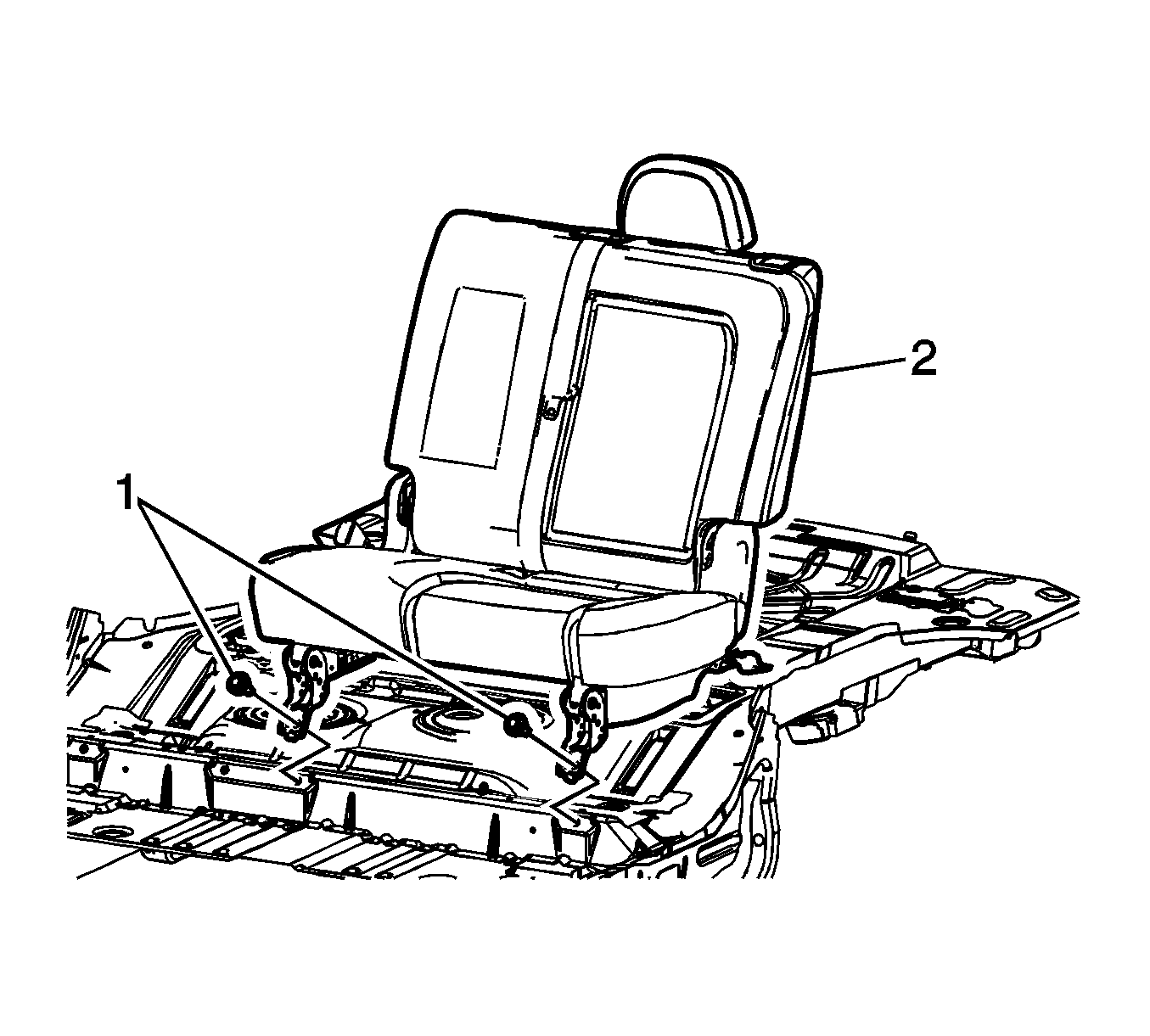

    4. Fig 2: Rear Seat Bolts
    GM1869286Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
  4. Install the 2 seat attachments bolts (1) to the front of the seat risers and tighten the bolts to 40 N.m (30 lb ft).
