Front Seat Head Restraint Guide Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

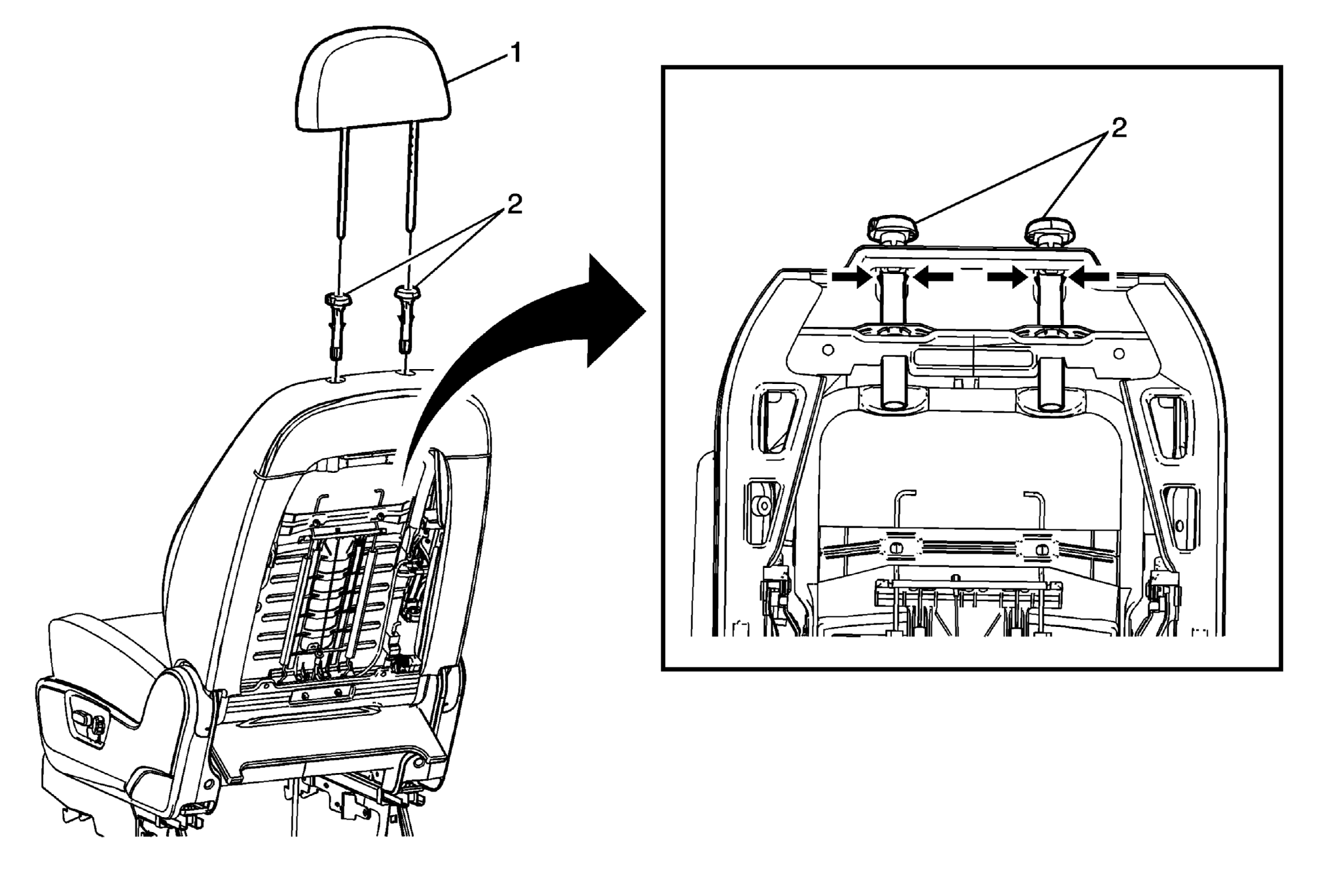

Fig 1: Front Seat Head Restraint Guide

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the front seat back panel. Refer to Driver or Passenger Seat Back Cushion Finish Panel Replacement .
1	Front Seat Head Restraint Procedure Depress the button on the left head restraint guide to raise the head restraint to the full up position. Insert a small diameter tool into the hole on the right side of the right head restraint guide and pull upward to remove.
2	Front Seat Head Restraint Guide (Qty: 2) Procedure Release the j-channel and reposition the seat back cushion cover to gain access to the release tabs on the guide. Squeeze the head restraint guides in the location shown and pull upward to remove from the seat back.

Callout

Component Name

Preliminary Procedure:
Remove the front seat back panel. Refer to Driver or Passenger Seat Back Cushion Finish Panel Replacement .

Front Seat Head Restraint

Procedure

Depress the button on the left head restraint guide to raise the head restraint to the full up position.
Insert a small diameter tool into the hole on the right side of the right head restraint guide and pull upward to remove.

Front Seat Head Restraint Guide (Qty: 2)

Procedure

Release the j-channel and reposition the seat back cushion cover to gain access to the release tabs on the guide.
Squeeze the head restraint guides in the location shown and pull upward to remove from the seat back.
