Driver or Passenger Seat Back Cushion Frame Replacement (with Power Seat)

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

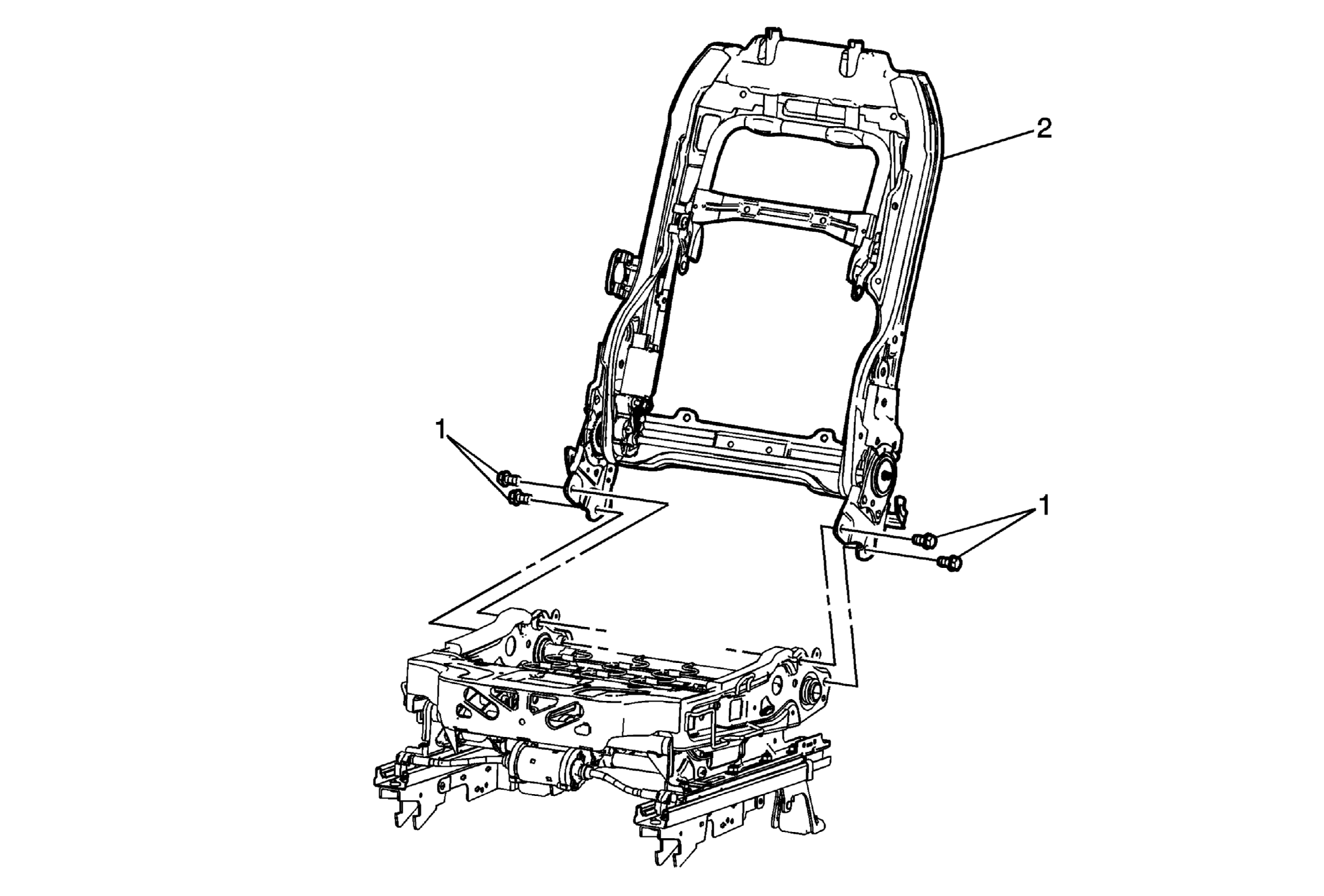

Fig 1: Front Seat Back Frame

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the front seat back cushion cover and pad. Refer to Driver or Passenger Seat Back Cushion Cover and Pad Replacement (without KA1) or Driver or Passenger Seat Back Cushion Cover and Pad Replacement (with KA1) . Remove the front seat cushion cover and pad. Refer to Front Seat Cushion Cover and Pad Replacement (without KA1) or Front Seat Cushion Cover and Pad Replacement (with KA1) .
1	Front Seat Back Frame Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten: 50 N.m (37 lb ft)
2	Front Seat Back Frame Procedure Disconnect the electrical connector. If replacing the seat back frame transfer components as necessary.

Callout

Component Name

Preliminary Procedures

Remove the front seat back cushion cover and pad. Refer to Driver or Passenger Seat Back Cushion Cover and Pad Replacement (without KA1) or Driver or Passenger Seat Back Cushion Cover and Pad Replacement (with KA1) .
Remove the front seat cushion cover and pad. Refer to Front Seat Cushion Cover and Pad Replacement (without KA1) or Front Seat Cushion Cover and Pad Replacement (with KA1) .

Front Seat Back Frame Bolt (Qty: 4)

CAUTION: Refer to Fastener Caution .

Tighten: 50 N.m (37 lb ft)

Front Seat Back Frame

Procedure

Disconnect the electrical connector.
If replacing the seat back frame transfer components as necessary.
