Headlights/Daytime Running Lights (DRL) Schematics

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

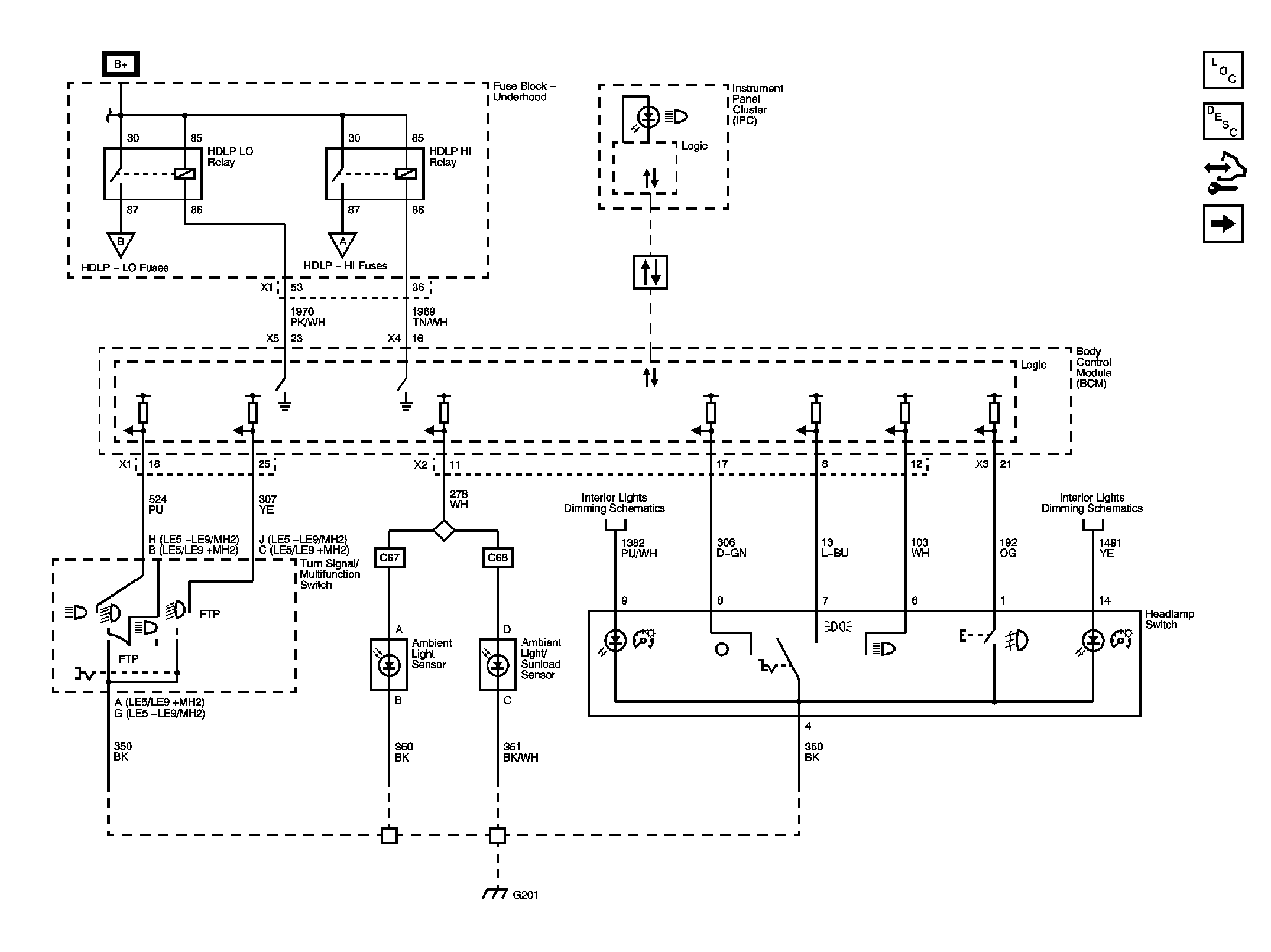

Fig 1: Headlights Controls
GM2079347Courtesy of GENERAL MOTORS CORP.

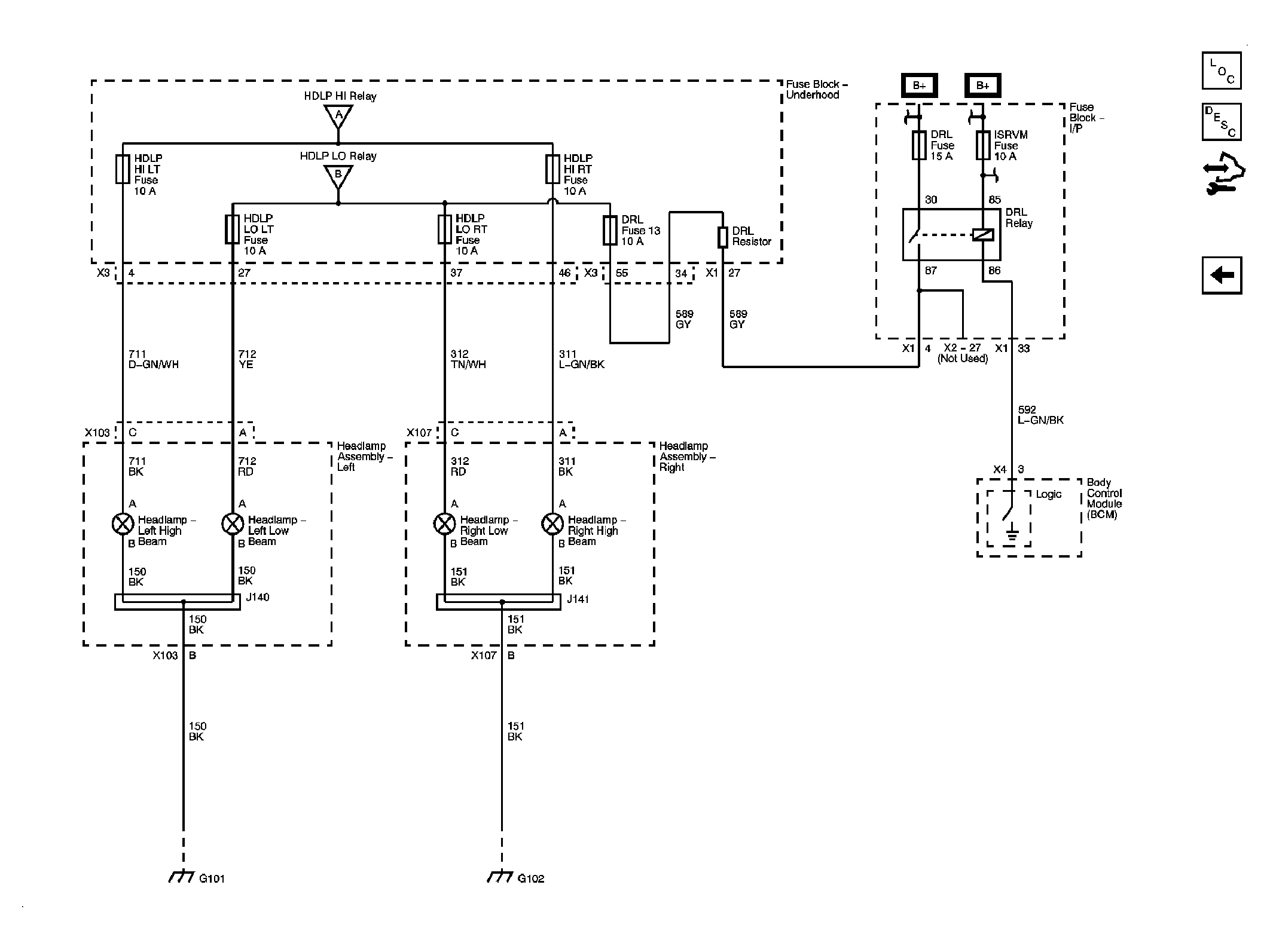

Fig 2: Headlights/DRL
GM2079349Courtesy of GENERAL MOTORS CORP.
