Exterior Lights Schematics

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

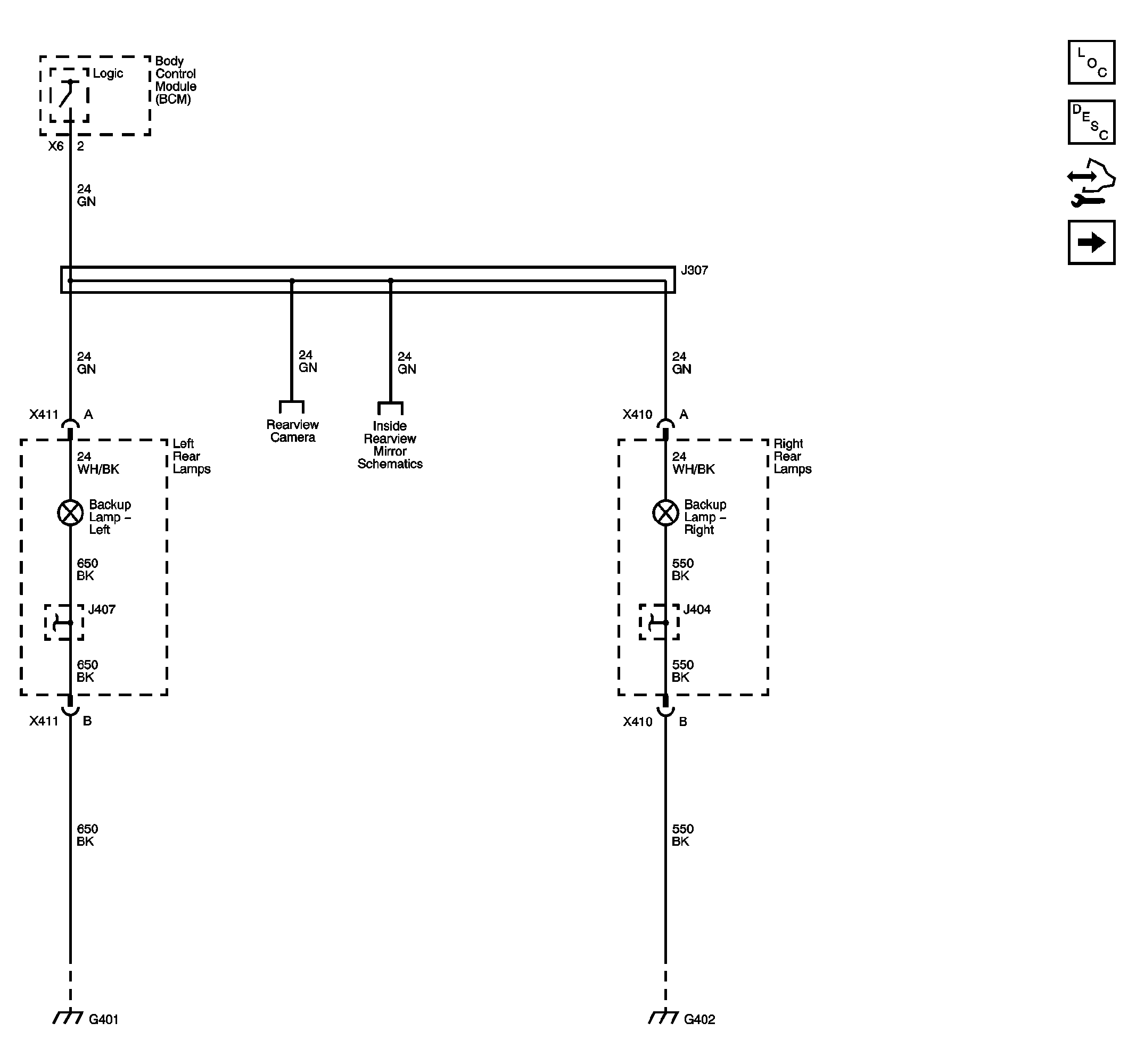

Fig 1: Backup Lamps

Courtesy of GENERAL MOTORS CORP.

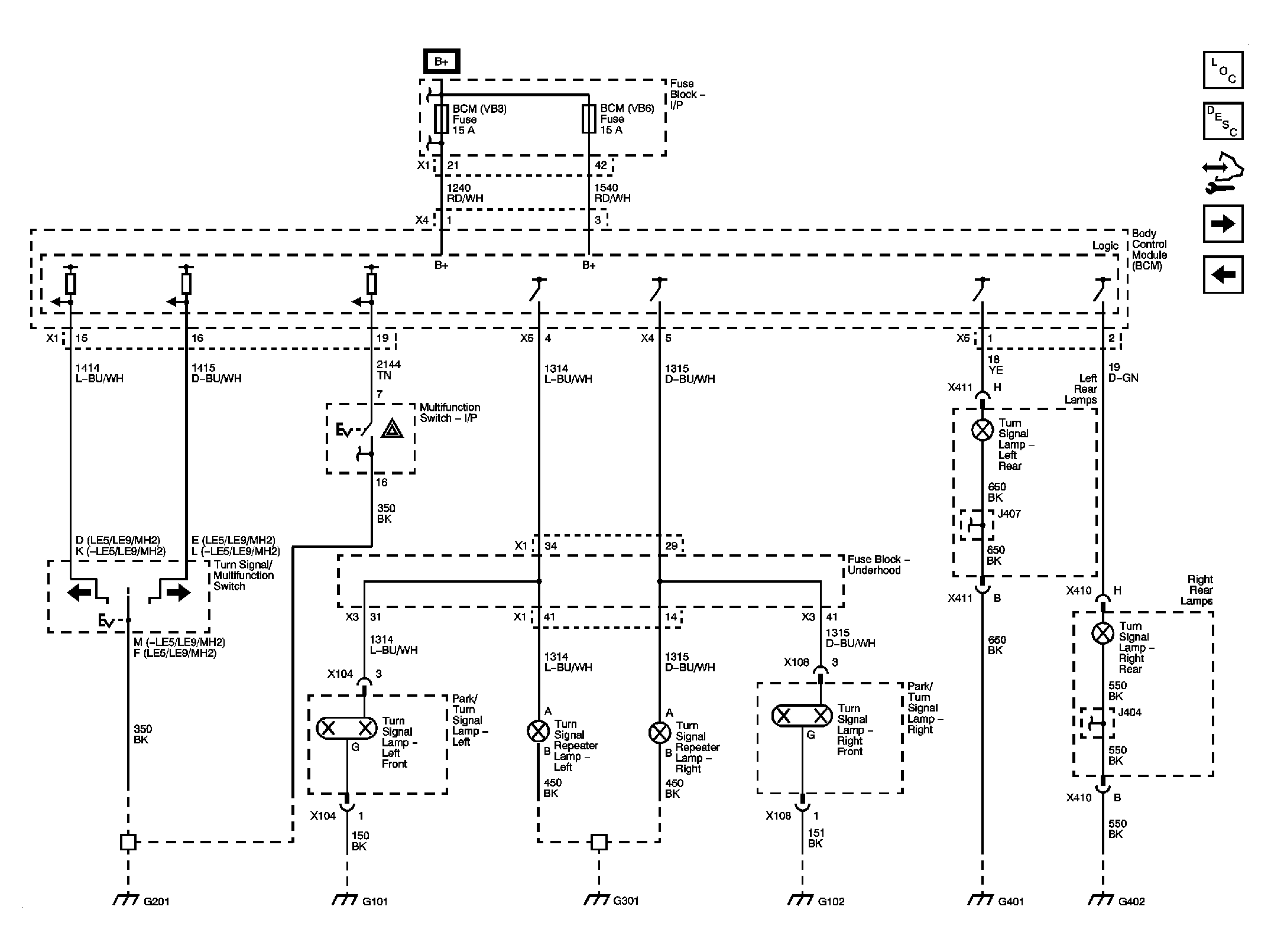

Fig 2: Turn/Hazard Lamps

Courtesy of GENERAL MOTORS CORP.

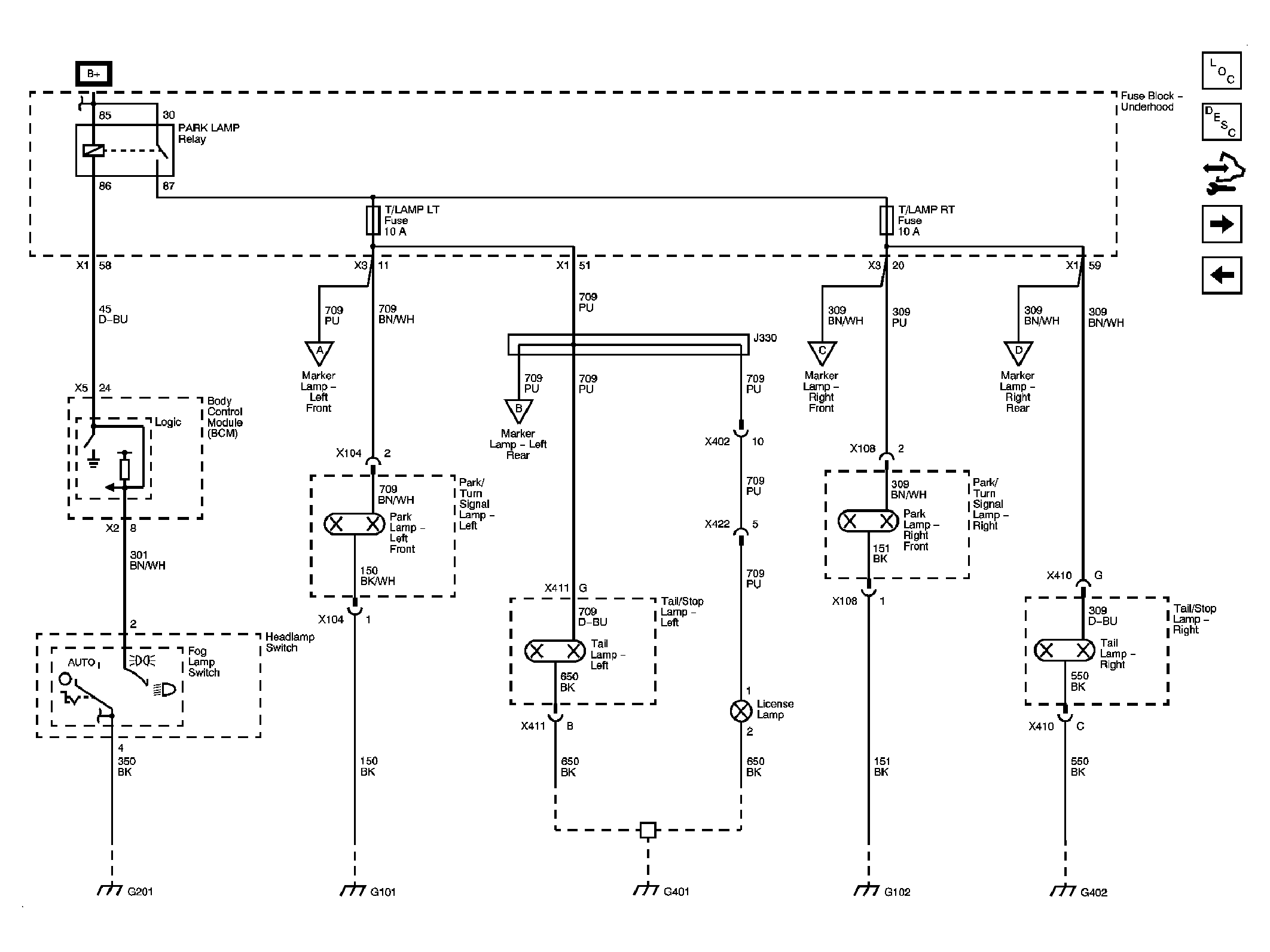

Fig 3: Park Lamps and License Lamp

Courtesy of GENERAL MOTORS CORP.

Fig 4: Marker Lamps

Courtesy of GENERAL MOTORS CORP.

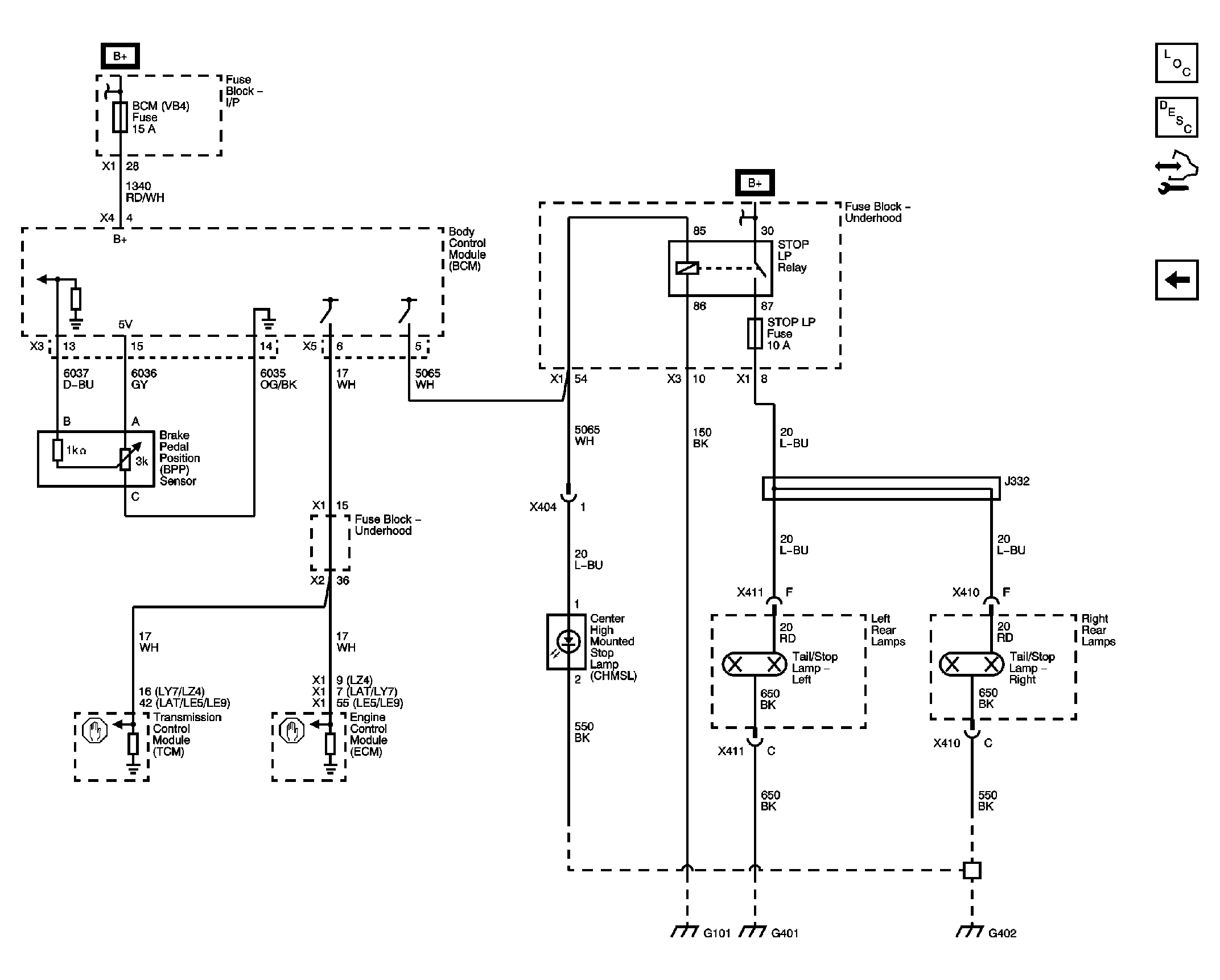

Fig 5: Stop Lamps

Courtesy of GENERAL MOTORS CORP.
