Tail Lamp Bulb Replacement (Back Up and Turn Signal)

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

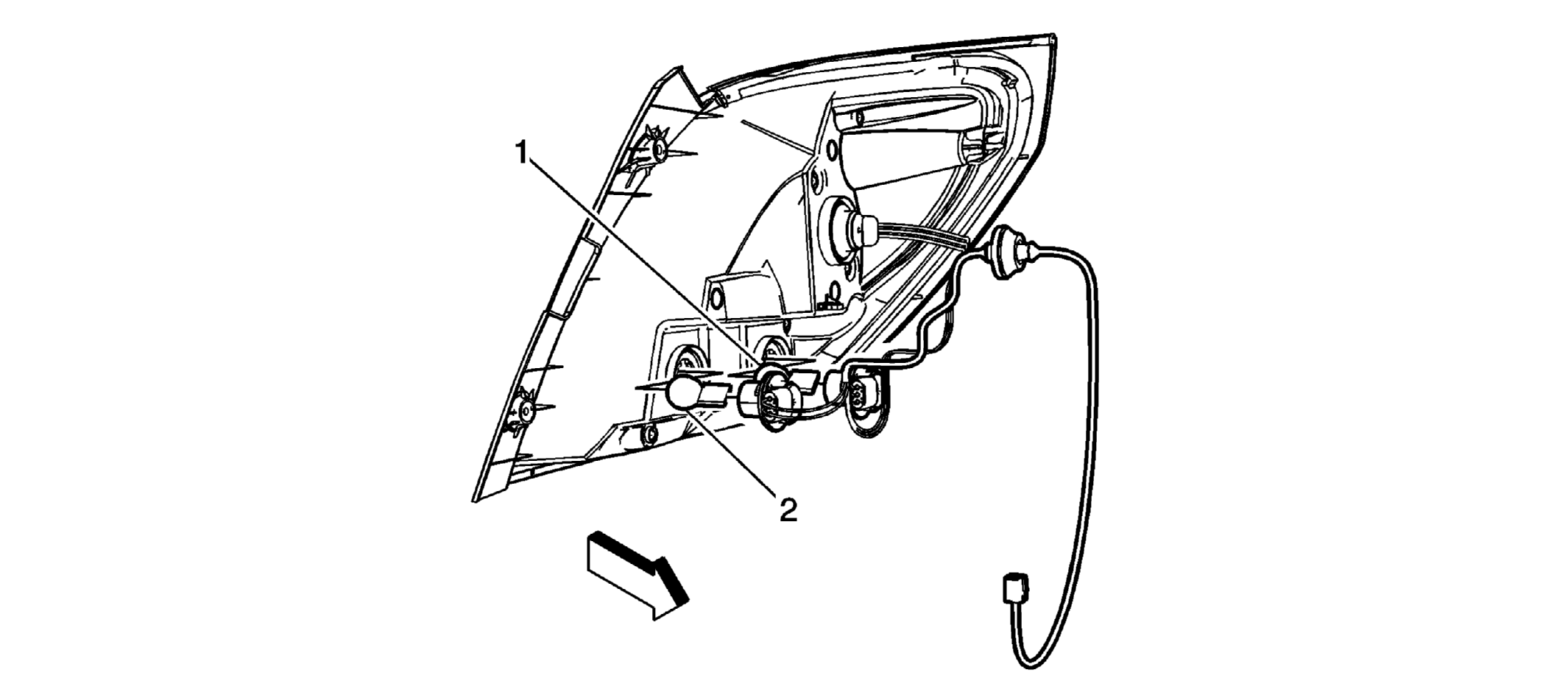

Fig 1: Tail Lamp Bulb

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the rear tail lamp assembly. Refer to Tail Lamp Replacement .
1	Turn Signal Bulb WARNING: Refer to Halogen Bulb Warning . Procedure Rotate the bulb socket counterclockwise from the tail lamp assembly. Pull the bulb from the bulb socket.
2	Back Up Bulb WARNING: Refer to Halogen Bulb Warning . Procedure Rotate the bulb socket counterclockwise from the tail lamp assembly. Pull the bulb from the bulb socket.

Callout

Component Name

Preliminary Procedure:
Remove the rear tail lamp assembly. Refer to Tail Lamp Replacement .

Turn Signal Bulb

WARNING: Refer to Halogen Bulb Warning .

Procedure

Rotate the bulb socket counterclockwise from the tail lamp assembly.
Pull the bulb from the bulb socket.

Back Up Bulb

WARNING: Refer to Halogen Bulb Warning .

Procedure

Rotate the bulb socket counterclockwise from the tail lamp assembly.
Pull the bulb from the bulb socket.
