Rear Compartment Courtesy Lamp Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

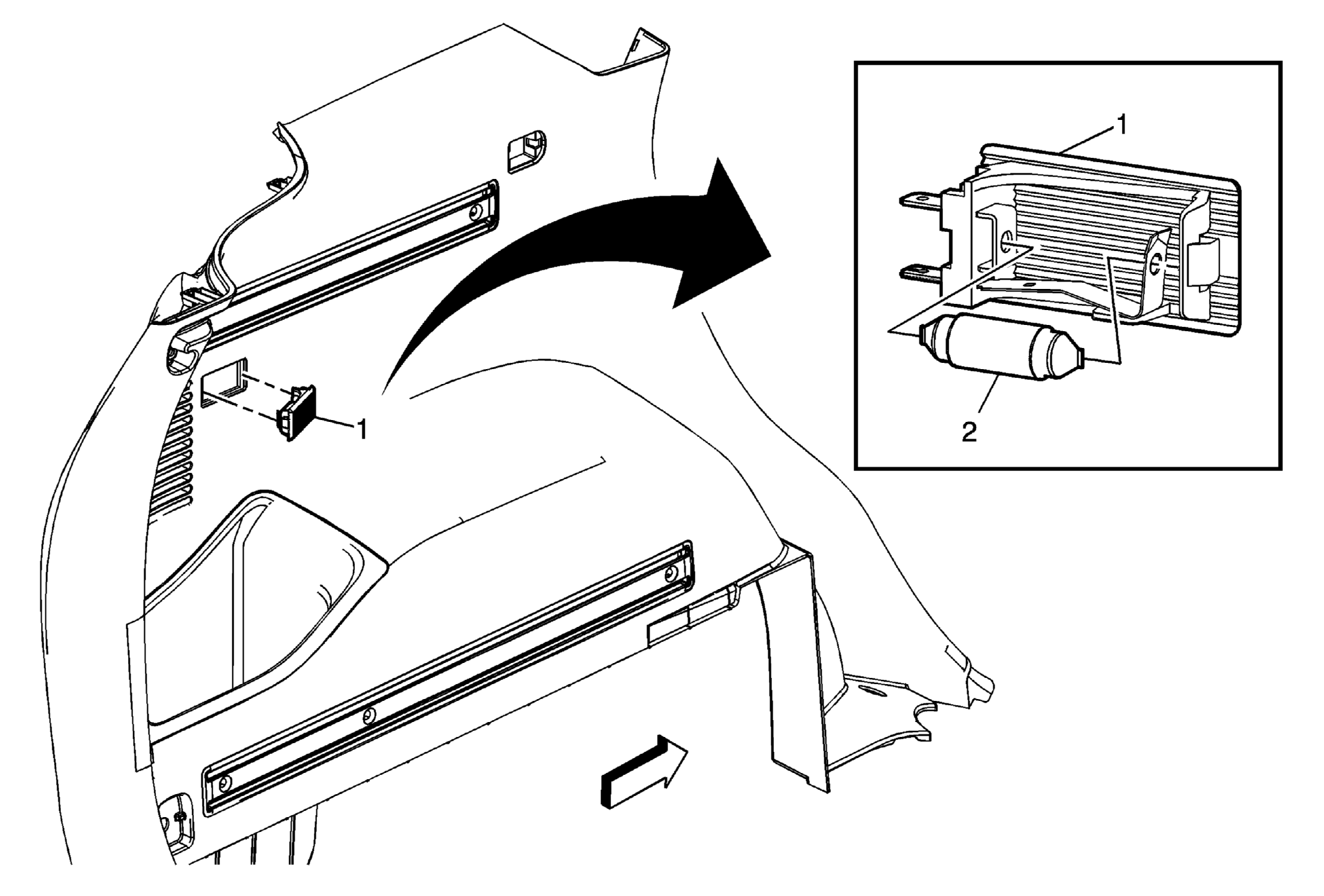

Fig 1: Rear Compartment Courtesy Lamp

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Compartment Courtesy Lamp Assembly Procedure Use a plastic flat bladed trim tool in order to release the lamp assembly from the rear quarter trim panel. Disconnect the electrical connection.
2	Rear Compartment Courtesy Lamp Bulb

Callout

Component Name

Rear Compartment Courtesy Lamp Assembly

Procedure

Use a plastic flat bladed trim tool in order to release the lamp assembly from the rear quarter trim panel.
Disconnect the electrical connection.

Rear Compartment Courtesy Lamp Bulb
