Parking and Turn Signal Lamp Bulb Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

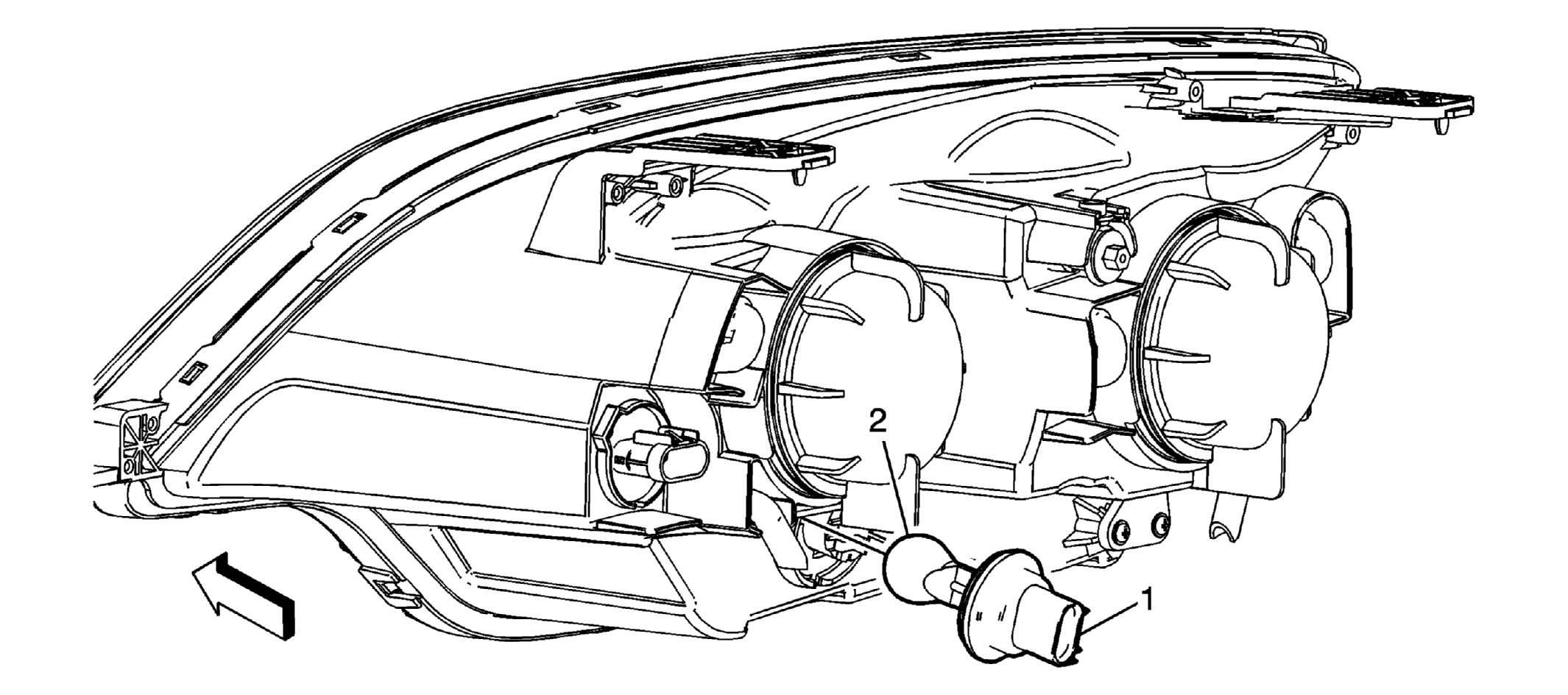

Fig 1: Park/Turn Signal Lamp Bulb

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the headlamp assembly. Refer to Headlamp Replacement . Disconnect the front turn signal bulb electrical connector from the bulb socket.
1	Park and Turn Signal Lamp Bulb Socket (Qty: 2) Procedure Rotate the bulb sockets counter clockwise in order to access and remove the bulbs. Aim the headlamps after the bulb replacement. Refer to Headlamp Aiming .
2	Front Park and Turn Signal Lamp Bulb

Callout

Component Name

Preliminary Procedures

Remove the headlamp assembly. Refer to Headlamp Replacement .
Disconnect the front turn signal bulb electrical connector from the bulb socket.

Park and Turn Signal Lamp Bulb Socket (Qty: 2)

Procedure

Rotate the bulb sockets counter clockwise in order to access and remove the bulbs.
Aim the headlamps after the bulb replacement. Refer to Headlamp Aiming .

Front Park and Turn Signal Lamp Bulb
