Headlamp Bulb Replacement (Low Beam)
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

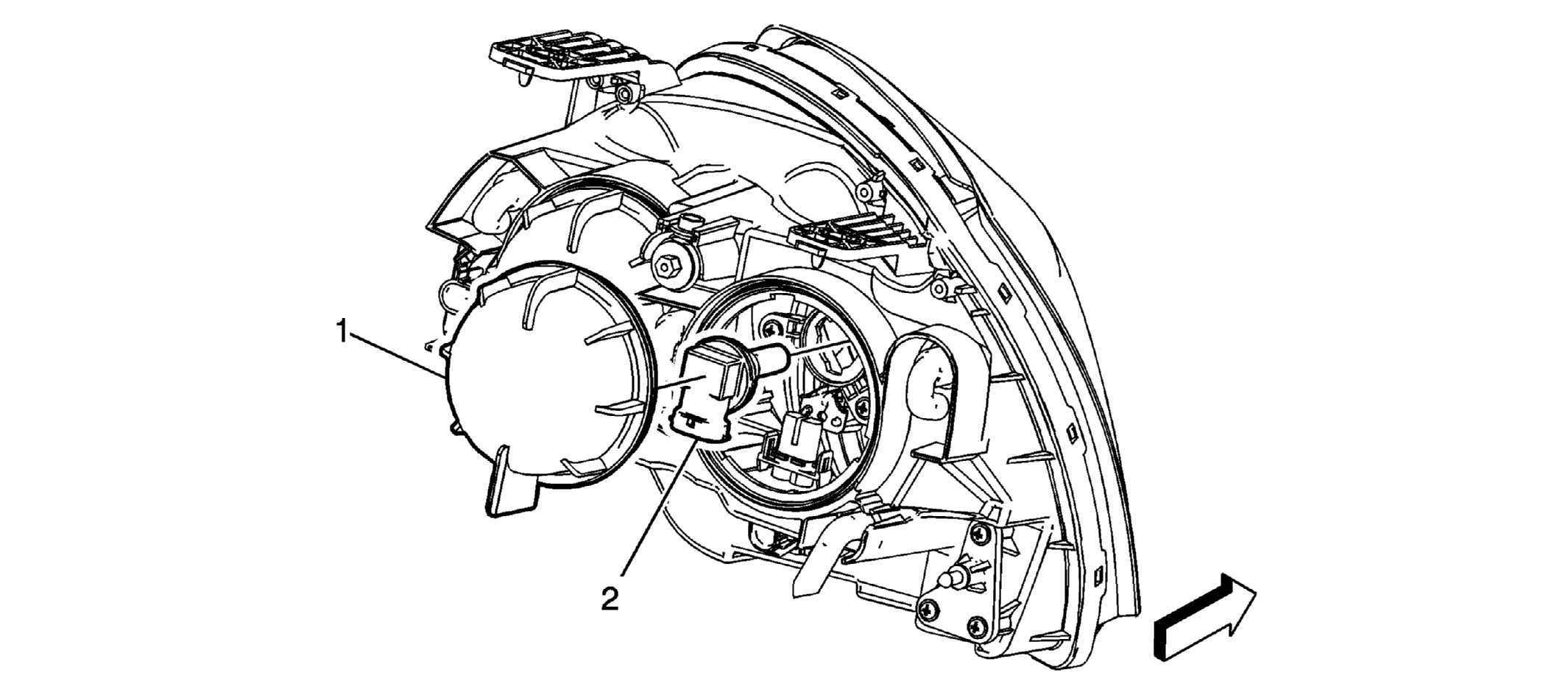

| Callout | Component Name |
|---|---|
|
WARNING:
Refer to Halogen Bulb Warning
. Procedure: Remove the headlamp assembly. Refer to Headlamp Replacement . |
|
| 1 | Headlamp Bulb Accessory Cover (Qty: 2) |
| 2 | Headlamp Bulb Assembly (Low Beam) Tip: Remove the bulb and disconnect the electrical connector. |
