Luggage Carrier Replacement
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

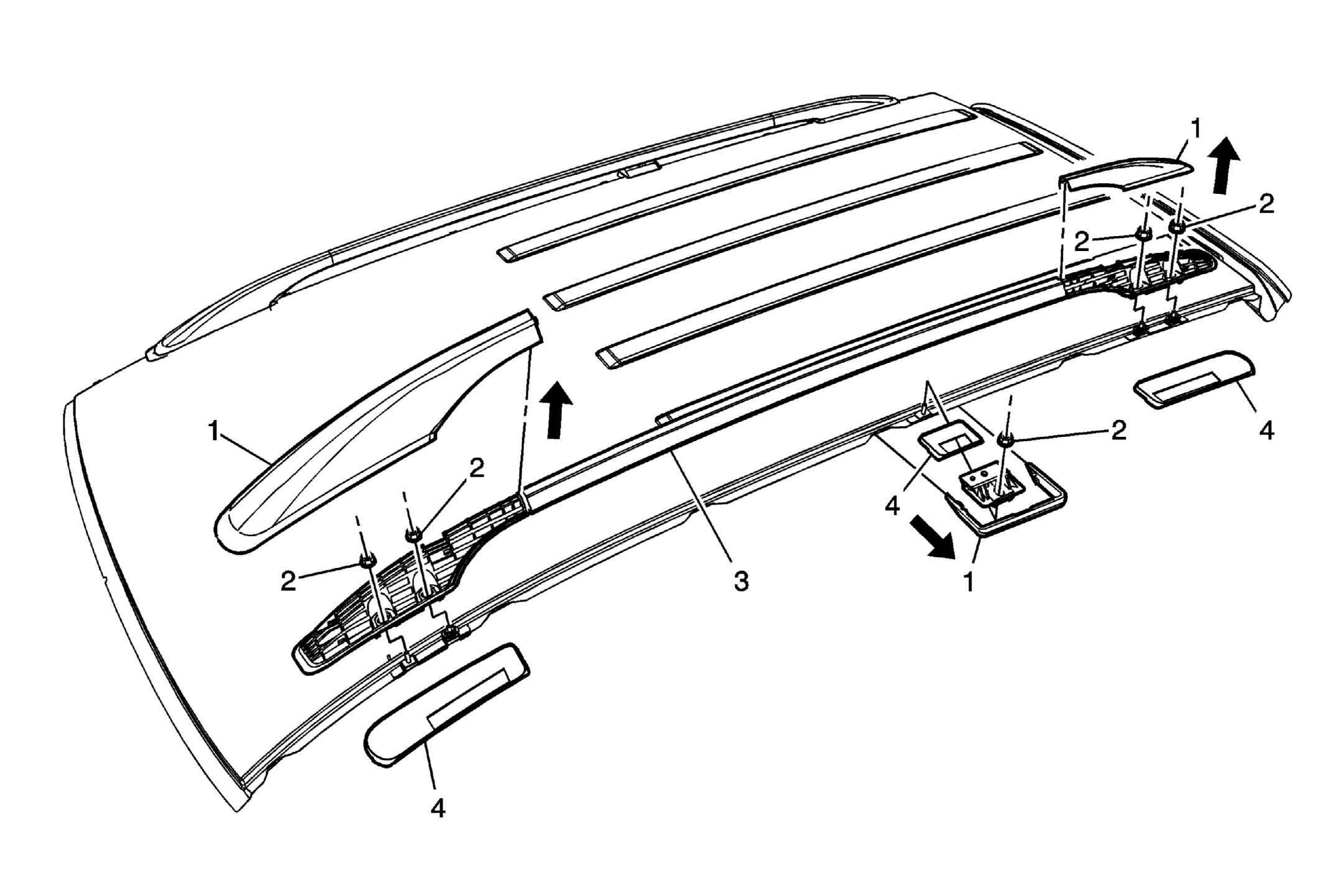

| Callout | Component Name |
|---|---|
| 1 | Luggage Carrier Side Rail Finish Cover (Qty: 3) Tip: Insert a suitable tool to the lower corner of the side rail finish cover, turn the tool lightly and lift upward to remove. |
| 2 | Luggage Carrier Side Rail Mounting Nut (Qty: 5)
CAUTION:
Refer to Fastener Caution
.
Tighten: 10N.m (89 lb in) |
| 3 | Luggage Carrier Side Rail |
| 4 | Luggage Carrier Side Rail Gasket (Qty: 3) |
