Trailer Hitch Replacement
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

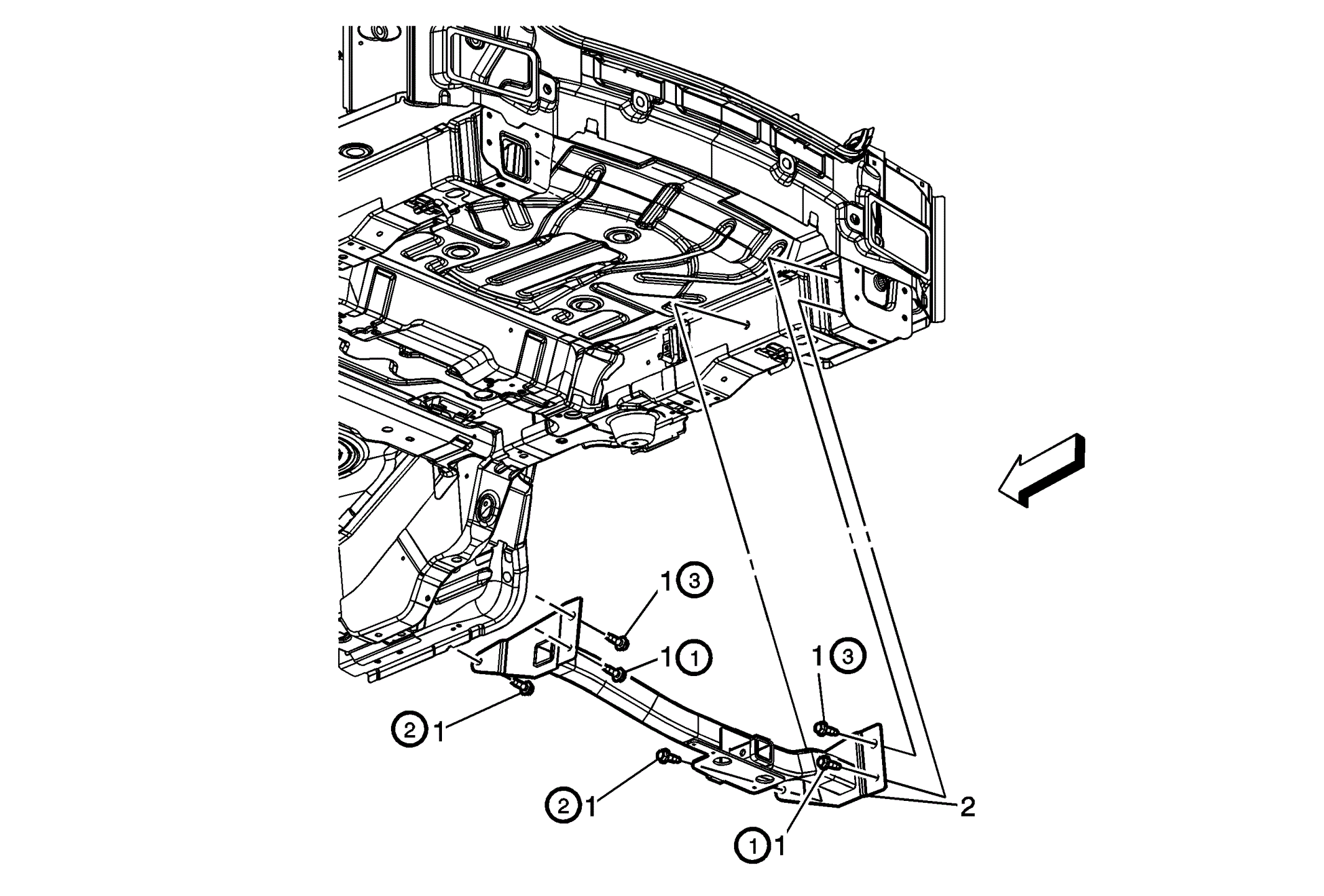

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Disconnect the trailer wire harness electrical connector. |
|
| 1 | Trailer Hitch Bolt (Qty: 6)
CAUTION:
Refer to Fastener Caution
. Procedure: Tighten the bolts in the specified sequence. Tighten: 100 N.m (74 lb ft) |
| 2 | Trailer Hitch |
