Removal Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the frame from the vehicle. Refer to Frame Replacement (4T45-E Transmission)  or Frame Replacement (6T70 Transmission)  or Frame Replacement (2MT70 Transmission) .
    2. Fig 1: Identifying Upper Frame Insulator
    GM1890895Courtesy of GENERAL MOTORS CORP.
  2. Remove the upper frame insulator (1)

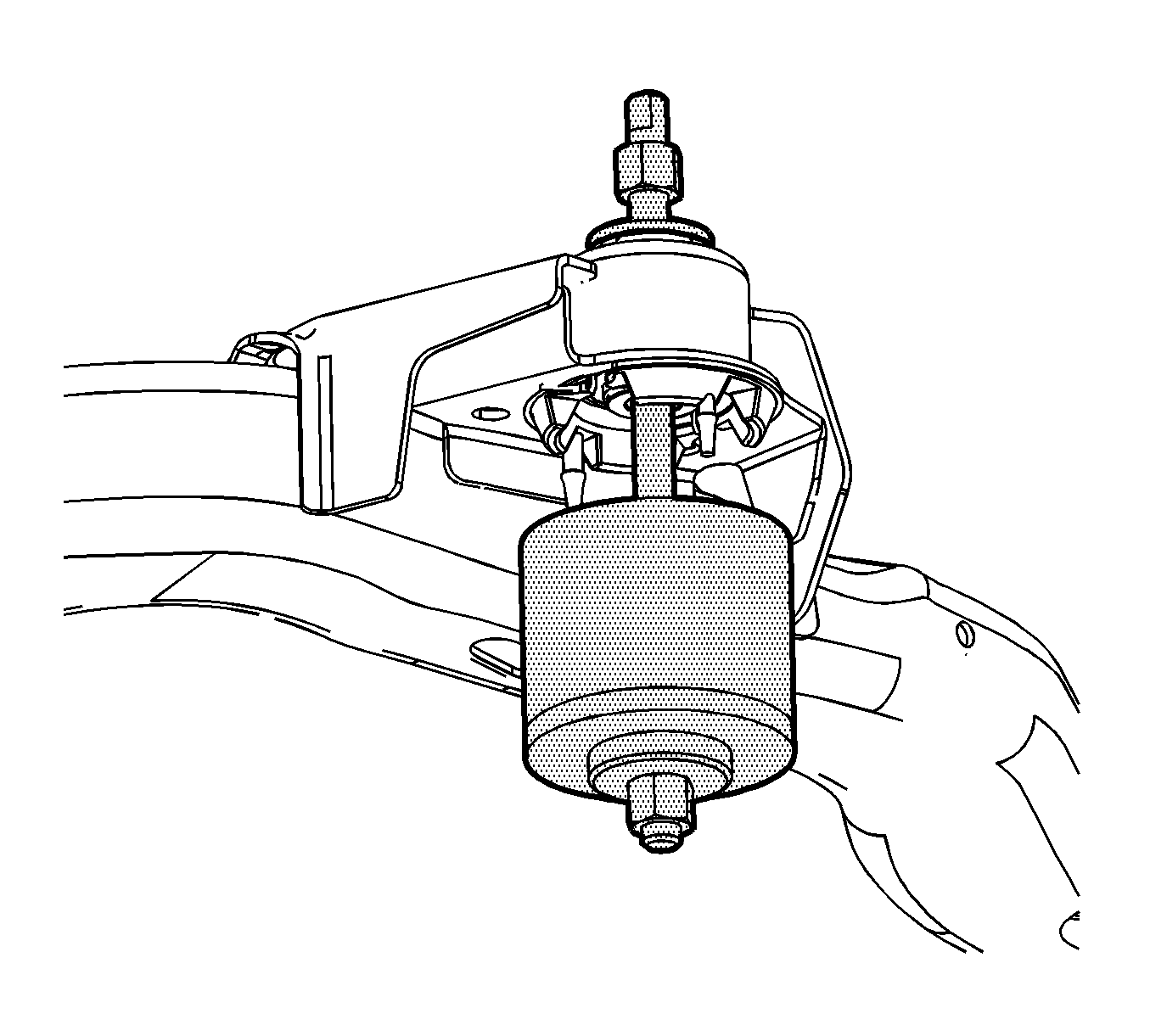

    3. Fig 2: Identifying CH-47672 Press
    GM1890906Courtesy of GENERAL MOTORS CORP.
  3. Assemble the CH-47672-A  press as shown, on the frame insulator being removed. See Special Tools .

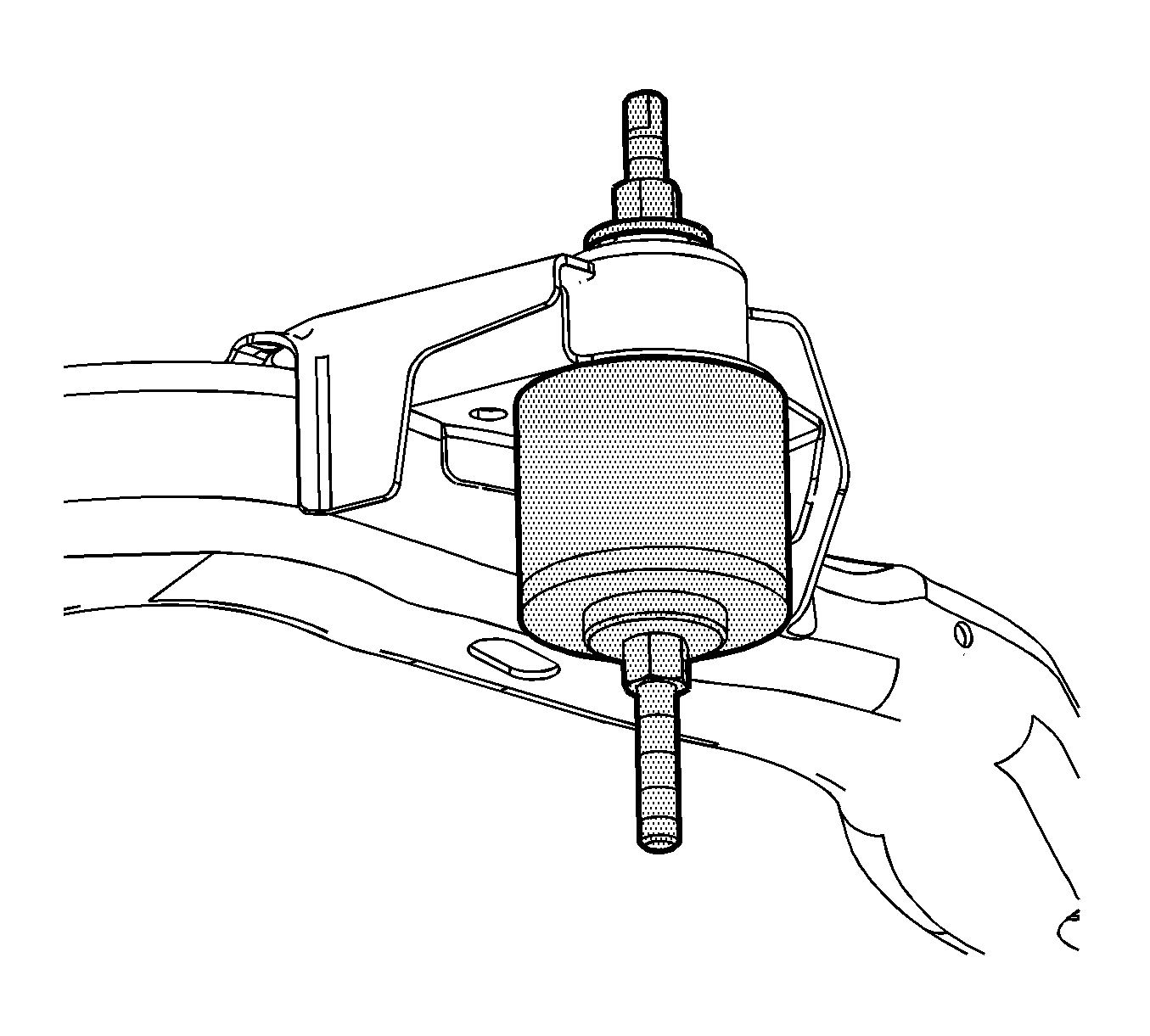

    4. Fig 3: View Of CH-47672 Press
    GM1890908Courtesy of GENERAL MOTORS CORP.
  4. Use the CH-47672-A  press to remove the frame insulator from the frame. See Special Tools .
