Rear Bumper Fascia Lower Skid Plate Replacement
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

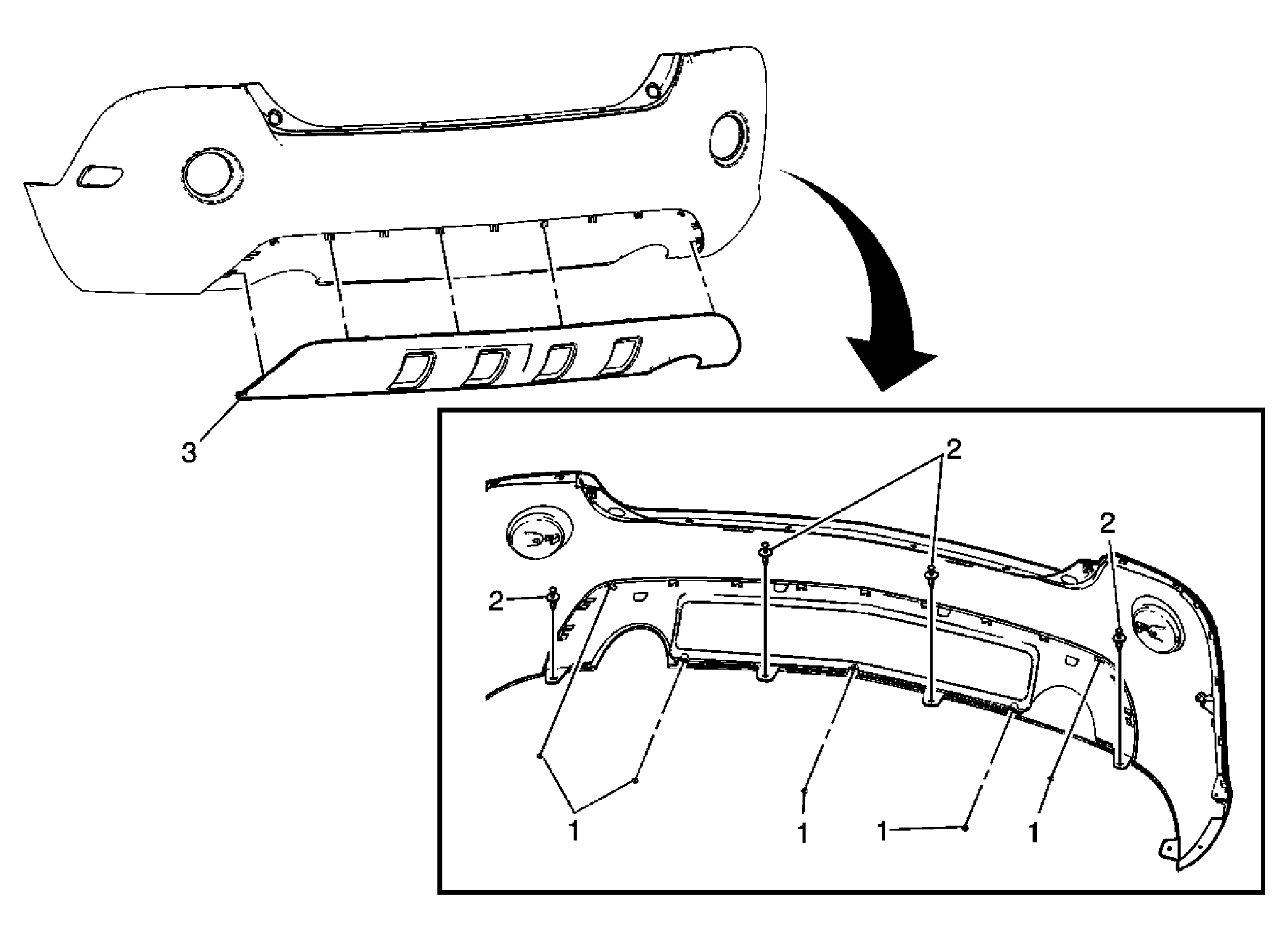

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . |
|
| 1 | Rear Bumper Fascia Skid Plate Push Pin (Qty: 4) |
| 2 | Rear Bumper Fascia Skid Plate Screw
CAUTION:
Refer to Fastener Caution
.
Tighten: 3 N.m (27 lb in) |
| 3 | Rear Bumper Fascia Skid Plate |
