Sunshade Anchor Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

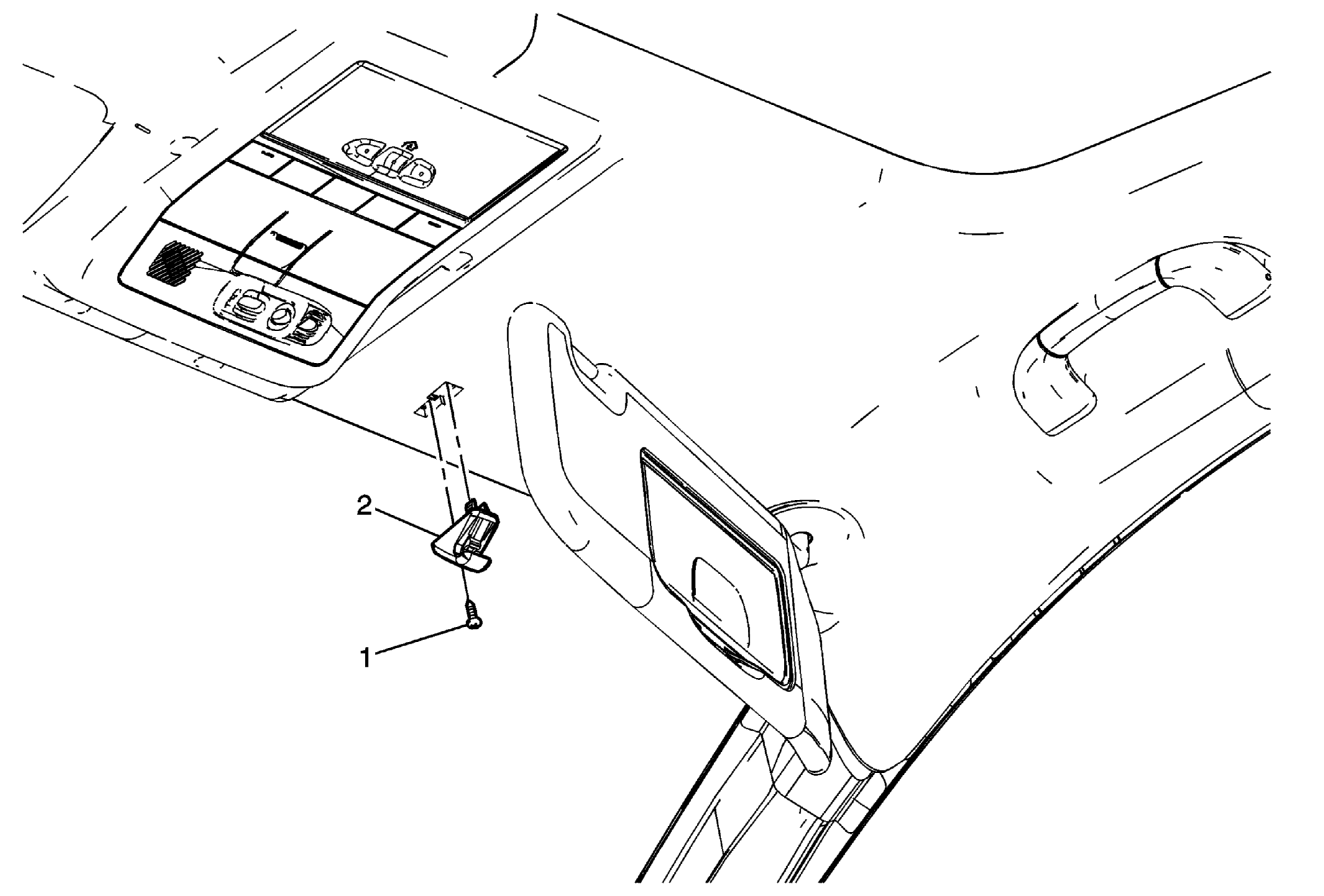

Fig 1: Sunshade Anchor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Sunshade Anchor Screw CAUTION: Refer to Fastener Caution . Tighten: 3 N.m (27 lb in)
2	Sunshade Anchor Tip: Disengage the sunshade from the retainer.
