Floor Panel Extension Support Replacement (2 Mode)
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

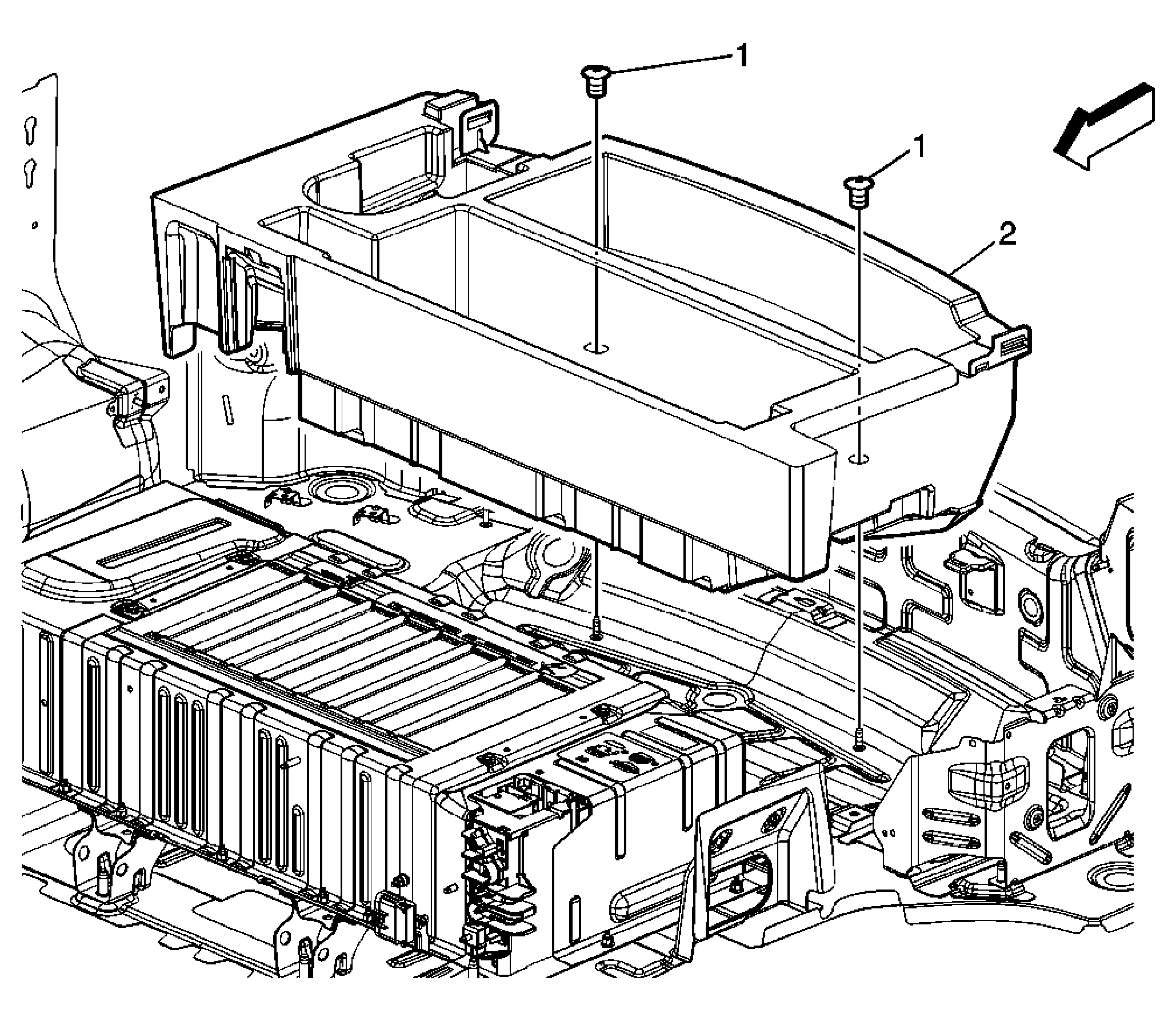

| Callout | Component Name |
|---|---|
| 1 | Rear Compartment Floor Stowage Compartment Fastener
CAUTION:
Refer to Fastener Caution
.
Tighten: 3 N.m (27 lb in) |
| 2 | Floor Panel Extension Support |
