Liftgate Emblem/Nameplate Replacement (VUE)

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

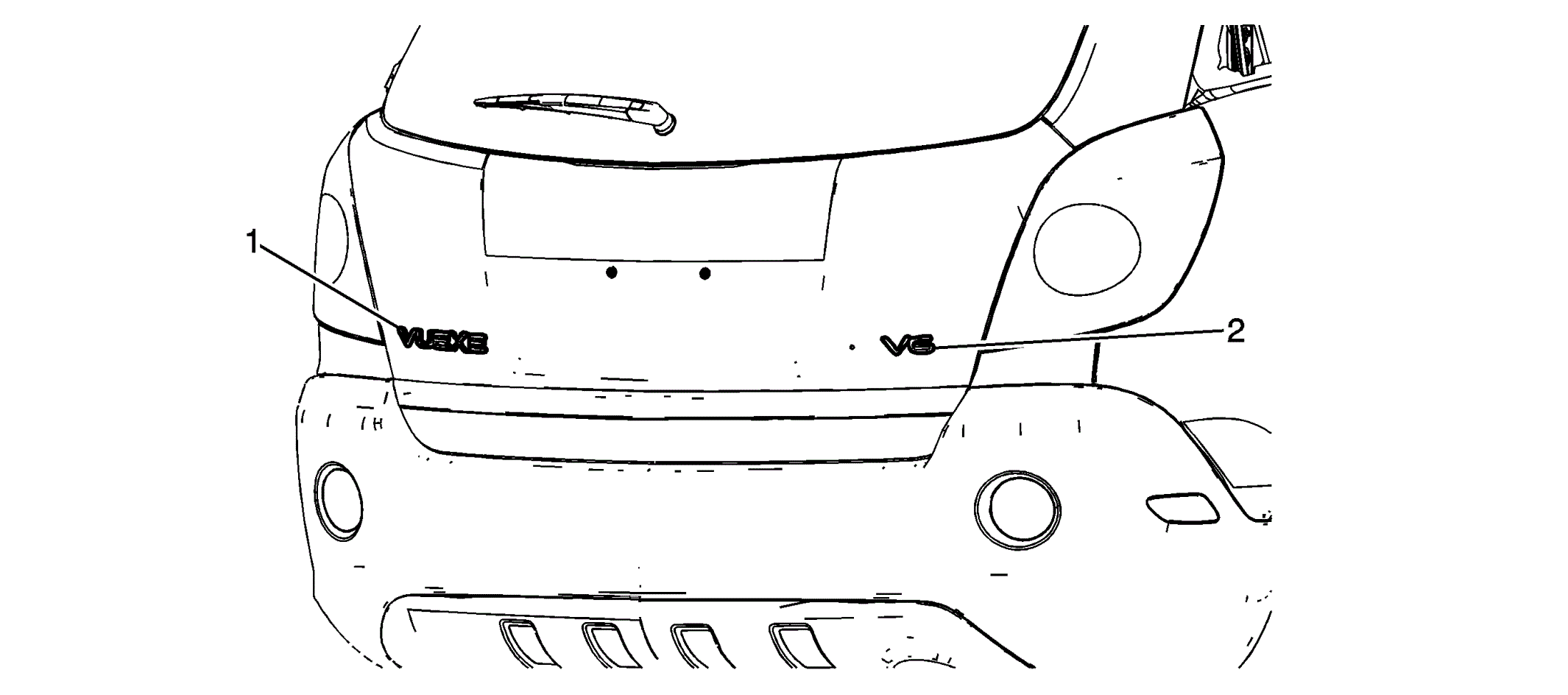

Fig 1: Liftgate Emblem/Nameplate

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Special Tools: J 25070 Heat Gun
1	Emblem/Nameplate VUE XE CAUTION: Refer to Exterior Trim Emblem Removal Caution . Procedure The part and surface should be 21°C (70°F) prior to installation. The vehicle should remain 21°C (70°F) for one hour after assembly to allow adhesive to develop sufficient bond strength. Use a J 25070 or equivalent to remove the old emblem. Clean all adhesive from rear liftgate and wipe the surface dry with a clean lint-free towel prior to installing the new emblem/nameplate. When removing protective liners from the adhesive tape, be careful not to touch tape with hands and do not allow tape to come in contact with dirt or any foreign matter prior to adhesion. Close the liftgate. Wet out the emblem and ensure full adhesion of the emblem to the liftgate is made.
2	Emblem/Nameplate V6 CAUTION: Refer to Exterior Trim Emblem Removal Caution . Procedure The part and surface should be 21°C (70°F) prior to installation. The vehicle should remain 21°C (70°F) for one hour after assembly to allow adhesive to develop sufficient bond strength. Use a J 25070 or equivalent to remove the old emblem. Clean all adhesive from rear liftgate and wipe the surface dry with a clean lint-free towel prior to installing the new emblem/nameplate. When removing protective liners from the adhesive tape, be careful not to touch tape with hands and do not allow tape to come in contact with dirt or any foreign matter prior to adhesion. Close the liftgate. Wet out the emblem and ensure full adhesion of the emblem to the liftgate is made.

Callout

Component Name

Special Tools:
J 25070 Heat Gun

Emblem/Nameplate VUE XE

CAUTION: Refer to Exterior Trim Emblem Removal Caution .

Procedure

The part and surface should be 21°C (70°F) prior to installation. The vehicle should remain 21°C (70°F) for one hour after assembly to allow adhesive to develop sufficient bond strength.
Use a J 25070 or equivalent to remove the old emblem. Clean all adhesive from rear liftgate and wipe the surface dry with a clean lint-free towel prior to installing the new emblem/nameplate.
When removing protective liners from the adhesive tape, be careful not to touch tape with hands and do not allow tape to come in contact with dirt or any foreign matter prior to adhesion.
Close the liftgate.
Wet out the emblem and ensure full adhesion of the emblem to the liftgate is made.

Emblem/Nameplate V6

CAUTION: Refer to Exterior Trim Emblem Removal Caution .

Procedure

The part and surface should be 21°C (70°F) prior to installation. The vehicle should remain 21°C (70°F) for one hour after assembly to allow adhesive to develop sufficient bond strength.
Use a J 25070 or equivalent to remove the old emblem. Clean all adhesive from rear liftgate and wipe the surface dry with a clean lint-free towel prior to installing the new emblem/nameplate.
When removing protective liners from the adhesive tape, be careful not to touch tape with hands and do not allow tape to come in contact with dirt or any foreign matter prior to adhesion.
Close the liftgate.
Wet out the emblem and ensure full adhesion of the emblem to the liftgate is made.
