Front Side Door Lower Molding Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

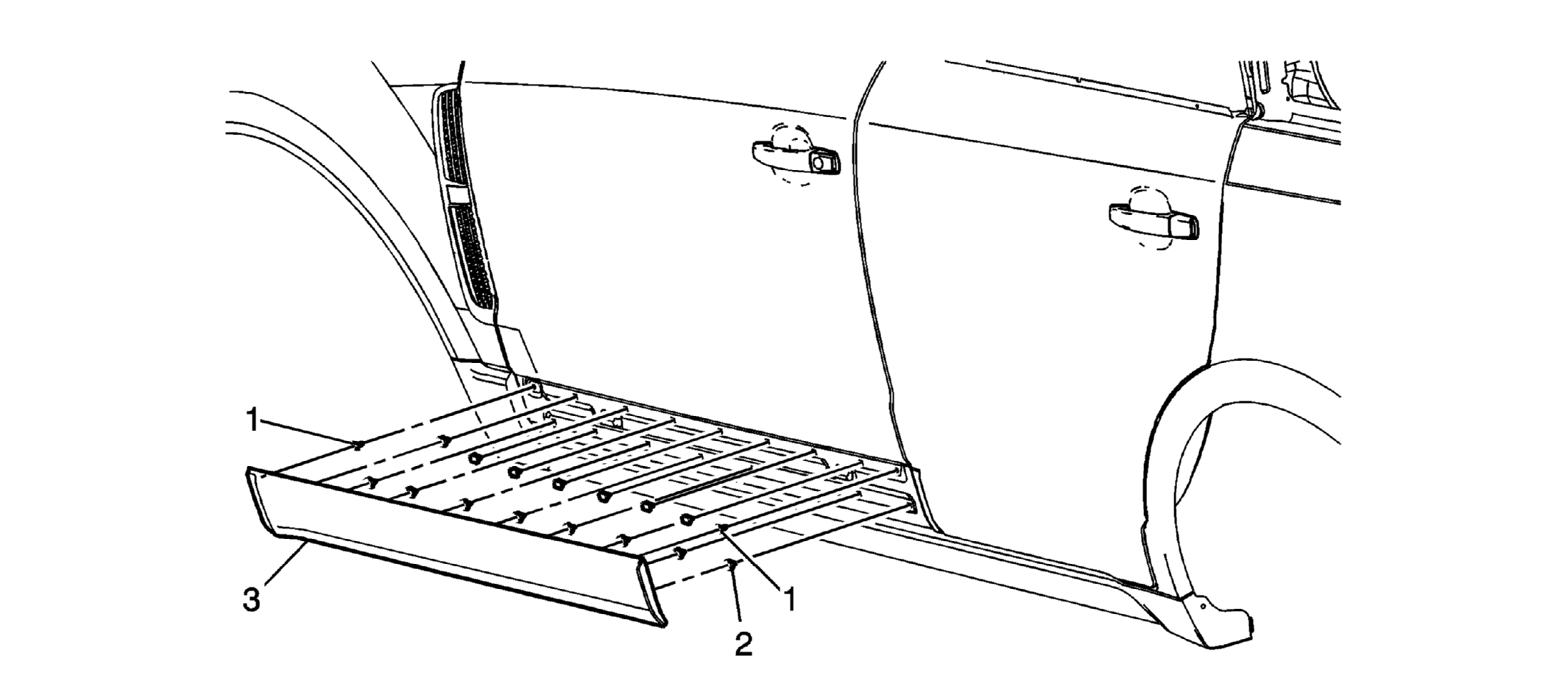

Fig 1: Front Side Door Lower Molding

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Open either the driver or passenger door to assist in removal of the lower door molding. Remove the 2 front side door lower molding nuts securing the molding to the inner door.
1	Lower Door Molding Locator Bolt/Pin (Qty: 2) Procedure Align the outer pins to the door. Align the retainers and apply pressure to the exterior lower door molding to seat. Install the front side door lower molding nuts and finger tighten.
2	Lower Door Molding Retainer (Qty: 15) Procedure: Release the lower retainers working upward on the molding.
3	Lower Door Molding Assembly Tip: Ensure the door is in the closed position prior to installing the lower molding to the door.
