Removal Procedure

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 GMC Sierra, 2002 Chevrolet Tahoe, and 2002 Chevrolet Suburban. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle. Refer to LIFTING & JACKING THE VEHICLE .
  2. Remove the front differential carrier shield, if equipped. Refer to SHIELD REPLACEMENT .

    Important:  Make note of the routing in order to aid in reassembly.

  3. Remove the vent hose (1) from the wiring bundle (2).
  4. Remove the vent hose from the clip.

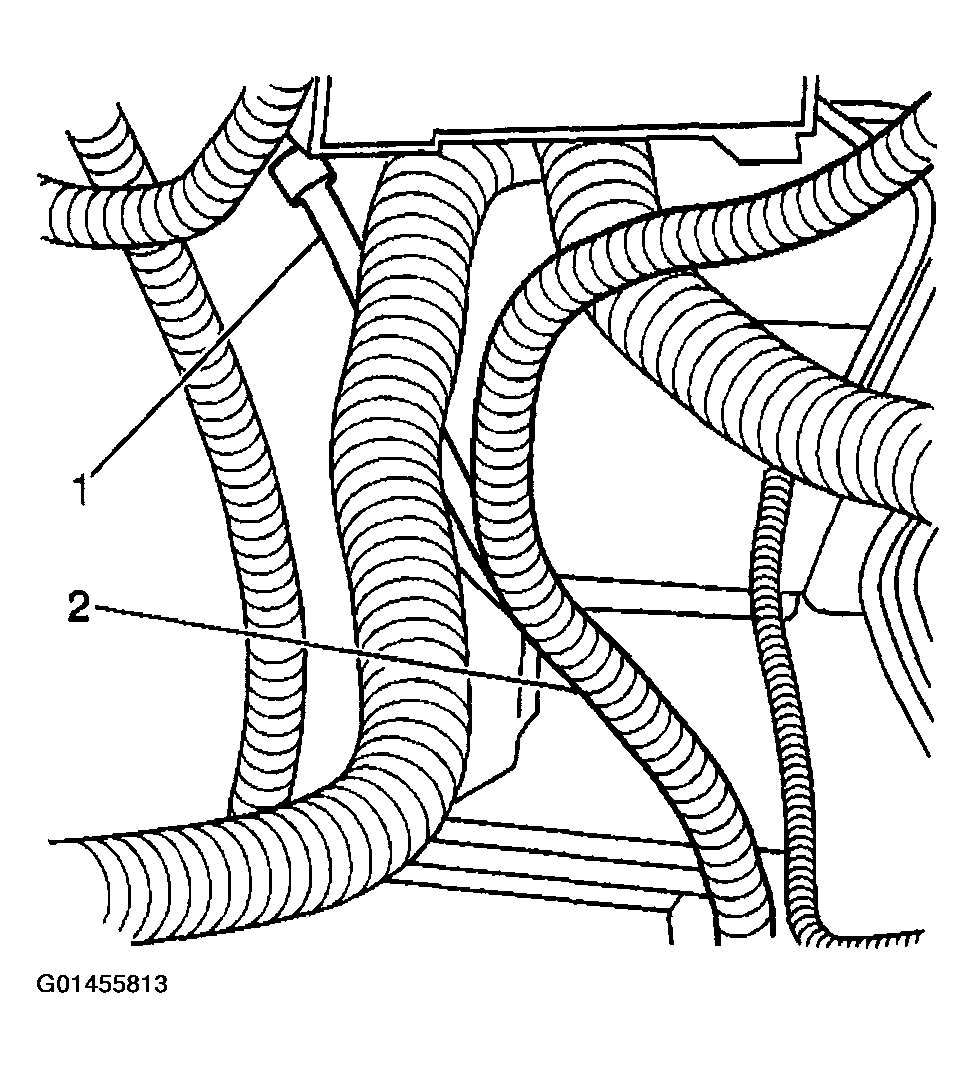

    Fig 1: Removing Vent Hose From Wiring Bundle
    G01455813Courtesy of GENERAL MOTORS CORP.
  5. Remove the vent hose from the differential carrier assembly.
  6. Remove the vent hose from the vehicle.

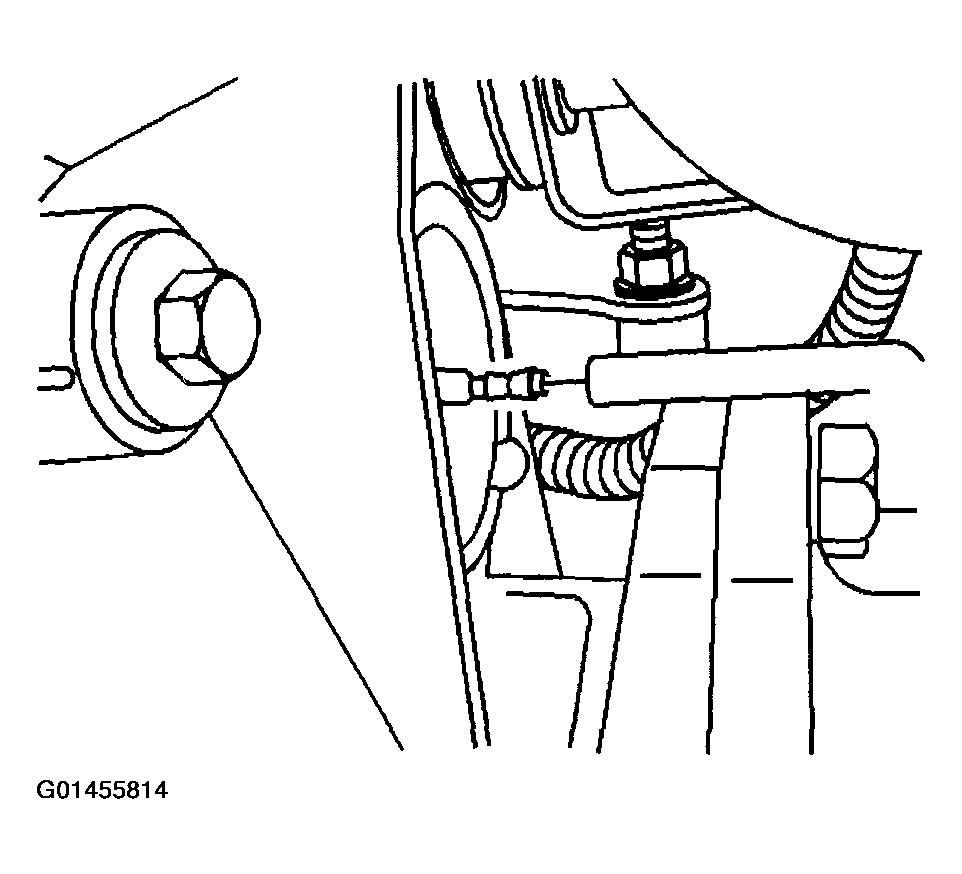

    Fig 2: Removing Vent Hose From Differential Carrier Assembly
    G01455814Courtesy of GENERAL MOTORS CORP.
