Installation Procedure

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 GMC Sierra, 2002 Chevrolet Tahoe, and 2002 Chevrolet Suburban. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the vent hose to the vehicle.
    • Route the vent hose the same way as when removed.
    • Ensure the hose is free of kinks and routes clear of sharp components.
    • Ensure the vent hose is not plugged.
  2. Connect the vent hose to the differential carrier assembly.

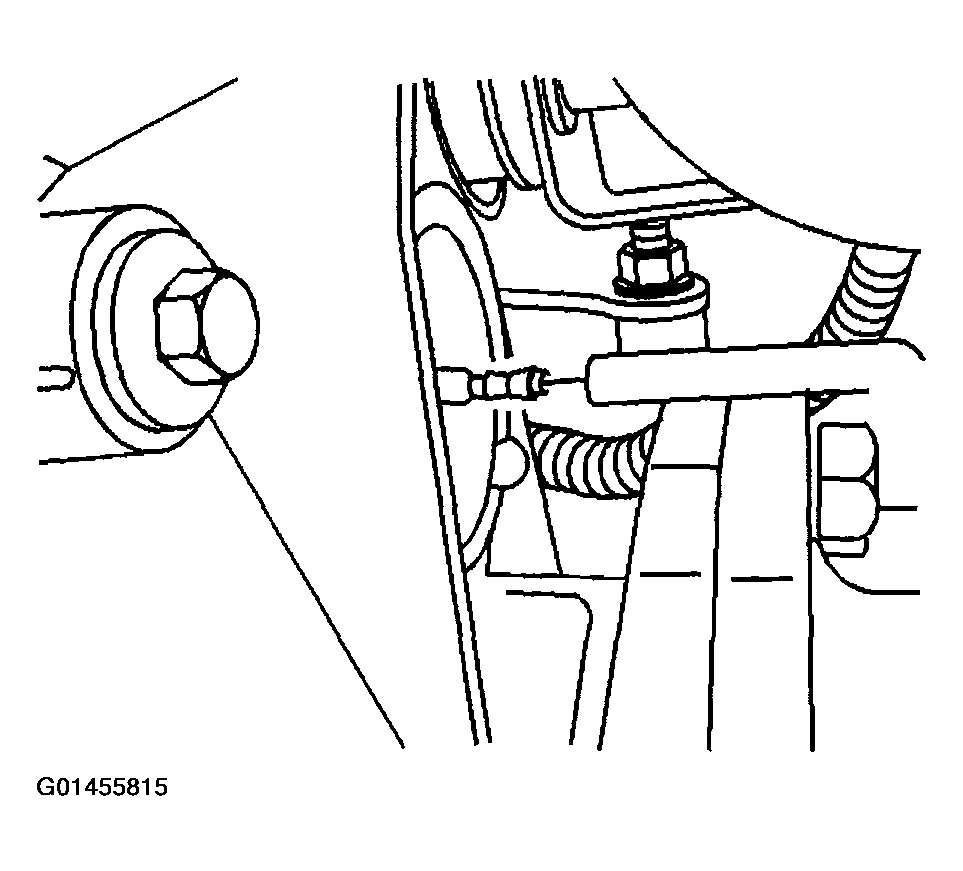

    Fig 1: Connecting Vent Hose To Differential Carrier Assembly
    G01455815Courtesy of GENERAL MOTORS CORP.
  3. Install the vent hose (1) to the wiring bundle (2).
  4. Install the vent hose to the clip.
  5. Install the front differential carrier shield, if equipped. Refer to SHIELD REPLACEMENT .
  6. Lower the vehicle.

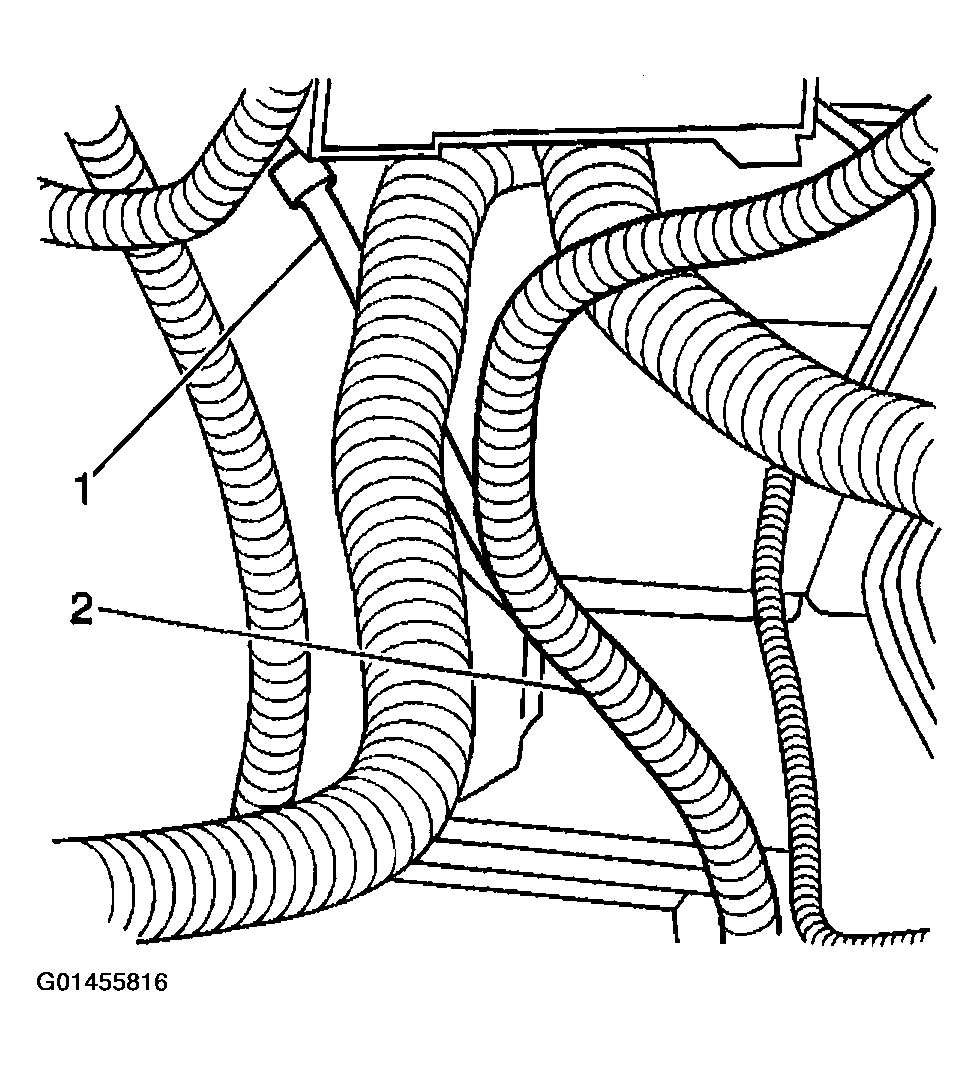

    Fig 2: Installing Vent Hose To Wiring Bundle
    G01455816Courtesy of GENERAL MOTORS CORP.
