Removal Procedure

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 GMC Sierra, 2002 Chevrolet Tahoe, and 2002 Chevrolet Suburban. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle. Refer LIFTING & JACKING THE VEHICLE .
  2. Disconnect the vent hose from the vent hose connector.

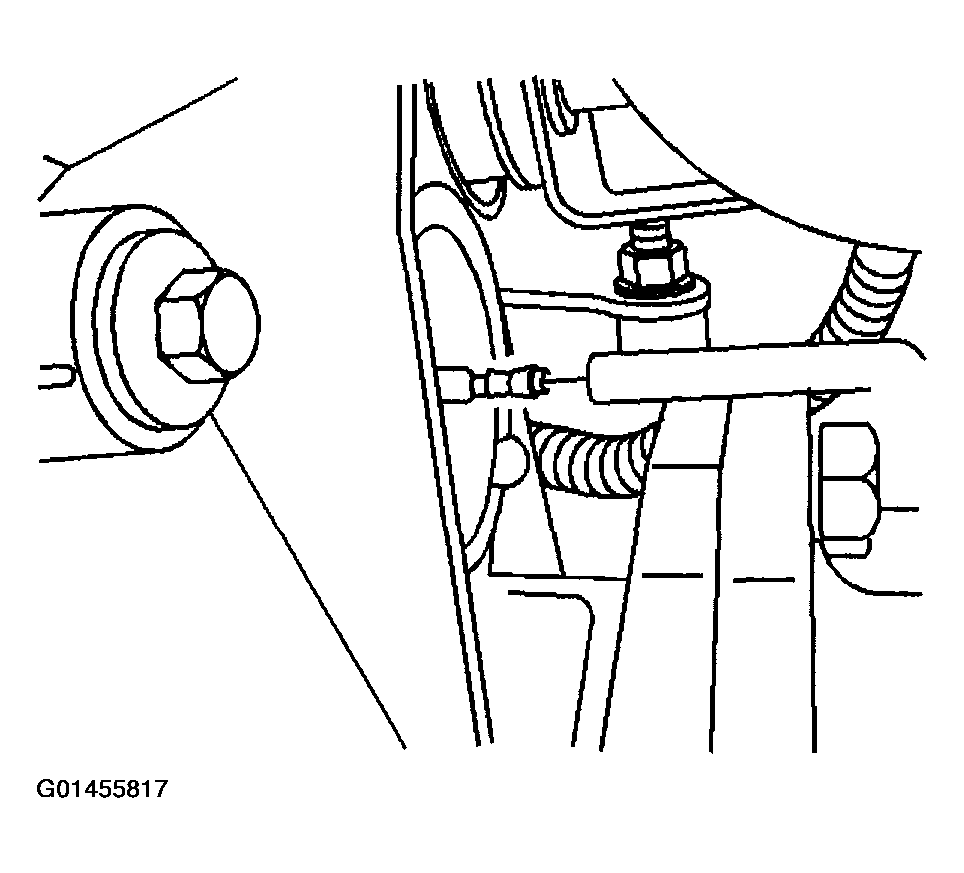

    Fig 1: Disconnecting Vent Hose From Vent Hose Connector
    G01455817Courtesy of GENERAL MOTORS CORP.
  3. Remove the vent hose connector from the differential carrier assembly.

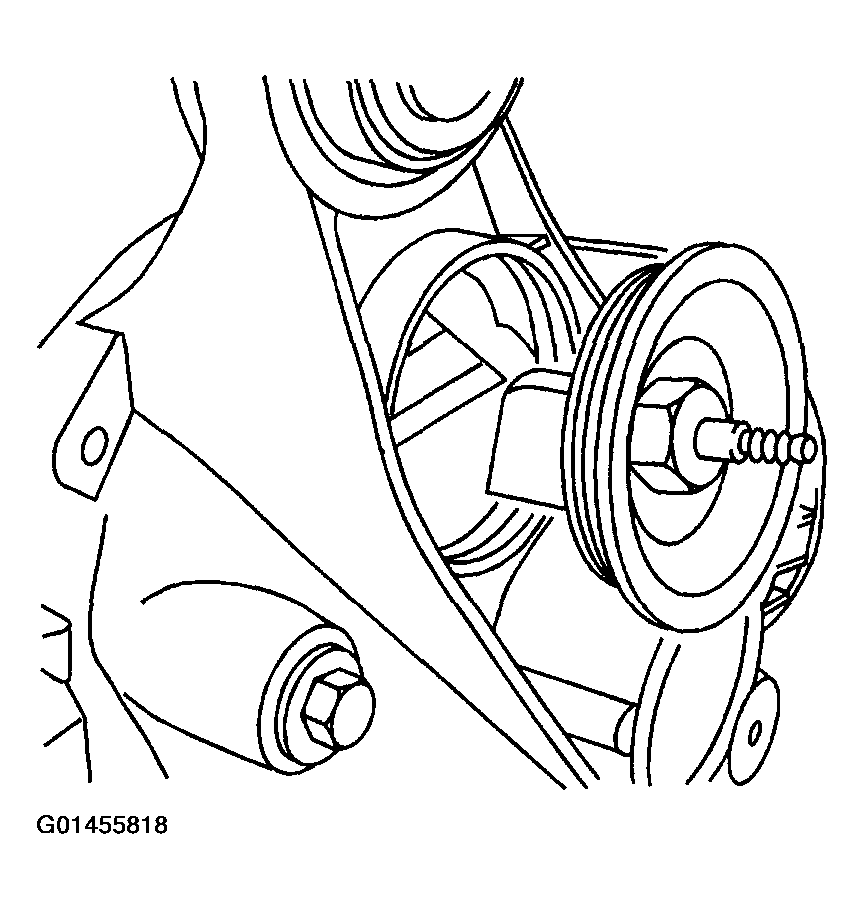

    Fig 2: Removing Vent Hose Connector From Differential Carrier Assembly
    G01455818Courtesy of GENERAL MOTORS CORP.
