Adjustment Procedure

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 GMC Sierra, 2002 Chevrolet Tahoe, and 2002 Chevrolet Suburban. However, it is still accessible from the selected car via links, so may be relevant.

Important:  Make sure all of the tools, the pinion bearings, and the pinion bearing cups are clean before proceeding.

  1. Lubricate the pinion bearings with axle lubricant. Use the proper fluid. Refer to Figure.
    2. IMPORTANT: The J 36601  uses two different measuring arms to measure the pinion depth. The J 36601-4  is used to measure the pinion depth for the 8.25 inch axle and the J 36601-3  is used to measure the pinion depth for the 9.25 inch axle.

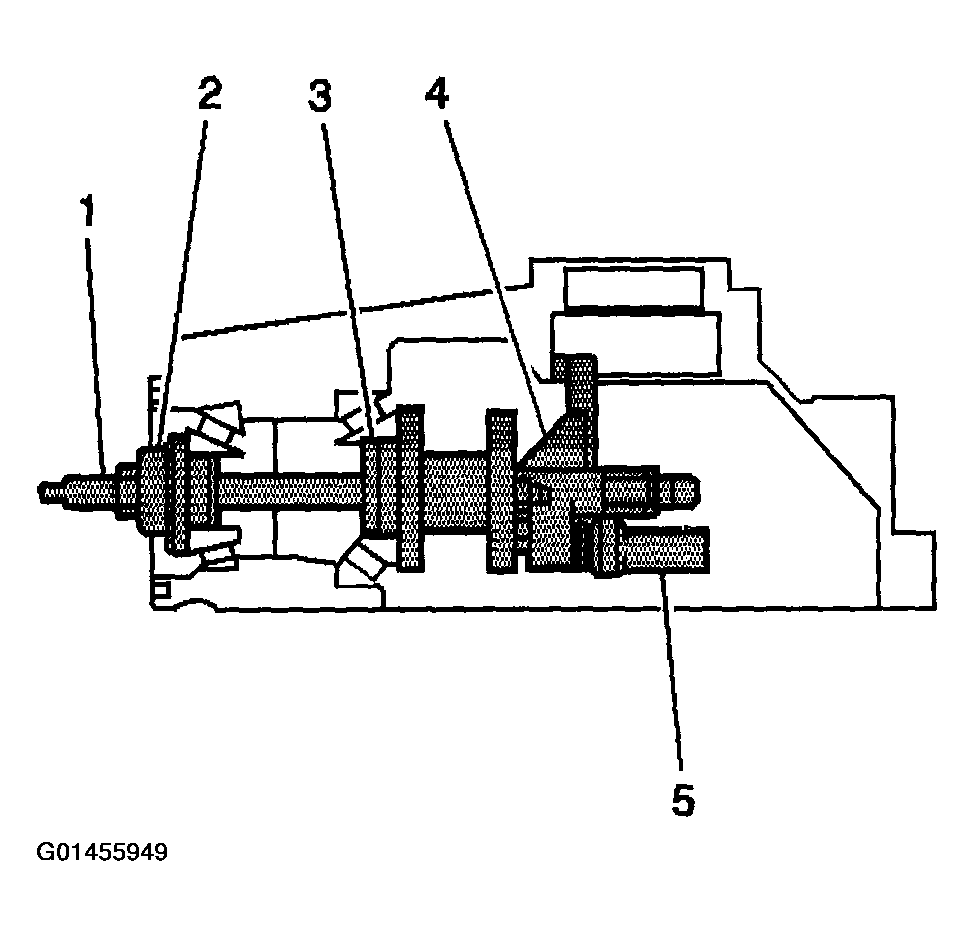

    Fig 1: Adjusting Pinion Depth
    G01455949Courtesy of GENERAL MOTORS CORP.
  2. Install the J 36601-4  or the J 36601-3  (4) to the J 36601-7  (1).
  3. Install the J 21777-35  for the 8.25 inch axle or the J 21777-8  for the 9.25 inch axle (3) to the J 36601-7  (1).
  4. Install the inner pinion bearing into the differential carrier case half.
  5. Insert the J 36601-7  (1) with the J 21777-35  or the J 21777-8  (3) through the inner pinion bearing and the differential carrier case half.
  6. Install the outer pinion bearing.
    7. IMPORTANT: Each end of the J 36601-5  is sized specifically for the 8.25 inch or the 9.25 inch outer pinion bearing. Ensure the correct end is being used when installing the J 36601-5  into the outer pinion bearing.
    NOTE: Refer to Fastener Notice in the Preface section.
  7. While holding the outer pinion bearing in position, install the J 36601-5  (2), the washer, and the nut to the J 36601-7  (1).
  8. While holding the J 36601-7  (1) stationary with a wrench, tighten the nut on the J 36601-7  (1).

    Tighten

    Tighten the nut until all of the end play is removed from the J 36601  .

  9. Rotate the assembly several times in both directions in order to seat the pinion bearings.
  10. While holding the J 36601-4  or the J 36601-3  (4) stationary, measure the rotating torque of the J 36601  using an inch-pound torque wrench.

    Specification

    The rotating torque of the J 36601  should be between 1.1-2.3 Nm (10-20 lb in).

  11. If the torque is less than 1.0 Nm (10 lb in), continue to tighten the nut on the J 36601-7  until a rotating torque of 1.1-2.3 Nm (10-20 lb in) is obtained.
  12. Install the adjustment screw and the lock nut of the J 29763  (2) to the J 36601-4  or the J 36601-3  .
    Fig 2: Using J 36601-3 & J 29763 To Measure Lowest Point In The Differential Side Bearing Bore
    GM864970
  13. Install the J 29763  to the adjustment screw and lock nut assembly.

    Tighten the lock nut to hold the J 29763  in place.

    14. IMPORTANT: The left side differential bearing adjuster assembly on the 9.25 inch axle must be removed prior to placing the J 36601-3  in the differential side bearing bore.
  14. Place the contact pad of the J 36601-4  or to the J 36601-3  into the differential side bearing bore.
  15. Adjust the J 29763  to the differential bearing bore by doing the following:
    1. Loosen the lock nut on the J 29763  .
    2. Place the contact pad of the J 36601-4  or the J 36601-3  onto the differential side bearing bore.
    3. With the contact pad of the J 36601-4  or the J 36601-3  touching the differential side bearing bore, push down on the J 29763  until the needle of the J 29763  has turned 3/4 of a turn clockwise.
  16. Rotate the J 36601-4  or the J 36601-3  (1) back and forth until the needle of the J 29763  (2) indicates the lowest point in the differential side bearing bore.
  17. At the lowest point of deflection, move the housing of the J 29763  until the needle indicates ZERO.
  18. Move the J 36601-4  or the J 36601-3  back and forth again to verify the zero setting. Adjust the housing of the J 29763  as necessary to set the needle to ZERO.
  19. After the ZERO setting is obtained and verified, grasp the J 36601-4  or the J 36601-3  (1) by the flats and move the J 36601-4  or the J 36601-3  out of the differential side bearing bore.
    Fig 3: Using J 36601-3 & J 29763 To Measure Thickness Of The Shim Needed In Order To Set The Depth Of The Pinion
    GM864974
    20. IMPORTANT: The unit of measurement for the J 29763  is in hundredths of a millimeter.
  20. The value indicated on the J 29763  (2) is the thickness of the shim needed in order to set the depth of the pinion.
  21. Select the shim that indicates the correct thickness. Measure the shim with a micrometer in order to verify that the thickness is correct.
  22. Remove the pinion depth setting tools.
  23. Remove the pinion bearings.
  24. Install the pinion shim between the drive pinion and the inner pinion bearing and assemble the differential carrier. Refer to Differential Carrier Assembly Assemble.

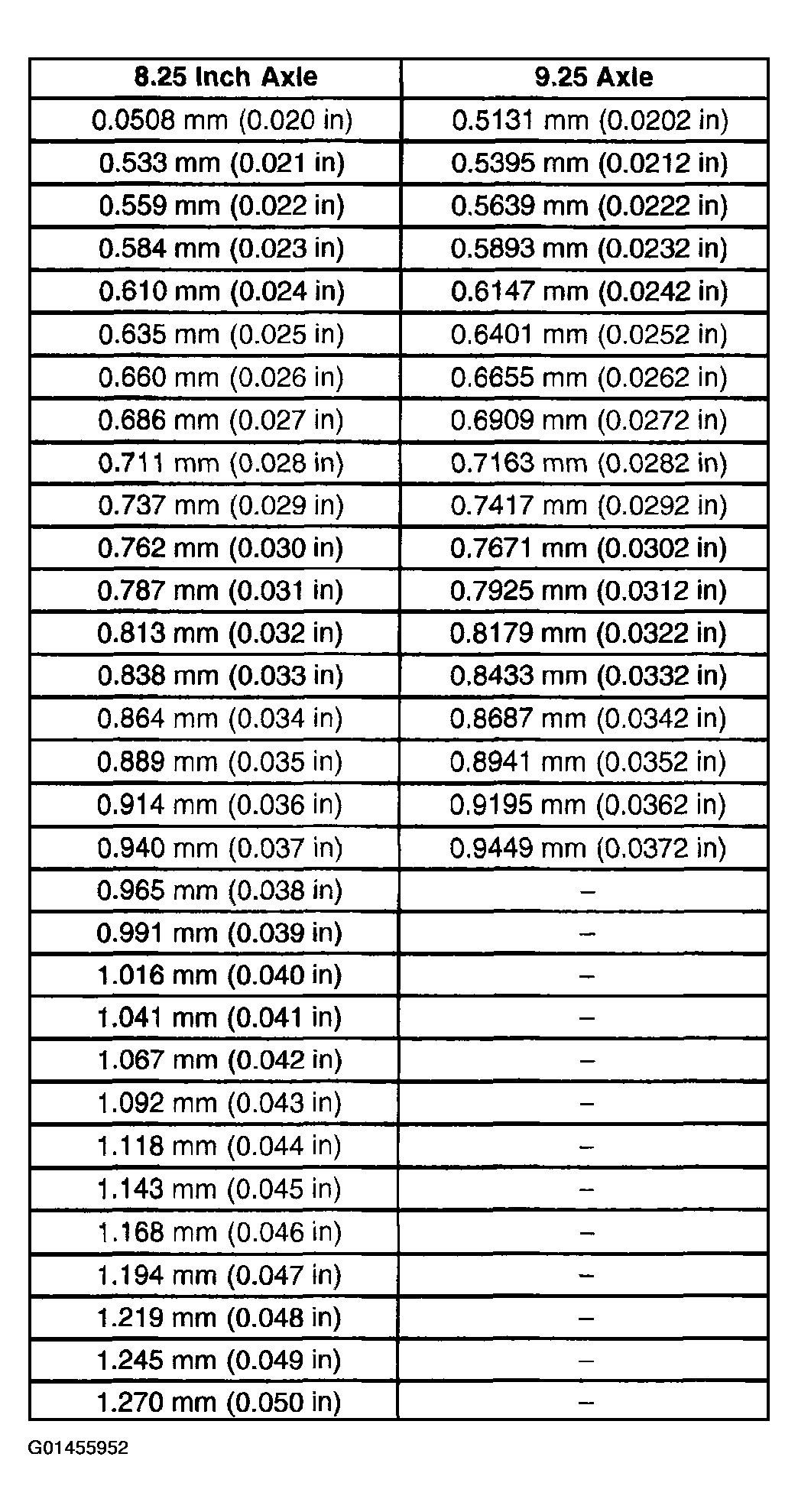

Fig 4: Differential Pinion Gear Shims Sizes
G01455952
