Removal Procedure

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 GMC Sierra, 2002 Chevrolet Tahoe, and 2002 Chevrolet Suburban. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle. Refer to LIFTING & JACKING THE VEHICLE .
  2. Remove the front differential carrier shield, if equipped. Refer to SHIELD REPLACEMENT .
  3. Clean the area around the front axle fill plug and the drain plug.
  4. Remove the fill plug.
  5. Remove the drain plug.
  6. Drain the fluid from the front differential carrier assembly.

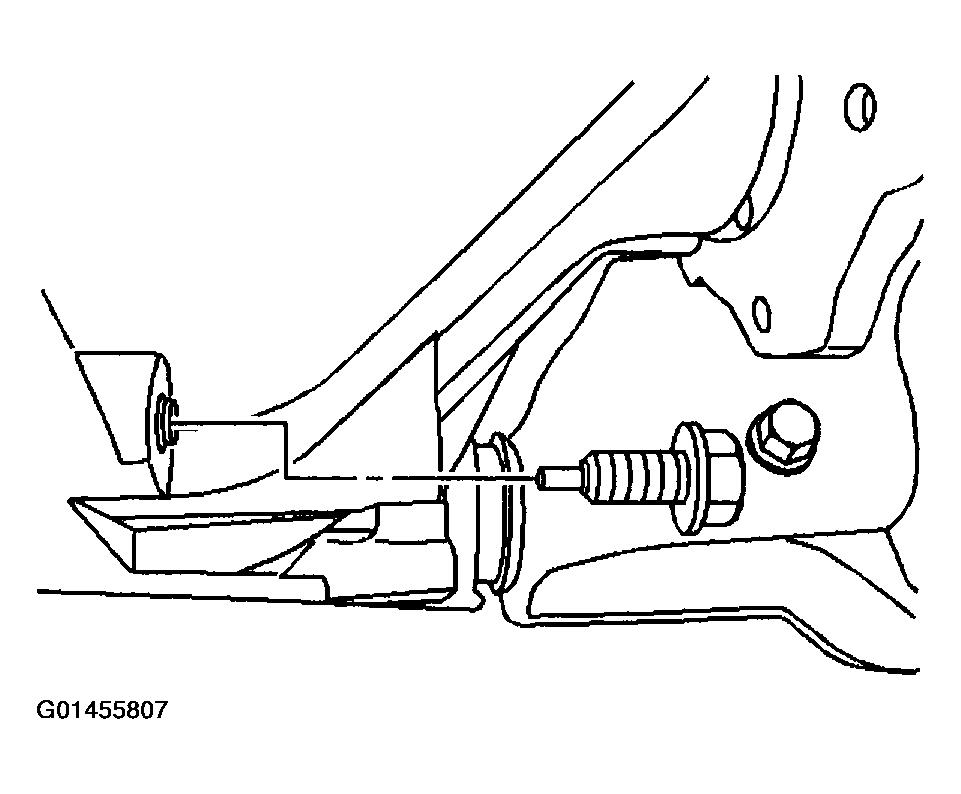

    Fig 1: Removing Drain Plug
    G01455807Courtesy of GENERAL MOTORS CORP.
