Installation Procedure

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 GMC Sierra, 2002 Chevrolet Tahoe, and 2002 Chevrolet Suburban. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to FASTENER NOTICE .
  1. Install the drain plug.

    Tighten

    Tighten the drain plug to 33 N.m (24 lb ft).

  2. Fill the differential carrier assembly with axle lubricant. Use the proper fluid.
  3. Install the fill plug.

    Tighten

    Tighten the fill plug to 33 N.m (24 lb ft).

  4. Install the front differential carrier shield, if equipped. Refer to SHIELD REPLACEMENT .
  5. Lower the vehicle.

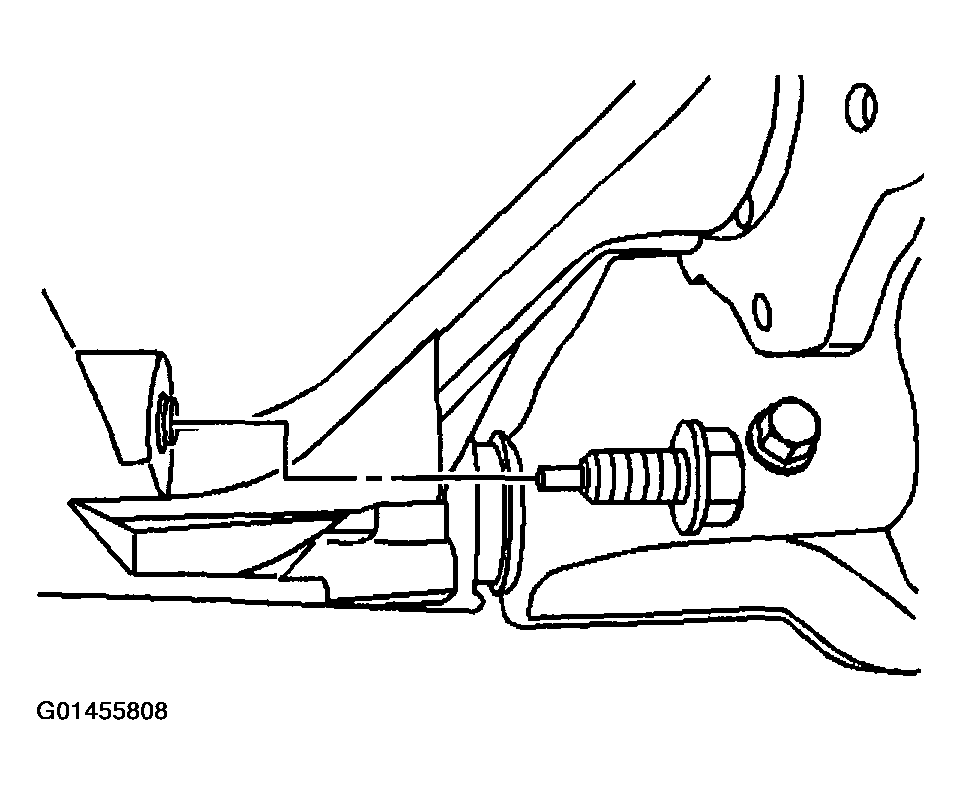

    Fig 1: Installing Drain Plug
    G01455808Courtesy of GENERAL MOTORS CORP.
