Lubricant Level Inspection - Front Drive Axle

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 GMC Sierra, 2002 Chevrolet Tahoe, and 2002 Chevrolet Suburban. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle. Refer to LIFTING & JACKING THE VEHICLE .
  2. Make sure the vehicle is level.
  3. Inspect the front axle for leaks. Repair as necessary.
  4. Remove the front differential carrier shield (if equipped). Refer to SHIELD REPLACEMENT  .
  5. Clean the area around the front axle fill plug.
  6. Remove the front axle fill plug (1).
  7. Inspect the oil level.

    Specification

    The oil level should be between 0-10 mm (0-0.375 in) below the fill plug opening.

  8. If the level is low, add oil until the level is even with the bottom edge of the fill plug opening. Use the proper fluid.
    NOTE: Refer to FASTENER NOTICE .
  9. Install the fill plug.

    Tighten

    Tighten the plug to 33 N.m (24 lb ft).

  10. Install the front differential carrier shield (if equipped). Refer to SHIELD REPLACEMENT .
  11. Lower the vehicle.

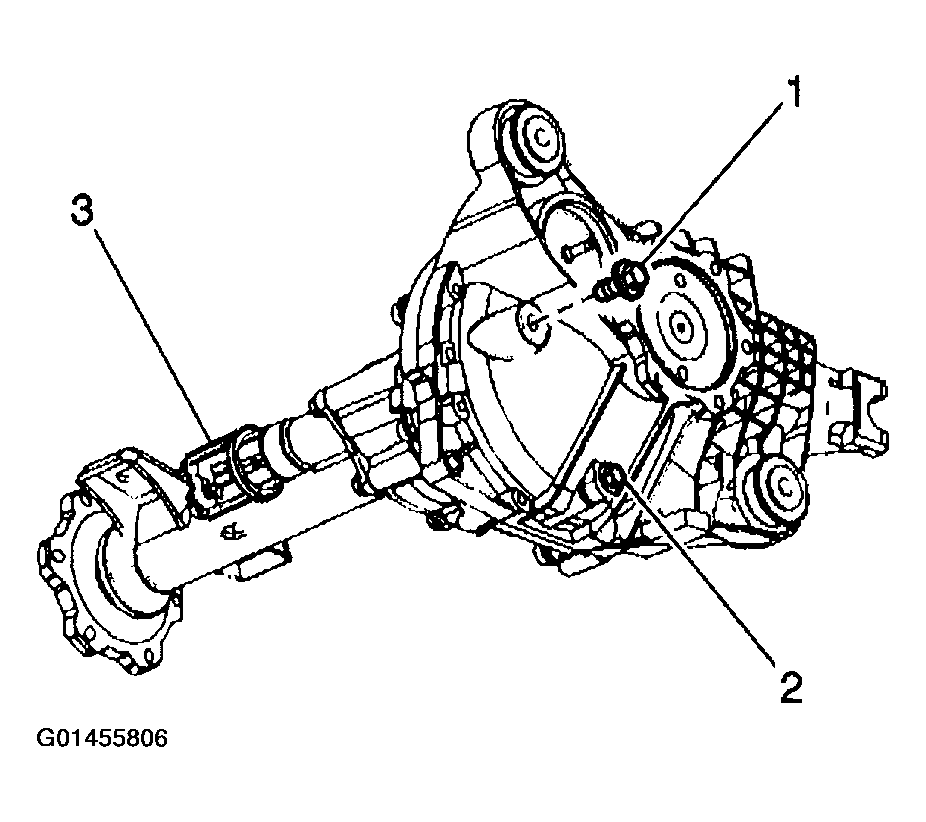

    Fig 1: Removing Front Axle Fill Plug
    G01455806Courtesy of GENERAL MOTORS CORP.
