Removal Procedure

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 GMC Sierra, 2002 Chevrolet Tahoe, and 2002 Chevrolet Suburban. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle. Refer to LIFTING & JACKING THE VEHICLE .
  2. Remove the front differential carrier shield, if equipped. Refer to SHIELD REPLACEMENT .
  3. Disconnect the electrical connector from the actuator (3).
  4. Remove the electric motor actuator (3) by turning the actuator counterclockwise.

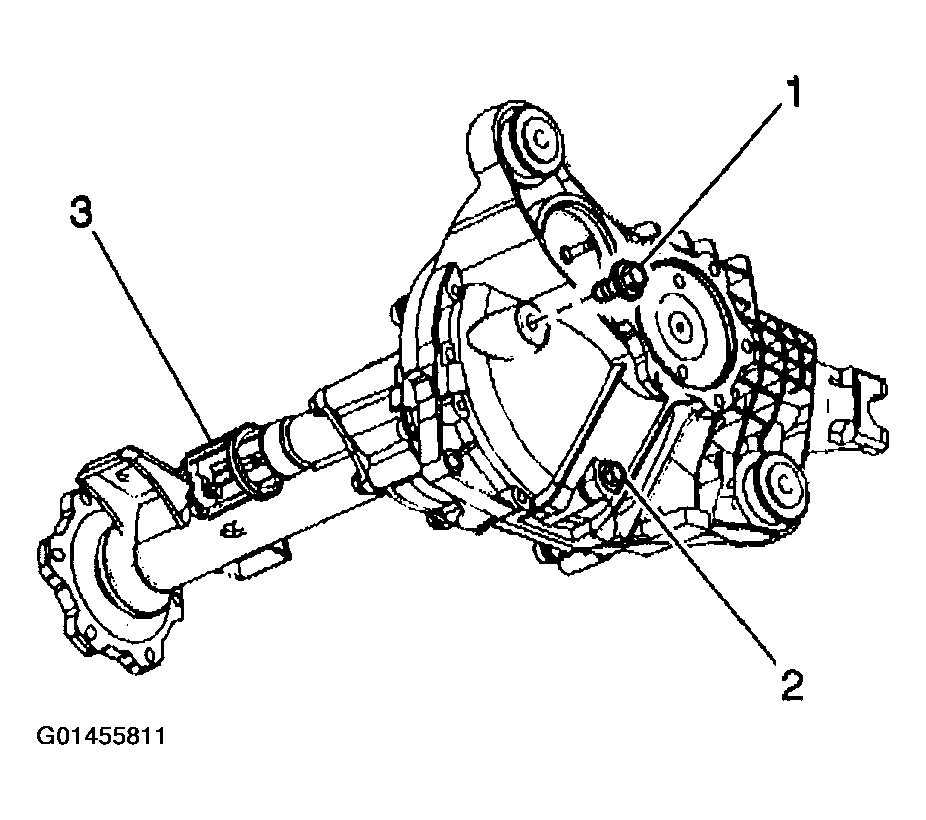

    Fig 1: Disconnecting Electrical Connector From Actuator
    G01455811Courtesy of GENERAL MOTORS CORP.
