Installation Procedure

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 GMC Sierra, 2002 Chevrolet Tahoe, and 2002 Chevrolet Suburban. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply sealant GM P/N 12346004 (Canadian P/N 10953480) to the threads of the electric motor actuator.
    NOTE: Refer to FASTENER NOTICE .

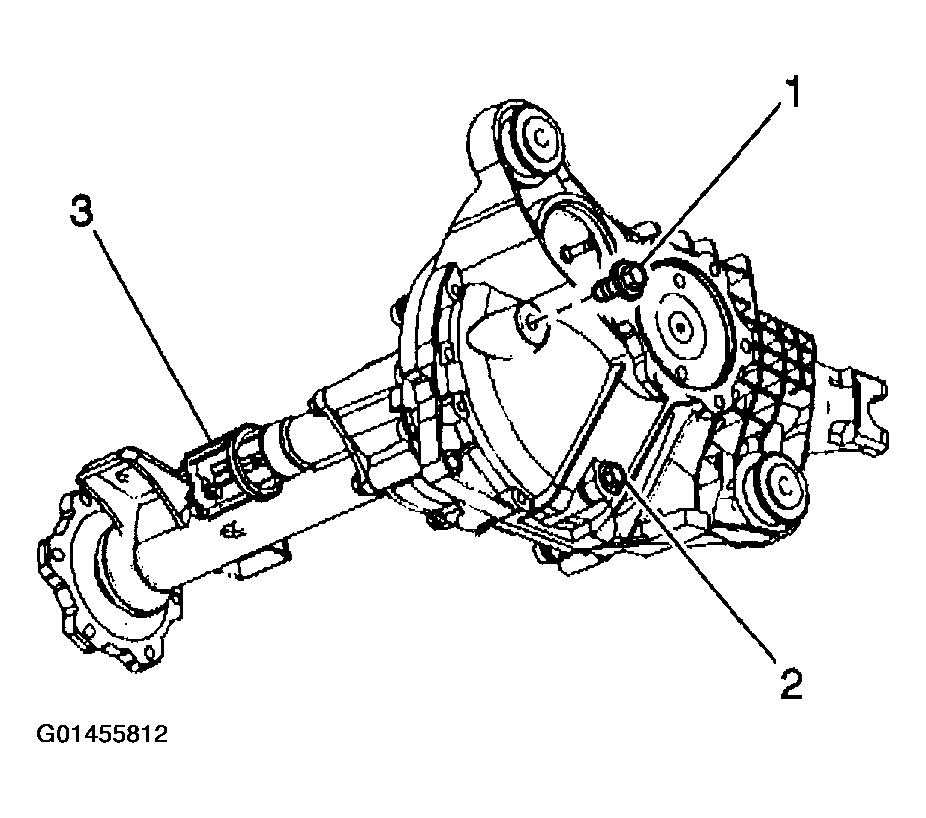

    Fig 1: Connecting Electrical Connector To Actuator
    G01455812Courtesy of GENERAL MOTORS CORP.
  2. Install the electric motor actuator (3).

    Tighten

    Tighten the actuator to 20 N.m (15 lb ft).

  3. Connect the electrical connector to the actuator.
  4. Install the front differential carrier shield, if equipped. Refer to SHIELD REPLACEMENT .
  5. Lower the vehicle.
