Removal Procedure

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 GMC Sierra, 2002 Chevrolet Tahoe, and 2002 Chevrolet Suburban. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the differential carrier assembly. Refer to DIFFERENTIAL CARRIER ASSEMBLY REPLACEMENT .
  2. Remove the upper differential carrier assembly bushing by performing the following steps:
    1. Install the J 36616-2  (1), the J 33791-1  (2), the thrust bearing (3), the J 21474-18  (4), and the forcing screw as shown  .
    2. Remove the upper differential carrier assembly bushing by holding the forcing screw and slowly tightening the J 21474-18  .

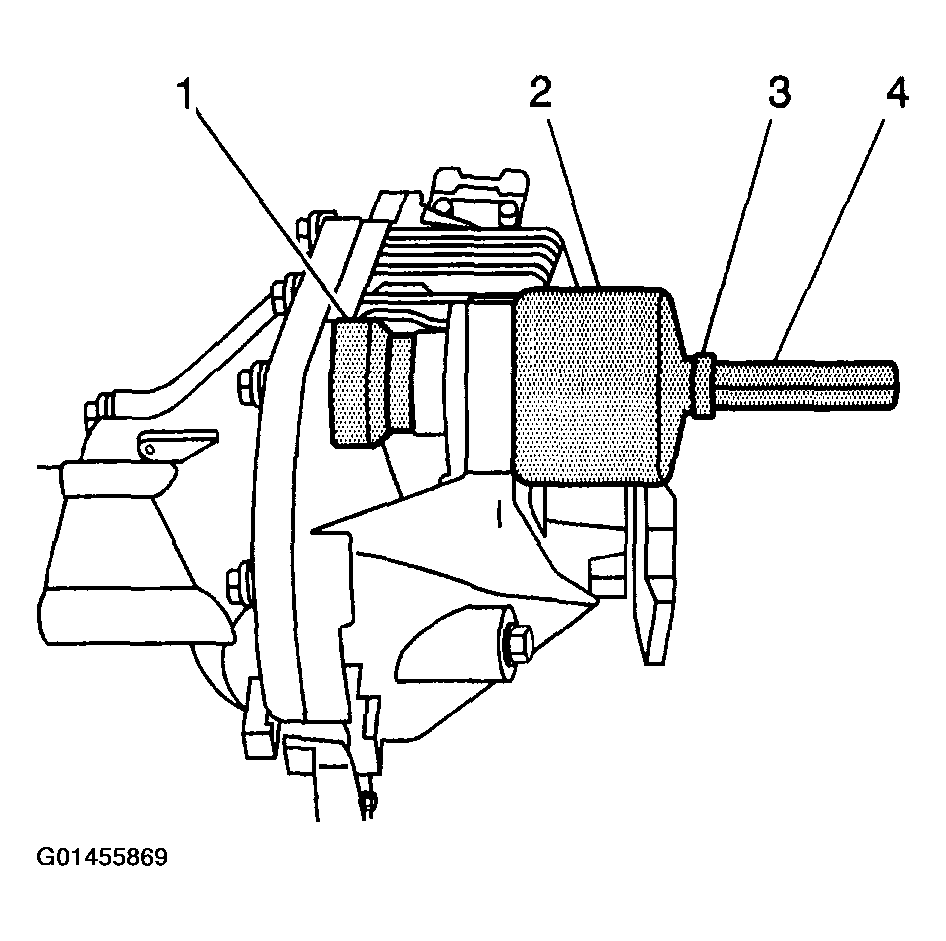

    Fig 1: Removing Upper Differential Carrier Assembly Bushing
    G01455869Courtesy of GENERAL MOTORS CORP.
  3. Remove the lower differential carrier assembly bushing by performing the following steps:
    1. Install the J 21474-18  (1), the thrust bearing (2), the J 33791-1  (3), the J 36616-2  (4), and the forcing screw as shown.
    2. Remove the lower differential carrier assembly bushing by holding the forcing screw and slowly tightening the J 21474-18  .

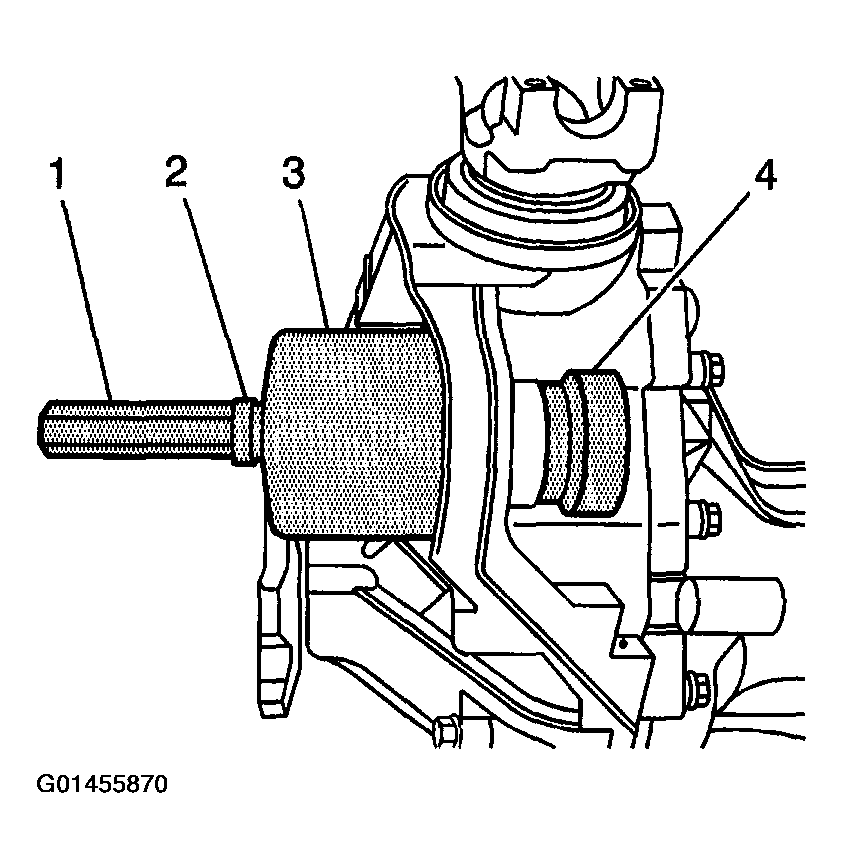

    Fig 2: Removing Lower Differential Carrier Assembly Bushing
    G01455870Courtesy of GENERAL MOTORS CORP.
